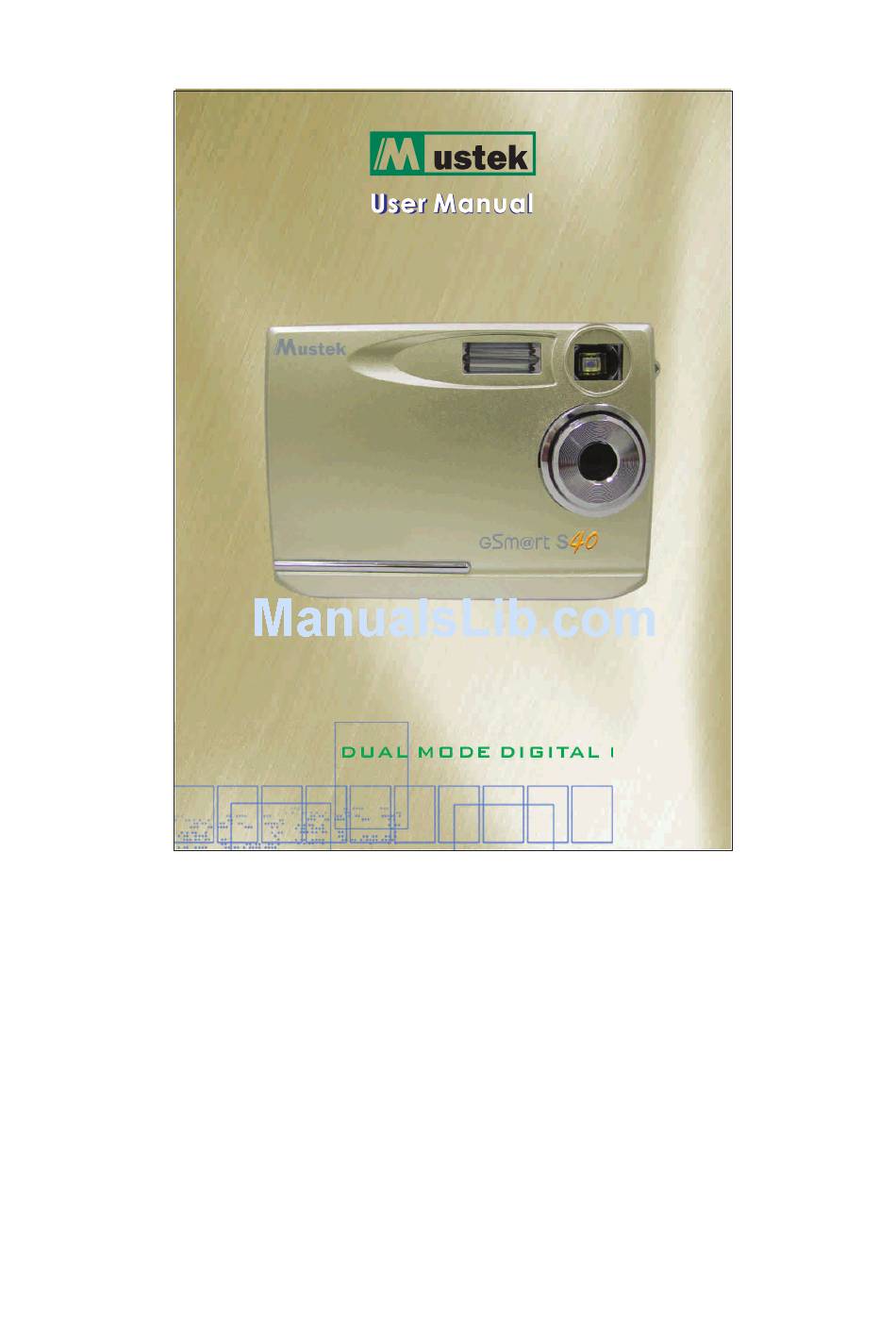

  • Page 1 DUAL MODE DIGITAL CAMERA...

  • Page 2: Table Of Contents

    Table of Contents Welcome...1. Package Contents... 2. -Package Contents... 2. -System Requirements... 3. -Identifying The Parts... 4. -Camera Settings... 5. Powering Up... 6. -Battery Installation -Turning the Power ON/OFF -Sleep Mode Taking & Playback Pictures on the Camera...7. Taking & Playback Videos on the Camera...8. Driver and Software Installation...9.

  • Page 3: Welcome

    Welcome Thank you for choosing the Mustek GSm@rt S40 Digital Camera. This camera is not resistant to water and should not be used outdoors in snow or rain. If accidentally dropped in water, please quickly dry it in sunlight or an air-blower.

  • Page 4: Package Contents

    Package Contents Digital Camera Getting Started Guide Installation CD (including camera drivers, Strap software and User's Manual) USB Cable Video Cable Carry Bag...

  • Page 5: System Requirements

    System Requirements PC/Notebook computer with Pentium 166 Mhz minimun processor and USB port. Windows 98SE/ME/2000/XP, CD- ROM drive, color monitor, mouse and keyboard. NOTE: For transferring still images or for video conferening,your computer must have a modem, and communication software and an internet connection.

  • Page 6: Identifying The Parts

    Identifying The Parts Menu OSD Menu ON / OFF DISPLAY LCD, Status Icons ON / OFF Up / Zoom in / Previous Menu Enter / Playback Down / Zoom out / Next...

  • Page 7: Camera Settings

    Camera Settings LCD Screen Display Definition 2368X1776 2048X1536 1600X1200 1280X960...

  • Page 8: Battery Installation

    Power Up Battery Installation 1. Open the battery cover. 2. Insert batteries in correct polarity(+ and -) as shown on the inside of the battery door. 3. Close the battery cover. Turning the Power ON/OFF 1. Push the Power button to turn the camera on. 2.

  • Page 9: Taking & Playback Pictures On The Camera

    Taking & Playback Pictures on the Camera Taking Pictures 1. Power on the Camera. By default, the camera will be in DSC (picture) mode every time it is powered on. 2. Frame your target through the LCD display or through the viewfinder. 3.

  • Page 10: Taking & Playback Videos On The Camera

    Taking & Playback Videos on the Camera Taking Videos 1. Power on the camera. 2. Hit the "Menu" button and select "MODE". 3. Choose AVI and hit the "ENTER" button. 4. Press the Shutter button to start recording. 5. Press the Shutter button again to stop recording.

  • Page 11: Driver And Software Installation

    Driver and Software Installation 1. Insert Installation Disc and Select "MEGA PIXEL DSC Driver" . 2. Click "Next" . 3. Click "Next" . 4. Click "Install" . 5. Click "Finsh" .

  • Page 12: Install Arcsoft Photoimpression 4.0

    Install ArcSoft PhotoImpression 4.0 1. Insert installation CD into your PC's CD-ROM drive. 2. Introduction screen will appear automatically. 3. Click "ArcSoft PhotoImpression 4.0". 4. Follow on-screen instructions. Click "Next" Click "Yes" Click "Next" Click "Finish" 5. Re-starting your computer is recommended.

  • Page 13: Install Arcsoft Photobase 3.0

    Install ArcSoft PhotoBase 3.0 1. Insert installation CD into your PC's CD-ROM drive. 2. Introduction screen will appear automatically. 3. Click "ArcSoft PhotoBase 3.0". 4. Follow on-screen instructions. Click "Next" Click "Yes" Click "Next" Click "Finish" 5. Re-starting your computer is recommended.

  • Page 14: Install Arcsoft Videoimpression 1.6

    Install ArcSoft VideoImpression 1.6 1. Insert installation CD into your PC's CD-ROM drive. 2. Introduction screen will appear automatically. 3. Click "ArcSoft VideoImpression 1.6 ". 4. Follow on-screen instructions. Click "Next" Click "Yes" Click "Next" Click "Finish" 5. Re-starting your computer is recommended.

  • Page 15: Install Quicktime Player 6

    Install QuickTime Player 6 1. Insert installation CD into your PC's CD-ROM drive. 2. Introduction screen will appear automatically. 3. Click "QuickTime Player". 4. Follow on-screen instructions. Click "Next" Click "Yes" Click "Next" Click "Finish" 5. Re-starting your computer is recommended.

  • Page 16: Transferring Images

    Transferring Images When connected to a computer in Mass Storage mode, the camera will appear as a Removable Disk in the computer. Files can then be copied from the camera to the computer. (Turn on the camera and connect with USB cable . The camera will set to "Mass Storage"...

  • Page 17: Downloading Photo Via "Photoimpression 4.0

    Transferring Images (Cont.) Downloading photo via "PhotoImpression 4.0" 1. Double-click the "PhotoImpression 4.0" icon on the desktop. 2. PhotoImpression 4.0 introduction screen will appear. 3. Click "From Folder" button. 4. Click "Browse". 5. Click "Removable Disk DCIM" and OK. 6. Use editing tools available on-screen to modify image(s).

  • Page 18: Photo And Sharing Management Using Photobase 3.0

    Photo and Sharing Management Using PhotoBase 3.0 1. Double-click the "PhotoBase 3.0" icon on the desktop. 2. PhotoBase 3.0 introduction screen will appear. 3. Open Album menu bar. 4. Select "Create New" and enter file name. 5. Open Album menu bar and select "Add Image". 6.

  • Page 19: Video Playback Using Videoimpression 1.6

    Video Playback Using VideoImpression 1.6 (Please change camera to PC Camera Mode) MENU \ Mode\ PC Camera 1. Double-click the "VideoImpression 1.6" icon on the desktop. 2. VideoImpression 1.6 introduction screen will appear. 3. Click "New" button. 4. Click "Capture". 5.

  • Page 20: Playing Movie Clips Using Quicktime Player 6

    Playing Movie Clips Using QuickTime Player 6 (Please change camera to Mass Storage Mode) MENU \ Mode\ Mass Storage 1. Double-click the "QuickTime Player" icon on the desktop. 2. "QuickTime Player" introduction screen will appear. 3. Open "File" menu bar and Select "Open Movie in New Player".

  • Page 21: Uninstall Application Programs

    Uninstall Application Programs Uninstalling ArcSoft PhotoImpression 4.0 1. Proceed to Start > Programs > ArcSoft> PhotoImpression 4.0 >Uninstall. 2. Follow on-screen instructions to uninstall software. Uninstalling ArcSoft PhotoBase 3.0 1. Proceed to Start > Programs > ArcSoft> PhotoBase 3.0 >Uninstall. 2.

  • Page 22: Specifications

    Specifications Image Sensor CMOS 2048 x 1536 pixels Lens Specification F2.8, Sensor area 1/2" f=8.45mm, view angle 53.2 Microsoft Windows 98SE/2000/ME/XP White Balance Auto/Manual(day light/cloudy/tungsten/fluorescent) Exposure Control Auto Frame Rate-Video Mode QVGA: 320 x 240 pixels (25-30 fps) Resolution 2368 x 1776 pixels 2048 x 1536 pixels 1600 x 1200 pixels 1280 x 960 pixels...
