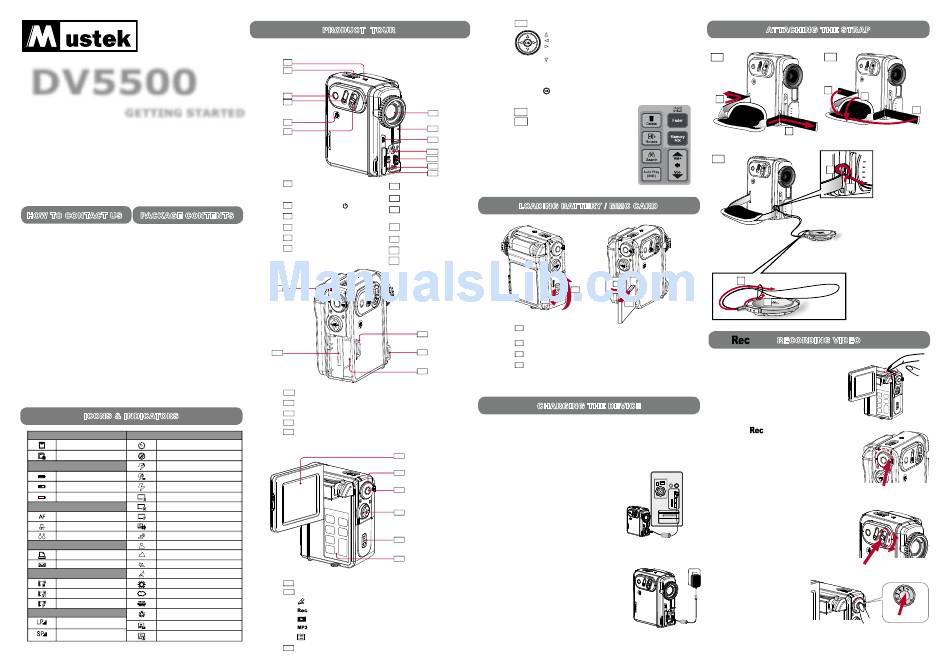

Mustek DV DV 5500 Getting Started Manual

82-149-00050
DV5500

GETTING STARTED

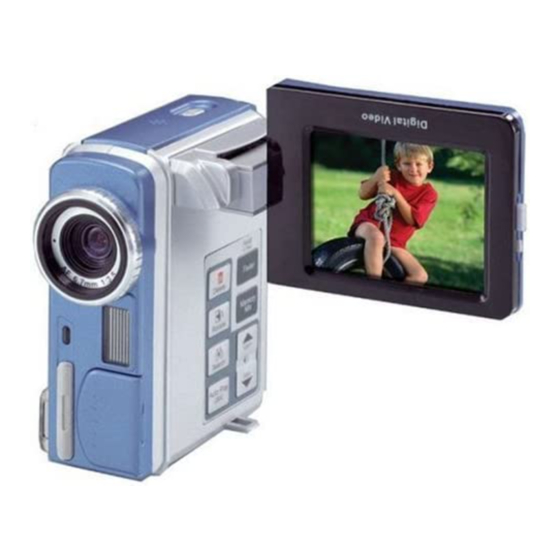

Thank you for purchasing the Mustek DV5500 Multi-functional Digital
Video.
We have included this convenient Getting Started to help with the basic
operations. For more details on the different functions and operations,
please refer to the User Guide.
HOW TO CONTACT US PACKAGE CONTENTS
(Dock station not included)
Website:
• Installation CD
http://www.mustek.com
• Video Studio CD
Customer Service:
• Photo Express CD
(General Info)
• User Guide
Email: cservices@mustek.com
• Getting Started
Fax: (949) 788-3670
• Strap for Lens Cover
Technical Support:
• Strap for Hand
Email: tsupport@mustek.com
• DV Bag
Phone: (949) 788-3600
• Tripod
Address:
• Lens Cover
15271 Barranca Parkway,
• Li-ion Battery
Irvine, CA 92618
• Power Adapter
• 32MB MMC Card
• USB Cable
• AV Cable
• Earphone
ICONS & INDICATORS
Card Status Picture Taking
With Card Self-Timer
Card Lock Flash Strobe OFF
Battery Status
Auto Flash Strobe
Battery Full Red Eye Reduction
Battery Low Flash Strobe ON
Out of Battery Economic Resolution
Auto Focus Normal Resolution
Auto Focus Fine Resolution
Macro Attach Voice
Normal Backlight Compensation
Mark for DPOF
Portrait
Print mark Landscape
E-mail mark Sports
Movie Recording
Night Portrait
Economic Resolution Daylight
Normal Resolution Cloudy
Fine Resolution Fluorescent
Audio Set
Tungsten
Long Play Record
Quick Review
Standard Play Record
Date Display
1
PRODUCT TOUR

Front View

1
2
3
4
5
6
10
11
12
13
1
Built-in Microphone
7
Lens
Do not touch while recording.
8 Flash strobe
2 Power button
9
Status LED
3
AE-Lock button
indicator
4
10 Earphone jack
AF/Shutter
5
Speaker
11 USB port
6
Zoom
12
AV OUT jack
13
DC IN jack

Back View

14
18
15 17
16
14
Power/Charge LED indicator
15
SD/MMC card slot
16 Battery slot
17
Hook for strap
18 Hook for strap
Side View
19
20
21
22
23
24
19 LCD screen
20 Mode dial
Record Voice
Take Picture/Record Video
Playback
MP3
Menu
21
Record button
22 Direction Control button
Back Light [On/Off]/Playback Zoom/ Stop
Self-Timer [On/Off]/F.Bwd/Previous
Flash [Off/On/Auto/Red Eye]/F.Fwd/Next
Display
Record: OSD off / LCD off / LCD on & OSD on
Playback: Single / OSD off / LCD off / LCD on &
Thumbnail
OK / Play / Pause / Exit (Playback Zoom)
23 Battery/SD/MMC slot cover
7
24 Operation panel
8
9
2

LOADING BATTERY / MMC CARD

B
A
A Slide the Battery/SD/MMC cover in the direction of the arrow
(down).
B Lift the Battery/SD/MMC slots cover up.
C Insert the Battery into the battery slot.
Insert the MMC memory card into the SD/MMC card slot.
D
Note1: When the MMC memory card is correctly inserted a "click" sound will be heard.
Note2: The device can only work with a MMC card inserted.
3

CHARGING THE DEVICE

There are three ways to charge this device. First, charge it via USB
cable. Second, charge it via AC adapter. Third, charge it via the Dock
Station (optional).
Charging the device via USB cable
1. Connect the device to a computer with the USB cable provided in
the package.
2.
The Charge Indicator illuminates in red
and starts charging. If the battery is fully
charged, the Charge Indicator will be
turned off automatically. (It takes about 3
hours to have it fully charged.)
Charging the device via AC Adapter
1. Connect the AC adapter to the DC IN jack on the device and the
power plug to a power outlet.
2. The Charge Indicator illuminates in red and
starts charging. Turning on the device during
the charging stage will lengthen the charge
time.
Charging the device via Dock Station (Optional)
Please refer to the Dock Station Getting Started for more detail.
4

ATTACHING THE STRAP

1
B
A
3
B
D
A
C
5

RECORDING VIDEO

1.
Power ON the device.
(Power indicator will light up in
Green color.)
2. Switch to (video/picture) on the Mode dial.
3. Glide to T (zoom-in) / W (zoom-out) to frame your video.
4. Press Record to start recording.
5. Press Record again to stop recording.
2
B
C
A
C
D
