V8
X-PSU
V8
X-
SERIES POWER SUPPLY UNIT
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity X-PSU V8.
V8
The X-PSU V8 is a high quality power supply unit designed to complement the X-
series components. It will
V8
conveniently drive up to four X-
series components from a single mains point with no compromise in
performance.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If you have any questions about your audio system,
Please consult your dealer who is there to help and advise.
Advertisement
Table of Contents
Related Manuals for Musical Fidelity X-PSUV8 X-V8
Summary of Contents for Musical Fidelity X-PSUV8 X-V8
-
Page 1: Instructions For Use
SERIES POWER SUPPLY UNIT INSTRUCTIONS FOR USE Thank you for purchasing the Musical Fidelity X-PSU V8. The X-PSU V8 is a high quality power supply unit designed to complement the X- series components. It will conveniently drive up to four X- series components from a single mains point with no compromise in performance. -
Page 2: Table Of Contents
X-PSU PAGE Safety information General advice Item disposal information Installation Facilities and connection Power supply problems? Power supply specifications Manual history Issue 1 Safety information Installation precautions User information EU disposal information Introduction Installation Connections Cleaning Illustrations - front and rear panels... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
Do not remove any covers or try to gain access to the inside. There are no internal adjustments or fuses you can replace yourself. Refer all service work to an authorised Musical Fidelity agent. Note: Unauthorised opening of the equipment will invalidate any warranty claim. -
Page 5: Item Disposal Information
X-PSU DISPOSAL The crossed out wheeled bin label that appears on the back panel o f the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner. -
Page 6: Installation
CONNECTIONS Outputs: With the unit switched off, connect your components to the DIN sockets, on the back panel. Once all components are connected to the power supply unit, wire them as required with interconnect cables, and check wiring. Connect the unit to the mains using supplied lead. -
Page 7: Facilities And Connection

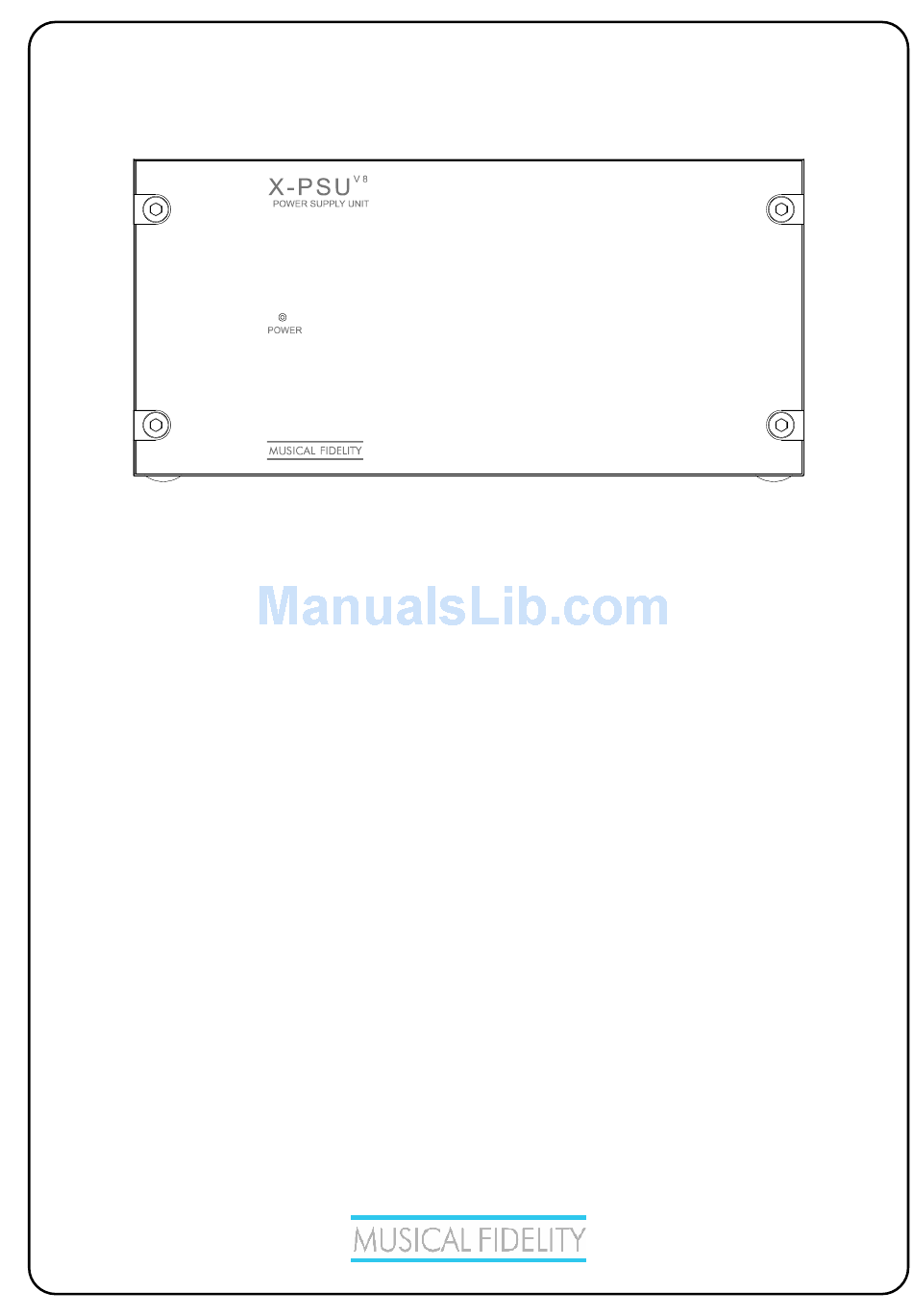

X-PSU FACILITIES AND CONNECTION FRONT PANEL 1. POWER Indicator LED REAR PANEL 2. MAINS power switch 4. X independent power outlet sockets 3. IEC MAINS Input Page 7 of 10 Issue 1... -
Page 8: Power Supply Problems
No power when POWER button is pressed No response from connected component(s) If none of these actions affect a cure, please contact your dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the Issue 1 POWER SUPPLY PROBLEMS? -
Page 9: Power Supply Specifications
9.3 inches deep including terminals (total 320mm, 12.6 inches with plugs in) 10A IEC Mains lead Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 9 of 10... -
Page 10: Manual Revision
X-PSU MANUAL REVISION RELEASE DATE CHANGES Issue 1 October 2007 Page 10 of 10 Issue 1...
