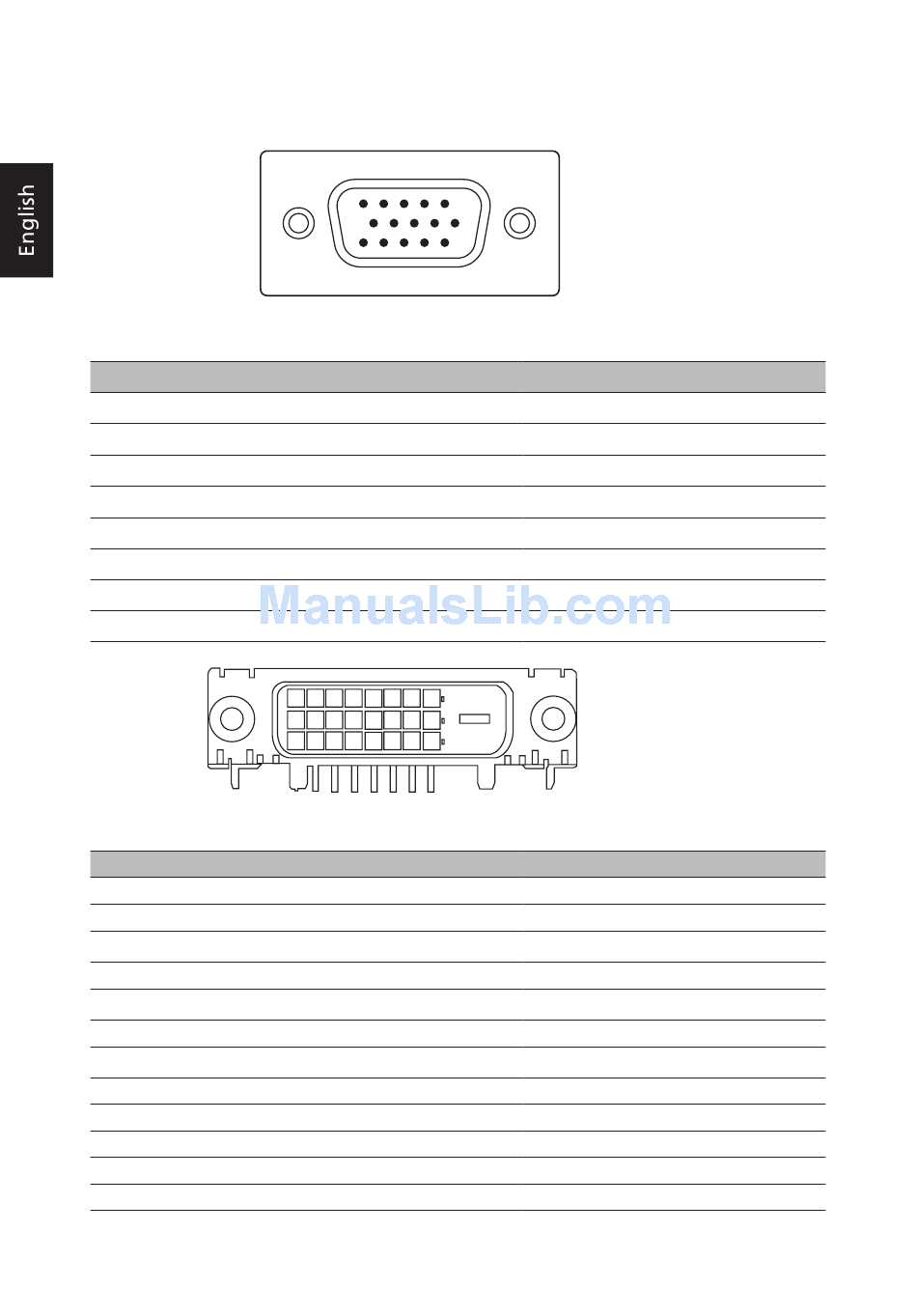

Connector pin assignment
15-pin color display signal cable
PIN No.
Description
1
Red
2
Green
3
Blue
4
Monitor ground
5
DDC-return
6
R-ground
7
G-ground
8
B-ground
24-pin color display signal cable*
PIN No.
1
TMDS data 2-
2
TMDS data 2+
3
TMDS data 2/4 shield
4
NC
5
NC
6
DDC clock
7
DDC data
8
NC
9
TMDS data 1-
10
TMDS data 1+
11
TMDS data 1/3 shield
12
NC
4
1
6
11
Description
5
10
15
PIN No.
Description
9
+5 V
10
Logic ground
11
Monitor ground
12
DDC-serial data
13
H-sync
14
V-sync
15
DDC-serial clock
PIN No.
13
NC
14
+5 V power
15
GND (return for +5 V hsync.vsync)
16
Hot-plug detection
17
TMDS data 0-
18
TMDS data 0+
19
TMDS data 0/5 shield
20
NC
21
NC
22
TMDS clock shield
23
TMDS clock+
24
DDC TMDS clock-
Description
