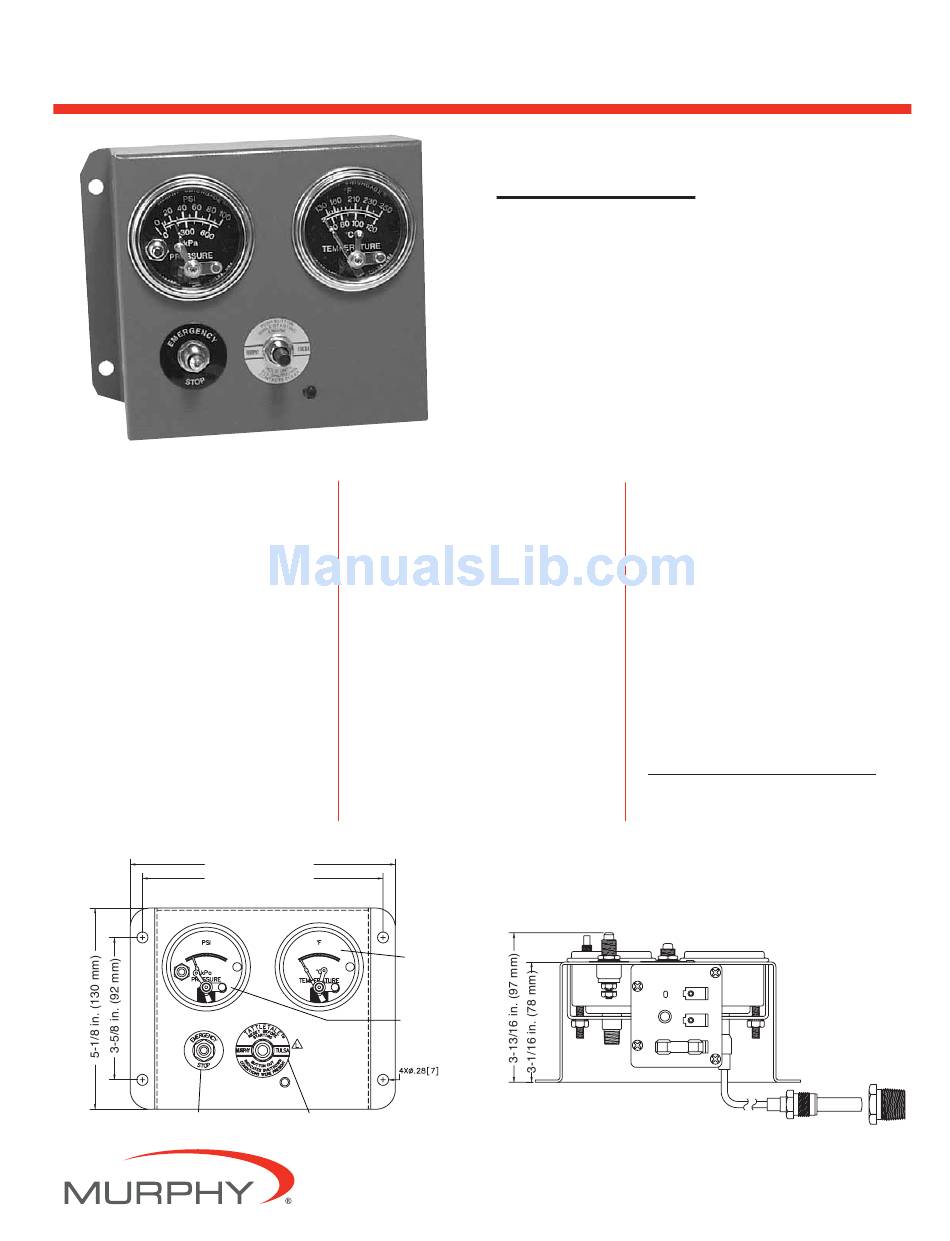

Murphy Swichgage WD300 Series Specification Sheet

Swichgage
Open Back for Diesel Engines
WD300-LV
Description
WD300 Series

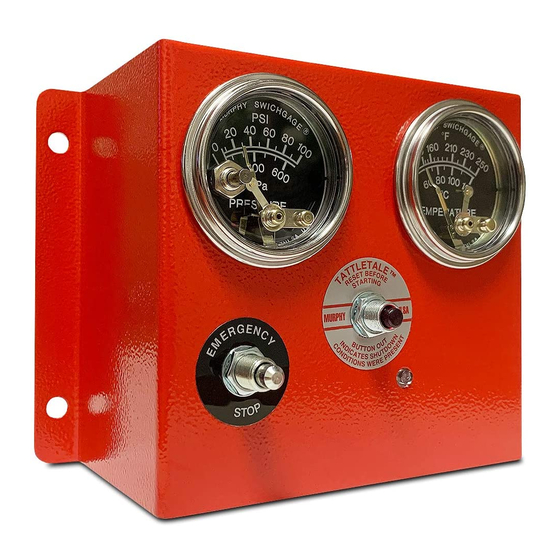

The universally applicable WD300 Series
panels are the ideal control solution for a
wide variety of diesel engines without shut-
down solenoid in the injection pump.
The standard WD300 Series panel includes
basic engine protection for low oil pressure
and high coolant temperature. It also includes
Murphy's SV Series solenoid fuel shut-off
valve, (see bulletin SV-99026B).
WD300LV Models
For engines that have the fuel shut-off sole-
noid built into the injection pump. This model
also applicable to battery ignition engines.
6-3/4 in. (171 mm)
6-1/8 in. (156 mm)
PB128S Emergency
Stop Push Button
® Shutdown Panels with
Panel Kits Include:
• Low Lube Oil Pressure Swichgage
instrument.
• High Coolant/ Temperature Swichgage
instrument.
• 117PH Magnetic Switch.
• SV Series Solenoid Fuel Shutoff Valve.
• PB128S Emergency Stop Push Button.

Specifications

Low Lube Oil Pressure SWICHGAGE
• 0-100 psi (0-689 kPa) [0-6.89 bar]
• 1/8 NPT process connection
High Coolant SWICHGAGE
• 130-250°F (54-121°C)
• 48 in. (1.2 m) capillary
20T250-4-1/2
Temperature
Swichgage
20P100
Oil Pressure
Swichgage
117PH Magnetic Switch
WD-03061B page 1 of 2
WD300 Series
■
Universal Design Ideal for Diesel Engines
Without Fuel Solenoid Built Into the
Injection Pump
■
Swichgage Instruments for Low Oil
Pressure, High Coolant Temperature
■
Includes Fuel Solenoid Shutdown Valve
:
®
® :
Dimensions (all Models)
NOTE: This is an standard schematic. If non-standard components
are specified, this schematic may not exactly reflect your panel.
®
®
Catalog Section 30
• 1/2 NPT process connection
117PH Magnetic Switch
SV Series Solenoid Fuel Shutoff Valve:
12 or 24 volt (specify)
Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
Shipping Dimensions:
8.5 x 5.25 x 5.5 in. (216 x 133 x 140 mm).
Warranty
A limited warranty on materials and workmanship is
given with this FW Murphy product. A copy of the
warranty may be viewed or printed by going to
www.fwmurphy.com/support/warranty.htm
WD-03061B
Revised 04-06
1/2-14 NPT
Adapter Nut
shipped loose
