Murphy PVS-5 Installation Instructions

PVS-5 Power Supply – Installation Instructions

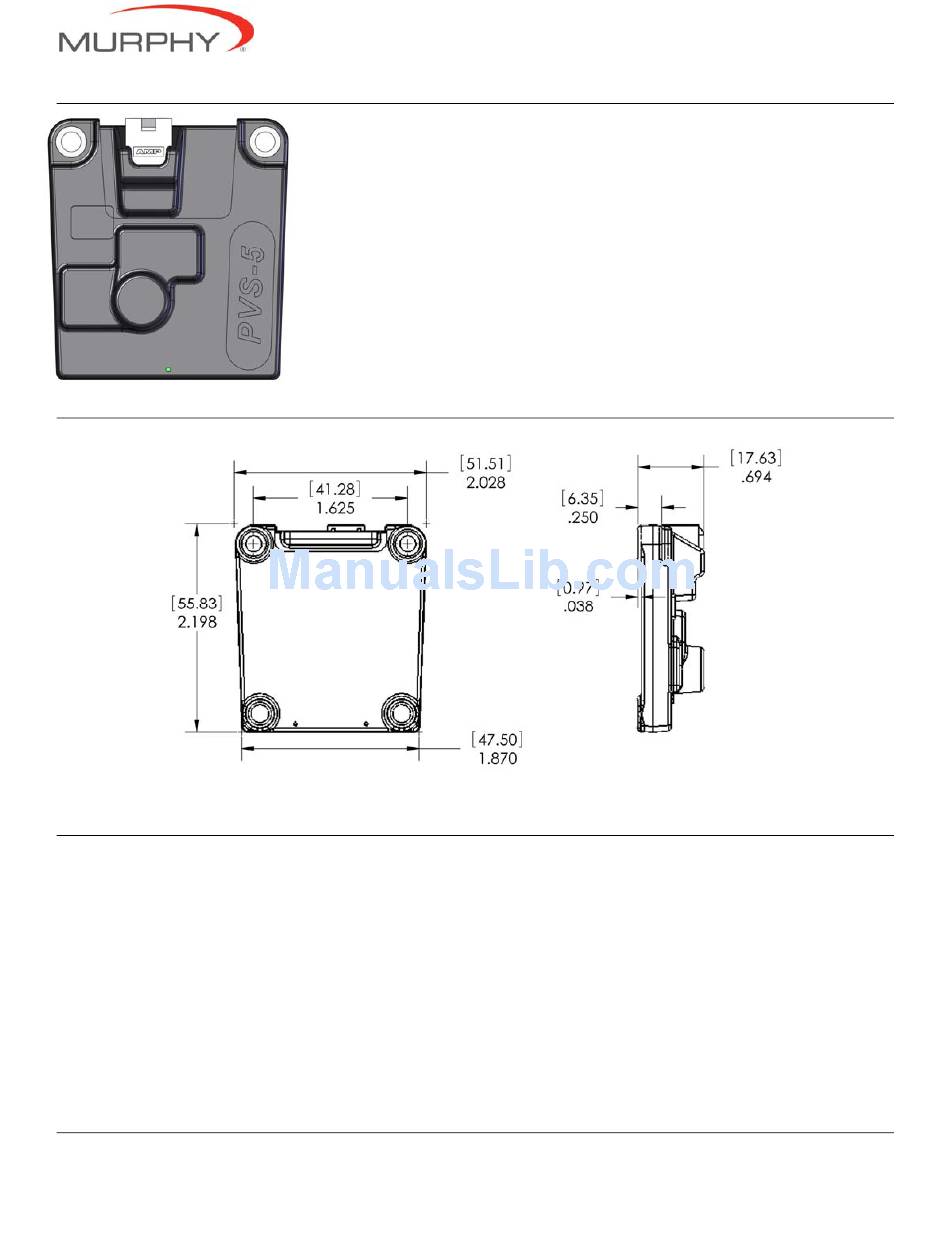

Product Dimensions

Specifications

Input Voltage:
•
6 VDC minimum to 32 VDC maximum
•
12/24 VDC Nominal
Output Voltage: 5 VDC @ 450mA maximum
Reverse Polarity Protection: -36VDC
Overvoltage Protection: +36VDC and above
Overcurrent Protection: 600mA @ 36VDA
maximum
Connector: AMP 1-770968-1
In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time.
MURPHY, the Murphy logo, MurphyLink ™ and PowerView ™ are registered and/or common law trademarks of Murphy Industries, Inc. This document,
including textual matter and illustrations, is copyright protected by Murphy Industries, Inc., with all rights reserved. (c) 2008 Murphy Industries, Inc.
•
Provides 5 Volt power supply to PVM gages
•
Capable of supplying power to a maximum of 6 PVM gages
•
Enables PVM gage compatibility with existing MurphyLink products
•
Easy mounting and installation
External power is required to make the PVM gage line compatible with existing
MurphyLink products, i.e. PV1000, Cascade, iGUARD and eGUARD. The PVS-5
power supply device supplies 5 Volts of external power and load dump
protection for up to 6 PVM gages. The maximum length of the power and data
connection between gages is 0.5meters (8.5 meters total).
The unit may be installed inside a panel or behind a dash.
Operating Temperature: -40°F to 185°F (-40°C to +85°C)
Storage Temperature: -40°F to 221°F (40°C to +105°C)
Random Vibration: 5-2,000 Hz
Operating Shock: 50G
Certification: CE
Case Material: Polyamide
Dimensions: 2"x2"x.75"
Mounting Hole Dimensions: Two #8 screws,
1.625" offset
00-02-0645
01-21-09
Section 78
