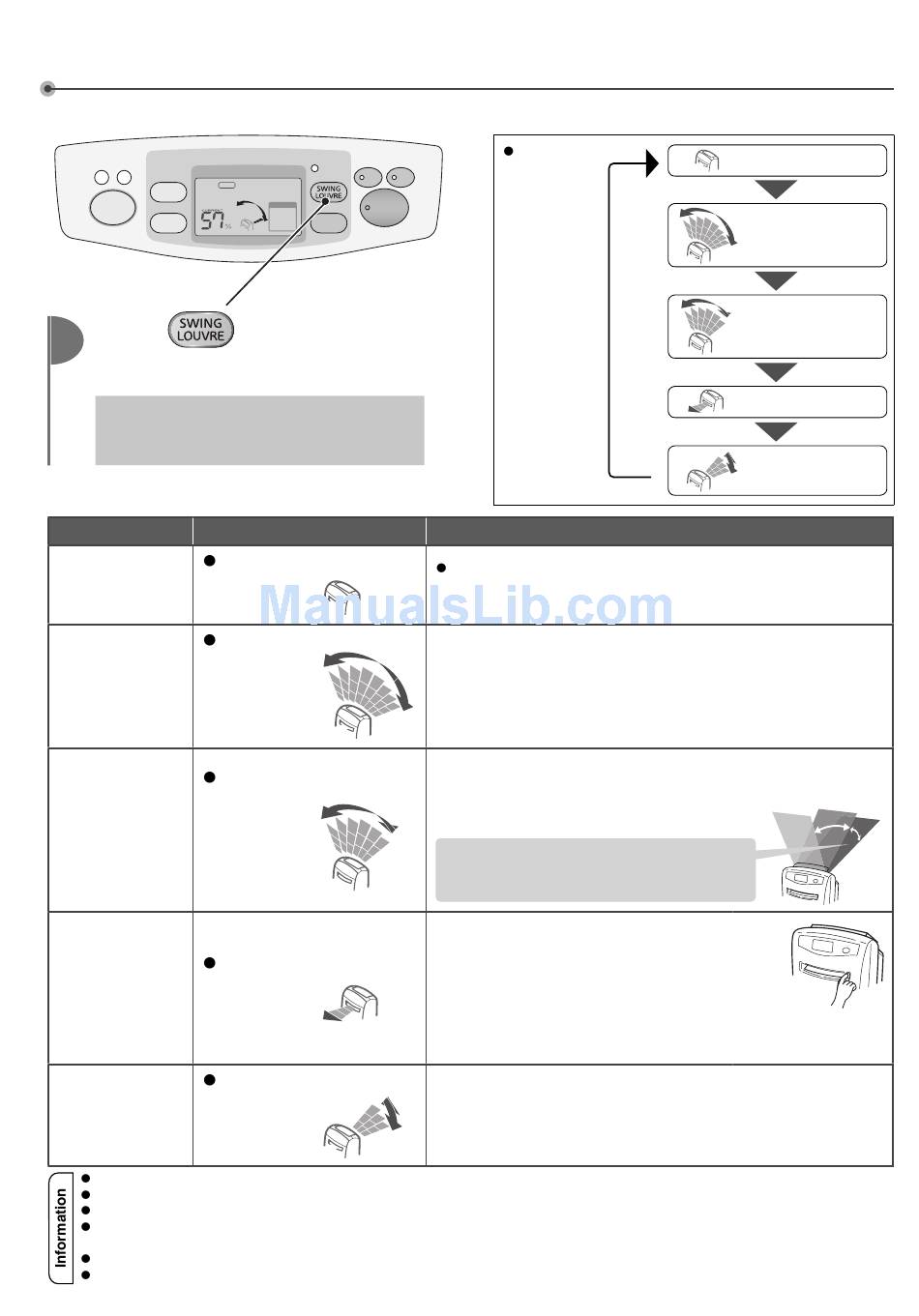

Using Louvre

The louvre can be made to swing. Select from the 5 possible settings to suit the purpose.
During
operation,
Press
operating mode
The swing monitor indicates the range in
which the louvre swings. (The movement of
the louvre and monitor do not match.)
Objective
To stop the
louvre at the
desired angle
To cover the
entire room
For drying
clothes, etc.
To dehumidify
carpets and
beds,
To dry training
shoes
To dehumidify
closets
The swing operation stops when the power cord is unplugged.
The level of noise emitted from the unit varies according to the angle of the air-fl ow.
The louvre may stop for up to about 8 seconds to adjust its position, but will start moving again afterwards.
If the louvre is knocked out of the desired angle because the louvre is touched by a hand or object, press the SWING
LOUVRE switch again to readjust the position.
If air is blown directly onto a wall, the wall may become dirty because of dust in the air being blown onto the wall.
When you want to dry training shoes, place them at a position that is a little higher than the fl oor.
16
to select the
Recommended swing mode
Stop swing
Wide swing
Upward swing
Downward
Rear swing
Changes
with each
press the
swing
direction.
Explanation of swing
The louvre stops and the swing monitor disappears.
Wait until the louvre stops and then adjust the angle by
hand.
The louvre swings so that air is blown over a wide area.
The blowing range is approximately 135°. (The moving range
of the louvre is approximately 120°)
Swing speed is automatically controlled to send air to clothes
from the angles.
The blowing range is approximately 90°.
The louvre moves slowly through the last 30° of the swing,
as the time taken to traverse the rear arc is shorter than
that for the upward arc when moving at a constant speed.
Air is blown from the downward swing
outlet. The louvre does not swing.
Move the downward louvre by hand to
adjust the angle. (Can be adjusted to
three positions)
The louvre may open slightly to adjust the
direction of blowing, so do not close the
louvre if this occurs.
The louvre will swing so as to blow air toward the backside of
the unit.
The blowing range is approximately 60°.
Depending on the angle of the louvre, some air may also blow out
from the downward outlet.
Stop swing
Wide
Upward
Downward
Rear
60°
30°
Hold the edge of the
downward louvre and
move it.
