Murphy Selectronic Tattletale ST Series Specification Sheet

Remote alarm annunciators

Advertisement

Quick Links

Selectronic
Remote Alarm Annunciators
Description
The ST Series Selectronic Tattletale
annunciators are a simple and inexpensive
answer to your remote alarm annunciator
needs. Basic models ST5AS and ST10AS
are general purpose alarms suitable for a
variety of applications. Model ST8 gives first
out annunciation of fault. Model STA16 is
designed for generator set applications and
can be configured to meet NFPA
requirements for standby generators.
These compact Tattletale annunciators tell
you by a flashing LED which variable
malfunctioned. Many feature a pulsating
Mini-Siren to audibly alert you to the
malfunction. The audible alarm is silenced
by depressing the Alarm Silence push
button, but the visual signal remains in
operation until the fault is corrected and the
contacts are cleared.
A test push button allows you to test all
alarm LEDs. Because LEDs are solid state,
cold light, electronic devices, they don't
burn out as incandescent light bulbs do.
Basic models accept 8-32 VAC or 8-40 VDC
input voltage. Others are available for either
12 VDC or 24 VDC input.
®
Tattletale
Preprinted peel and stick nameplates for
common faults are supplied with each unit.
Most of the Selectronic Tattletale annunciators
accept either normally open (N.O.) or
normally closed (N.C.) contacts. You can mix
N.O. and N.C. contacts on the same unit.

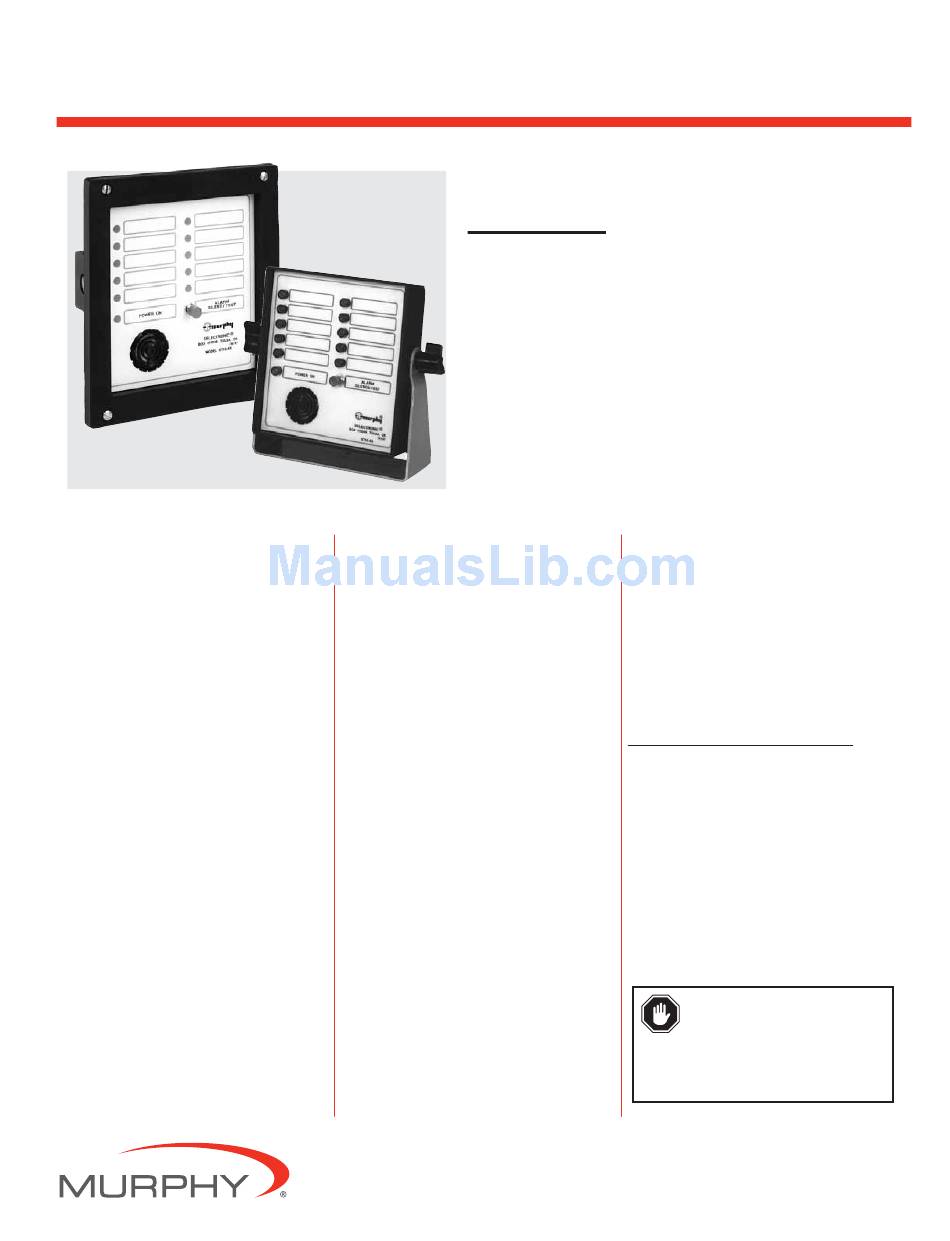

Two mounting styles are offered; a
recessed panel mounting flange and a free-
standing gimbal mounting. (Model STA16
is available only in flange mount).
All models except STA16 have a time delay
available to lockout the audible alarm on
startup.
These unique alarm panels have wide
ranging applications and can be grouped in
many configurations. Ask any Murphy
sales/engineer for assistance.
Basic Operation
When an alarm sensor trips, the LED
flashes and, if equipped, the Mini-Siren
sounds. At the same time an output circuit
is activated which allows you to connect an
external relay to operate a general alarm,
operate a shutdown device, etc.
ST-95046B page 1 of 6
®
ST Series
Provide Audible and Visual Alarm
Simple and Inexpensive
Wide Range of Applications
Gen-Set Models Meet NFPA-99 and
NFPA-110 Requirements
Applications
Warranty
A limited warranty on materials and workmanship
is given with this FW Murphy product. A copy of
the warranty may be viewed or printed by going to
www.fwmurphy.com/support/warranty.htm
without pre-warning. It is recommended
that monitored functions be limited to
alarm-only or to alarm before shutdown.
Revised 08-06
Catalog Section 25
Marine
Agriculture
Generator Sets
Construction
Oil Field
CAUTION: : Certain dangers to human
safety and to equipment may occur
if some equipment is stopped
ST-95046B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Selectronic Tattletale ST Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Murphy Selectronic Tattletale ST Series

  • Page 1 • Oil Field Warranty A limited warranty on materials and workmanship is given with this FW Murphy product. A copy of the warranty may be viewed or printed by going to www.fwmurphy.com/support/warranty.htm CAUTION: : Certain dangers to human safety and to equipment may occur if some equipment is stopped without pre-warning.
  • Page 2 BASIC: ST5AS, ST10AS and ST5DAS Series Murphy Basic ST-Series Selectronic Tattletale annunciators are used wherever a remote alarm and annunciation is required. Typical applications are in marine pilot houses to alert the crew of problems developing in engine, gear, bilge, auxiliary power plants, etc.
  • Page 3 FIRST OUT FAULTS: ST8 Series First out fault Tattletale tells you which monitored variable malfunctioned first. The fault is annunciated and locked in until reset by the operator. Applications include process monitoring such as compressors, pumps, generators, etc. Preprinted peel and stick nameplates for common faults are supplied with each unit. GENERATORS: STA16 Series The STA16 is a multi-functional visual and audible 16-point alarm typically applied as a remote alarm.
  • Page 4: Specifications

    Specifications Number of Alarm Points • 5 Visual • 10 Visual • 8 First Out Visual • 16 Visual Audible Alarm • 1 local; common to all inputs • 1 local; common to all inputs except battery charger malfunction and generator operating Alarm Silence: Silences audible only Test Push Button: Tests all LED's Alarm Output: Customer supplied relay same voltage as input;...
  • Page 5 ST5ASF 2-3/16 in. 3-1/2 in. (56 mm) (89 mm) 6-3/8 in. (162 mm) 6-3/8 in. (162 mm) DIMENSIONS Gimbal Mounting (“G” Option) 3-29/32 in. (99 mm) 3-5/32 in. (80 mm) 5-11/32 in. (136 mm) For model ST5AS Models ST10AS, ST5DAS, ST4x4, and ST8 ST8F and ST10ASF 2-3/16 in.
  • Page 6: How To Order

    MURPHY, the Murphy logo, Selectronic and/or common law trademarks of Murphy Industries, Inc. This document, including textual matter and illustrations, is copyright protected by Murphy Industries, Inc., with all rights reserved. (c) 2006 Murphy Industries, Inc. ST-95046B page 6 of 6 ®...
