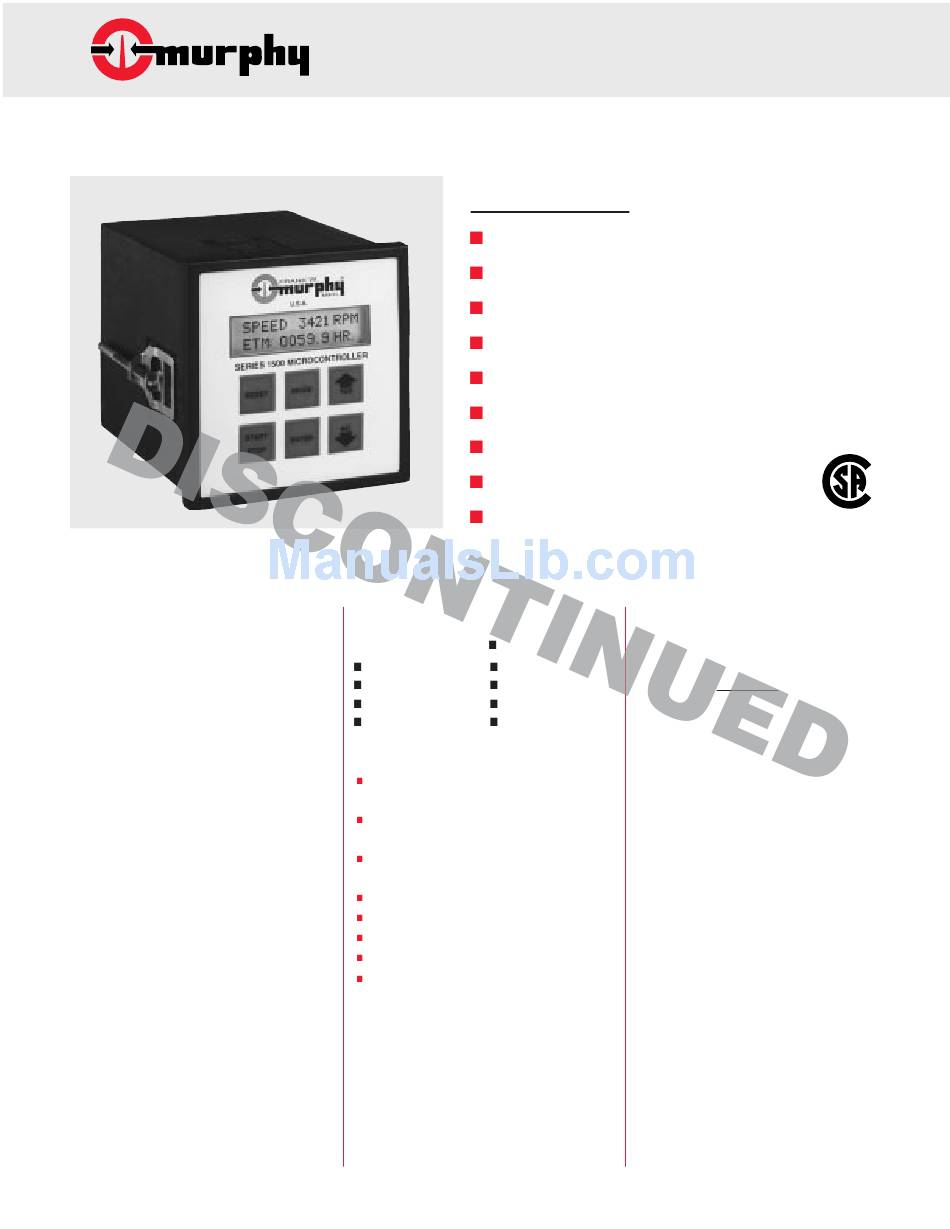

Murphy Selectronic Micro-Controller Series 1500 Specifications

FRANK W.
SELECTRONIC
Description
The Series 1500 is a microprocessor based alarm
and/or shutdown system. It tells in alphanumeric
characters which protective device has signaled an
alarm or caused equipment shutdown. Basic config-
uration for each application is programmed at
Murphy and can be configured in the field.
Information is called up and adjustments are made
on a six-button keypad on the face of the unit.
The S1500 system consists of a monitor, a sensor
input terminal strip (rail mount type), a 36 inch
(914 mm) flat ribbon cable for connecting the ter-
minal strip to the monitor, and a power supply
which includes the control Inputs/Outputs and
intrinsically safe barrier with cable assembly.
Four SPDT relays are available for alarm and/or
shutdown functions. A built-in RS232 communica-
tion port allows interfacing with IBM
patible computer systems and micro-controllers.
The S1500 is powered from a 120 VAC or 12 or
24 VDC, Class I, Division 1 explosion-proof power
supply. The monitor is rated intrinsically safe.
Intrinsically Safe Barrier
Murphy's LCDT-ISB intrinsically safe barrier for
hazardous applications, is designed for use with
two Normally Open sensors. This external barrier
accepts non-intrinsically safe, normally open inputs
and converts them to intrinsically safe outputs.
®
MFR.
® Micro-Controller
Applications
The Series 1500 can be configured to monitor
applications such as:
Air compressors
Gas compressors
Fire pumps
Sewage pumps
Features
32 sensor inputs (N.O. and/or N.C.) for alarm
or shutdown.
Six-button keypad for easy operation and
adjustments.
RS232 output for interface with computers and
micro-controllers (modem required).
Engine Automatic.
Two Start-Run Timers.
® PC and com- Four Control Relay Outputs.
Pre/Postlube Time Delay.
Typical standard program or customized* .
*
Murphy provides various standard preprogrammed
configurations. If a customer sensor input configura-
tion is needed, Murphy will custom program your
unit at the time you order. Call Murphy for quote.
Warranty
A two-year limited warranty on materials and
workmanship is given with this Murphy product.
Details are available on request and are packed
with each unit.
Series 1500
Alarm/Shutdown for 32 N.O. and/or N.C. Sensors
Operating Sequence Selection
Completely Field Adjustable
Selectable Sensor Lockouts Class A, B, C or P
Built-In Tachometer/Overspeed Function
Clearly Visible Alphanumeric Display
RS232 Communications Capability
Two Start/Run Timers
Elapsed Time Meter

How to Order

To order the Complete S1500 System: Monitor,
Terminal Block, Cable Assembly and Power
Generators
Supply), just specify the part number:
Process control
Water treatment
Burner systems
To order individual components and accessories
Natural gas refueling
specify model number:
Specify:
S1500H
S1500TB32
S1500CA36
S1500PS
LCDT-ISB
Shipping Weights and Dimensions
Complete S1500 System: 28 lb. [12.7 kg.]; 20 x
S1500 H: 2 lb. (0.907 kg.); 6 x 6 x 6 in. (152 x
S1500 TB32: 2 lb. (0.907 kg.); 12 x 7 x 4 in.
S1500CA36: 2 lb. (0.907 kg.); 6 x 6 x 6 in.
S1500PS: 22 lb. (9.98 kg.); 17 x 10 x 9-
LCDT-ISB: 3 lb. (1.3 kg.); 9 x 10 x 6 in. (229 x
*
For Normally Closed sensor the use an intrinsically
safe (approved) barrier is required.
S15-95063B
Effective 10-95
Catalog Section 50
(00-02-0119)
®
NRTL/C
Approved for Class I ,
Division 1 Groups C & D
S1500
To Order:
Monitor (Head) only
Terminal Block only
Cable Assembly only
Power Supply only
Intrinsically Safe Barrier
(for Normally Open Sensors*)
14 x 12- 1 / in. [508 x 356 x 318 mm]).
2
152 x 152 mm).
(305 x 178 x 102 mm).
( 152 x 152 x 152 mm).
3 / in.
4
(431 x 254 x 248 mm).
254 x 152 mm).
