Murphy Flasher Alarm Light and Mini-Siren SAH Specifications

Selectronic
Mini-Siren
Description
The Model TL7 is a panel mounted flashing
alarm light and audible alarm driver. The TL7
helps protect the Murphy Swichgage contacts
from the very high inrush current of the lamp.
It is available in 12 or 24 VDC for negative
ground systems. The SAH Mini-Siren pro-
vides an audible alarm when fault conditions
are detected by a Swichgage instrument. It
can be panel mounted and operates on 6–28
VDC.
Application
The TL7 Flasher/Light is used as a warning
device on various types of industrial and
mobile equipment. The Mini-Siren will give
an audible warning when the TL7 operates, or
it can be wired directly to the Swichgage con-
tacts for audible only alarm.

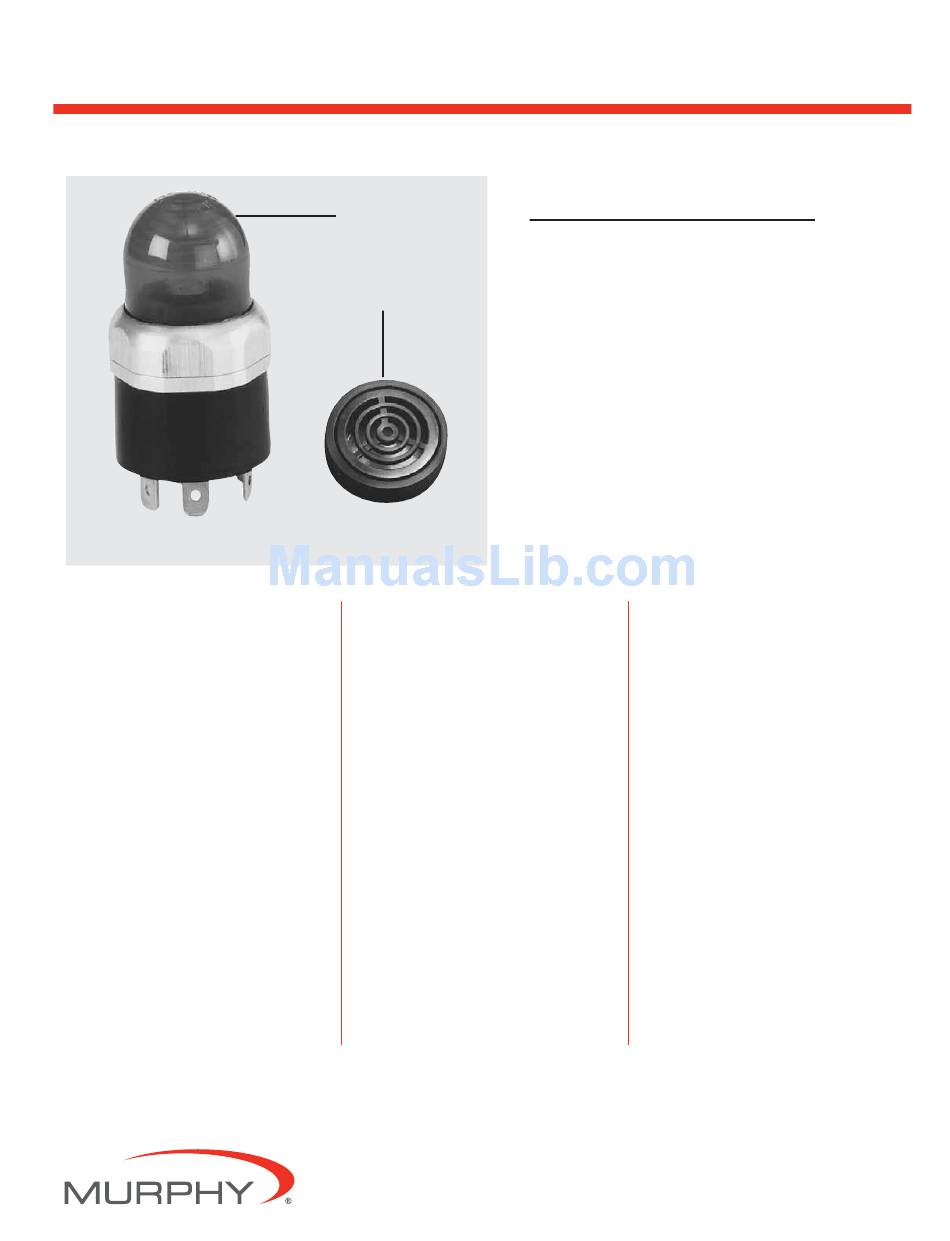

® Flasher Alarm Light and
TL7
SAH
Features: TL7
• Red polycarbonate lens
• 12 VDC or 24 VDC negative ground
(specify voltage)
• Tin plated male push-on type terminals
• SAH terminal designed to drive piezo elec-
tric audible alarm rated 20 mA @ 28 VDC
such as Murphy SAH Series Mini-Siren
Specifications: TL7
Power Requirements
• Voltage: 12 or 24 VDC, negative
ground (specify voltage).
• Current:
- Sensor switch < 60 mA
- 12 VDC, 360 mA with lamp on
- 24 VDC, 200 mA with lamp on
- 12 or 24VDC, 5 mA standby, lamp off
Outputs (see replacement lamps)
Lamp output: 120 mA @ 14.4 VDC
SAH terminal: 20 mA @ 28 VDC resistive
TL-8904B page 1 of 2
TL7 and SAH Series
■
High Visibility Flashing Red
Alarm Light or Audible Alarm
■
12 VDC or 24 VDC
■
Panel Mount
■
All Electronic
Enclosure
Red polycarbonate lens with aluminum
retaining nut.
Temperature Range
-40°F to 165°F (-40°C to 74°C).
Terminal Connections
Four tin plated 1/32 x 1/4 inch (0.8 x 6 mm)
male push-on type terminal.
Mounting Hole: 1-1⁄8 in. (29 mm) diameter.
Maximum Panel Thickness: 1/4 in. (6 mm).
Specifications: SAH
Type: PIEZO electric transducer.
Operating Voltage: 6–28 VDC.
Output Level: at 28 VDC 1 meter, 90± 5 dB.
Current Drain: at 28 VDC, 20 mA MAX.
Mounting Hole: 1-1/8 in. (29 mm) diameter.
Maximum Panel Thickness: 1/8 in. (3 mm).
TL-8904B
Revised 08-06
Catalog Section 30
(00-02-0128)
