Open House H635 Manual

ChannelPlus Ethernet Hub

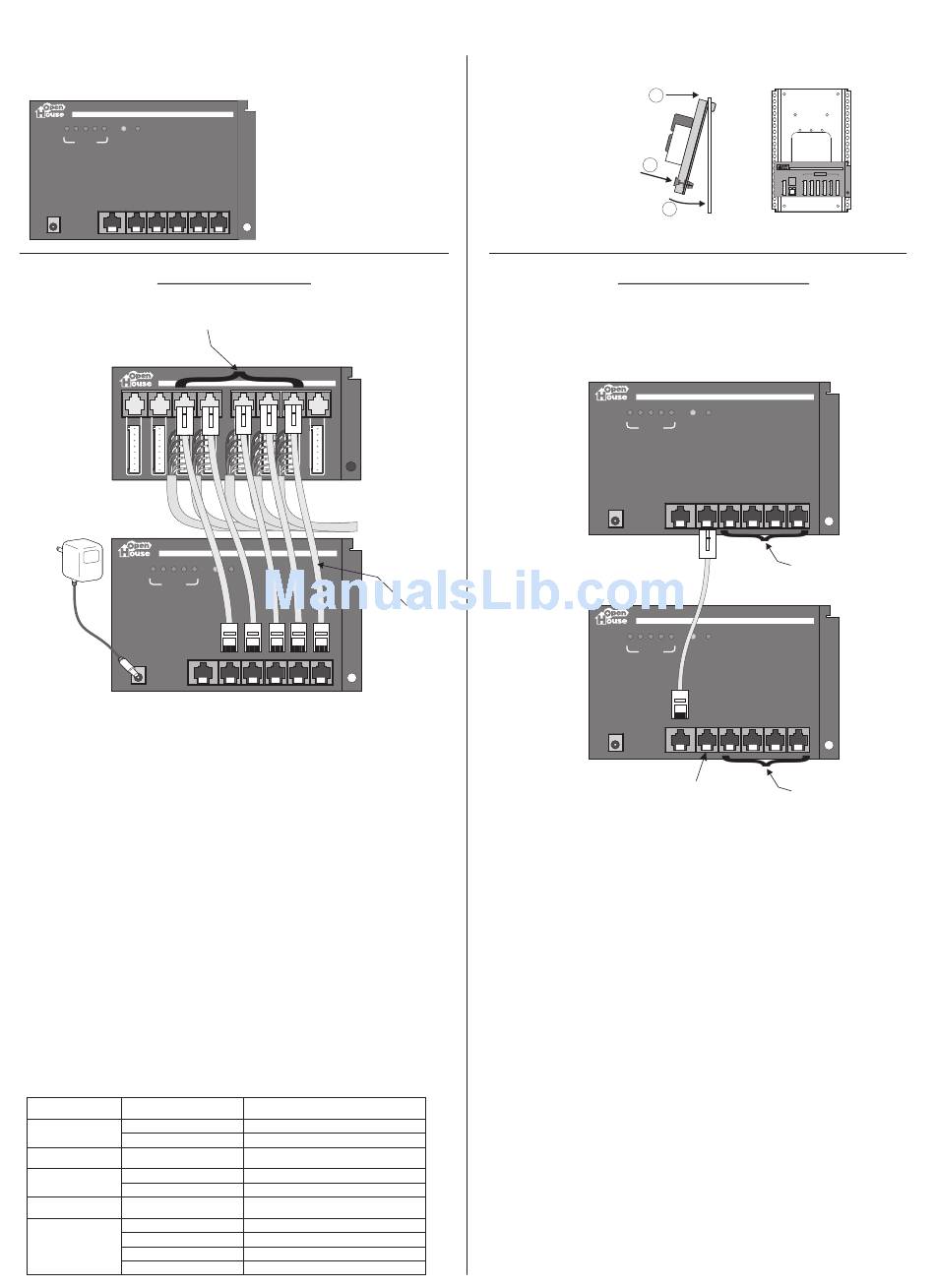

The H635 10Base-T ethernet hub
to five computers. "Plug and play" installation is easy when using the H628 data

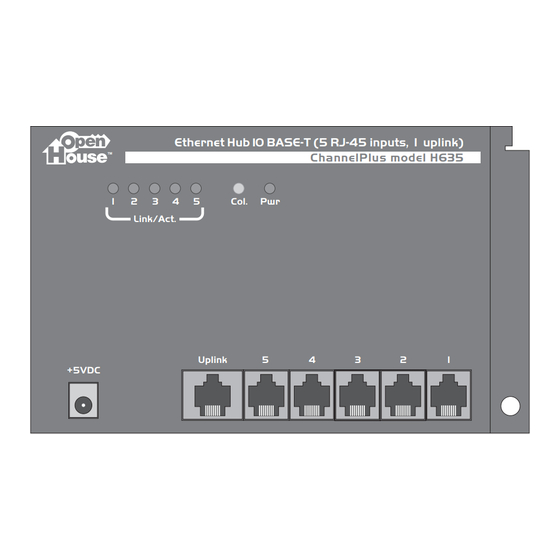

Ethernet Hub 10 BASE-T (5 RJ-45 inputs, 1 uplink)
TM ChannelPlus model H635
1 2 3 4 5 Col. Pwr
Link/Act.
Uplink 5 4 3
+5VDC
Typical Installation
Ethernet connections for 5 rooms
H628
Data Hub (8 cables, TIA-568A) Category 5 Compliant
Ethernet Hub
TM
1 2 3 4
Link/Act.
H635 +5VDC
Ethernet hub
Wiring the H635 Hub
- Use only Category 5 unshielded twisted-pair cable.
- When connecting to an H628 or a network device directly, use
straight through RJ-45 cables.
- Each run to a network device should be less than 100 meters (328
feet).

LED Indicators

- PWR indicates that the unit is powered and should be operating
normally. If the PWR light is not on, check to make sure the outlet
is on and the power supply is connected properly.
- LINK/ACT lights are on when a network device is detected and
operating normally. Each of the five ports has its own LINK/ACT
light.
- COL indicates that a network collision has occurred. Although
some amount of collision usually occurs, too many collisions may
indicate a problem such as a faulty cable connection.
Specifications: typical @ 25 C ± 5 C O
IEEE 802.3
Compliance
RJ-45 ports
Network Interface
RJ-45 uplink
CAT-5 (UTP)
Max cable length
each unit
LED Indicators
each port
operating temperature
Environmental
model number
Power supply
output current
output voltage
input power
creates a home network between up
hub. The H635 is fully
IEEE802.3 10Base-T compliant
and has activity LEDs for network
status and diagnosis. The H635
has an "uplink" port to expand the
network using additional H635
units for systems with more than
2 1
five devices.
ChannelPlus model H628
To data jacks
in remote
wall plates
10 BASE-T (5 RJ-45 inputs, 1 uplink)
ChannelPlus model H635
5 Col. Pwr
Uplink 5 4 3 2 1
H635
O
10Base-T
5
1
100 meters (328 feet)
PWR, COL
LINK/ACT
0°C to 50°C
350-087
800mA maximum
5 VDC ± 5% regulated
105-125 VAC
OpenHouse
1) Hook from the top
2) Swing into place
3) Push button to lock
Use one of the ports on the first H635 and connect to the
expansion H635 using its "uplink" port. See below for special
instructions.
H635
Ethernet hub
H691
H635
Ethernet hub
(expansion)
Using more than one hub
- Use only Category 5 unshielded twisted-pair cable.
- When connecting two hubs, use only a straight through RJ-45
Category 5 cable.
- The cable length between two hubs cannot exceed 100 meters
(328 feet).
- Additional hubs may be used as long as the path between any
two network devices does not exceed four hubs and five cables.
- When using the uplink port on an H635, you cannot connect a
network device to port 5.
- All hubs used must be powered.

DECLARATION OF CONFORMITY

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used according to the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which if found by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver.
-Connect the equipment to an outlet other than the receiver's outlet.
-Consult a dealer or an experienced radio/TV technician for assistance.
tm modules attach from the top
1
3
2
Expanding the Network
Ethernet Hub 10 BASE-T (5 RJ-45 inputs, 1 uplink)
TM ChannelPlus model H635
1 2 3 4 5 Col. Pwr
Link/Act.
Uplink 5 4 3 2
+5VDC
Ethernet Hub 10 BASE-T (5 RJ-45 inputs, 1 uplink)
TM ChannelPlus model H635
1 2 3 4 5 Col. Pwr
Link/Act.
Uplink 5 4 3 2
+5VDC
Leave this port unused
Telephone Master Hub (4 lines x 6 phones) Telephone Master Hub (4 lines x 6 phones)
ChannelPlus model H616
From From Expansion Expansion Telephones
Telco Telco Ports Ports
R R RJ31X
4
T T
R R
3 T T
R R
2
T T
Out
R R
1
T T
1
Connect to 4 network
devices or to the "uplink"
port of additional H635 hubs.
1
Connect to 4 network
devices or to the "uplink"
port of additional H635 hubs.
