Parameters
Los parámetros, Paramètres, Parameter
45.24
F s :
Hz
4.74
Q ms :
0.061
C ms :
mm/N
: 204.14
M ms
12.24
R ms :
kg/s
0.822
V as :
ft³ (
0.650
X max :
10.157
D:
in (
81.03
S d :
in² (
52.68
V d :
in³ (
1.03
Q es :
3.03
R e :
Ω
13.07
B l :
Tm
400
P rms :
Watts
0.850
Q ts :
0.202 %
η ο
:
85.25
SPLo:
SPL 2.83V/1m :
DESIGNED EXCLUSIVELY FOR
AMPLIFIERS
Recommended Power Rating of
La Potencia nominal recomendada, Le Pouvoir recommandé Evaluant, Empfohlene Kraft Einzuschätze
g
23.28
liters)
16.51
in (
mm)
258.00
mm)
522.79
cm²)
0.86
liters)
dB
89.37
dB
200 - 400 Watts RMS

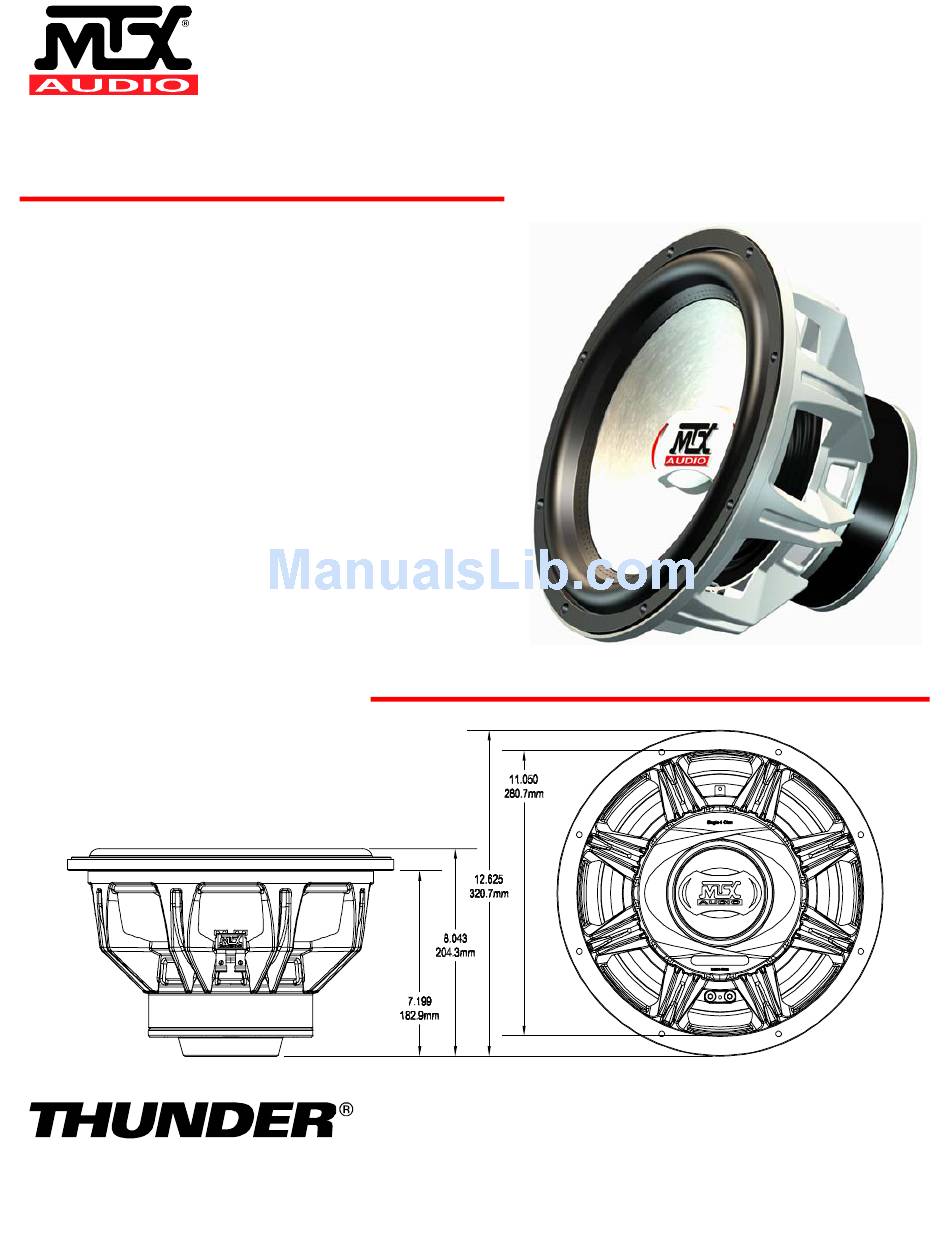

MXS1204
Specifications
Las especificaciones , Spécifications, Spezifikationen
21A7491
