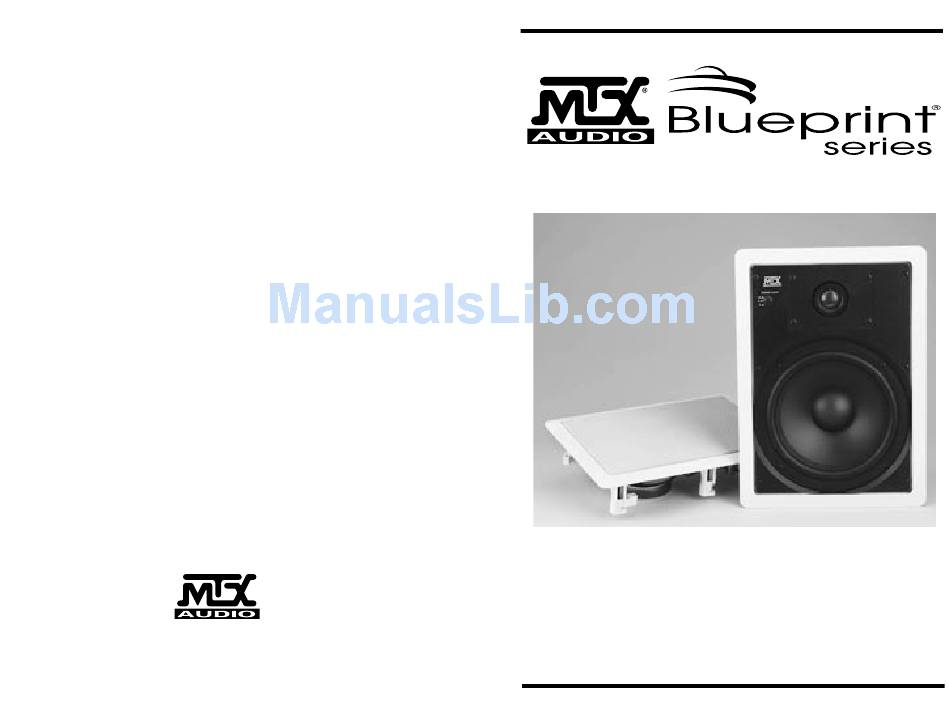

- Page 1 1 Mitek Plaza Winslow, IL 61089 815-367-3000 800-225-5689 21A6494 MODEL 625W / MODEL 825W OWNER’S MANUAL...
- Page 2 We appreciate your choice of MTX In-Wall Speakers. Properly installed and operated, MTX In-Wall Speakers should provide years of worry-free listening pleasure. It’s important that you follow each step in this guide carefully to insure proper installation. SPECIFICATIONS MODEL 625W Frequency Response 48Hz-20kHz ±3dB Impedance...
-
Page 3: Loudspeaker Placement
Dispersion After Tweeter Adjustment TWEETER LEVEL ADJUSTMENT The output of the tweeter can be adjusted to compensate for speaker placement/ listening positions that are less than ideal. The 0dB position is designed to pro- vide the smoothest frequency response on axis. If the high frequency response is considered to be too strong or too weak, the tweeter level can increased (+3dB position) or decreased (-3dB position) to suit the listeners preference. - Page 4 After the speaker panel is secured tightly, test for sound. When you are satisfied the speaker is operational, affix grill. As grill is designed for a snug fit, you’ll need to position one edge into slot first, and press or squeeze around perimeter of grill,...
