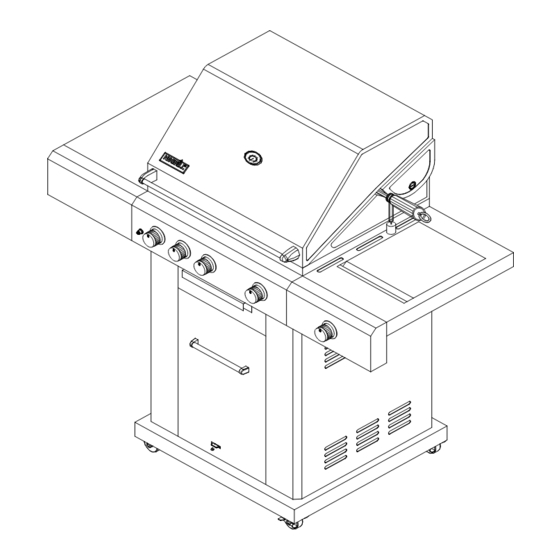

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS Model: 720-0312 FOR OUTDOOR USE ONLY FOR PROPANE GAS USE ONLY G18Y06P-1 PLEASE CONTACT 1-800–648–5864 FOR ASSISTANCE ABOUT ASSEMBLY OR GRILL OPERATION DO NOT RETURN TO THE PLACE OF PURCHASE...
- Page 2 MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not be found on other grills, we recommend that you read this entire booklet before your first use. Keep it in a handy place as it has answers to questions that may occur during future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FOUR Table of Contents & Importance-------------- Care & Maintenance-------------------21-22 Precautions----------------------------------------1-2 Placement of the Grill--------------------------- 3 SECTION FIVE Trouble Shooting-------------------------23-24 SECTION TWO Part List-----------------------------------25-26 Side Shelf Assembly---------------------------4-5 Operating Parts-------------------------27 Side Burner Assembly--------------------------6-7 Rotisserie Burner Assembly ---------------------- Rotisserie Kit &... -
Page 4: Precautions
PRECAUTIONS SAFETY PRACTICES TO AVOID PERSONAL WARNING INJURY Do not try to light this appliance without first reading the “LIGHTING When properly cared for, your stainless INSTRUCTIONS” section in this manual. steel grill will give safe, reliable service for many years. However, extreme care must be used since the grill produces intense TESTED IN ACCORDANCE WITH ANSI heat and that can increase accident... -
Page 5: Precautions
PRECAUTIONS Moist or damp potholders on hot surfaces DO NOT STORE ITEMS OF INTEREST may cause burns from steam. Do not use a TO CHILDREN AROUND OR BELOW towel or bulky cloth in place of potholders. THE GRILL OR IN THE CART. NEVER Do not let potholders touch hot portions of ALLOW CHILDREN TO CRAWL INSIDE the grill rack. -
Page 6: Placement Of The Grill
PRECAUTIONS Do not use the grill for cooking outside in a well ventilated area, out of the excessively fatty meats or products which reach of children. promote flare-ups. Do not operate the grill DO NOT USE BRIQUETTES OF ANY under unprotected combustible KIND IN THE GRILL. -
Page 7: Side Shelf Assembly
ASSEMBLE INSTRUCTIONS ASSEMBLY INSTRUCTIONS PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. TOOLS REQUIRED: (1) PHILIPS HEAD SCREWDRIVER – NOT PROVIDED STEP 1:The screws used to attach the side shelf and side shelf control panel are already screwed into the side shelf control panel(see the figure below). Remove the screws from the side shelf control panel, align with the holes in the side shelf, and then re-screw into the holes on the side shelf. - Page 8 ASSEMBLY INSTRUCTIONS STEP 2: A. The screws used to attach the side shelf are already screwed into the side panel, remove the screws from the side panel, and align the side shelf holes to the side panel holes. Insert the screws and tighten securely.
-
Page 9: Side Burner Assembly
ASSEMBLY INSTRUCTIONS STEP 3: Please insert valve venturi into the side burner venturi and tighten securely using an adjustable wrench, then clip the side burner hose on the bracket behind the side burner control panel G18Y06P-1... - Page 10 ASSEMBLY INSTRUCTIONS STEP4: Unwrap the ignition wire and clip it behind the brackets provided. Plug the end on to the spade connector on the side burner valve behind the side burner control panel. G18Y06P-1...
-
Page 11: Rotisserie Burner Assembly
ASSEMBLY INSTRUCTIONS STEP 5: Battery is inserted for the Rotisserie burner . To install the battery, turn the ignition button cap counterclockwise and remove it. Replace the ignition button cap after the battery is installed. G18Y06P-1... -
Page 12: Rotisserie Kit & Spice Tray Assembly
ASSEMBLY INSTRUCTIONS STEP 6: The screws for the rotisserie drive motor bracket are screwed into the right side of the grill housing. Remove the screws and install the rotisserie motor bracket as shown in the figure below. Assemble the rotisserie skewer as shown in the figure below. STEP 7: Attach propane gas tank to regulator inlet fitting by turning the quick coupling nut clockwise as shown in figure below. -
Page 13: Gas Holder & Propane Tank Assembly
ASSEMBLY INSTRUCTIONS STEP 8: To lock the slide tank tray in place, please press the button on the outside of the drawer 30 0 4 00 5 00 60 0 10 0 7 00 STEP 9: To lock the tank tray door, first locate the lock on the bottom of the door.(figure 1) First, push down on the locking bar to lock the tank tray door to avoid accidental opening.(figure 2) Push down until you hear a click and see the button is push out. -
Page 14: Gas Hook
GAS HOOK-UP NEVER CONNECT AN UNREGULATED QCC1 in the standard for compressed gas GAS SUPPLY LINE TO THE APPLIANCE. cylinder valve outlet and inlet connection USE THE REGULATOR/HOSE ANSI/CGA-V-1. ASSEMBLY SUPPLIED. Manifold pressure: 10”(25.4cm) water This is a liquid propane configured grill. column (W.C.). -
Page 15: Installer Final Check List
GAS HOOK-UP 5. When connecting regulator assembly to To disconnect L.P. gas cylinder: the valve, hand tighten the quick 1. Turn the burner valves off. coupling nut clockwise to a complete stop. Do not use a wrench to tighten. 2. Turn the tank valve off fully (turn Use of a wrench may damage the quick clockwise to stop). -
Page 16: Leak Testing
LEAK TESTING GENERAL Only those parts recommended by the manufacturer should be used on the grill. Although all gas connections on the grill are leak tested at the factory prior to shipment, a Substitution will void the warranty. Do not use complete gas tightness check must be the grill until all connections have been performed at the installation site due to... - Page 17 CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane. The gas must be turned off at the supply cylinder when the unit is not in use.
-
Page 18: Operating Instruction
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND WARNING: IMPORTANT! ROTISSERIE USING THE SIDE BURNER: Each main burner is rated at 12,000 Inspect the gas supply hose prior to Btu/hr. The main grill burners encompass turning the gas “ON”. If there is evidence the entire cooking area and are side of cuts, wear or abrasion, it must be ported to minimize blockage from falling... -
Page 19: Grill Lighting Instruction
OPERATING INSTRUCTIONS CAUTION: PLEASE TAKE OFF THE WARMING RACK WHEN USING THE ROTIS BURNER. THE HIGH HEAT COMING FROM THE ROTIS BURNER MAY CAUSE THE WARMING RACK TO BEND. GRILL LIGHTING INSTRUCTIONS Never substitute regulators and hose assembly for those supplied with the grill. WARNING: IMPORTANT! If a replacement is necessary, contact the BEFORE LIGHTING…... - Page 20 GRILL LIGHTING INSTRUCTIONS TO LIGHT THE GRILL BURNER: If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any Make sure all knobs are “OFF” then turn on accumulated gas to dissipate. Keep your the gas supply from the LP tank. Always face and hands as far away from the grill keep your face and body as far from the as possible.
- Page 21 GRILL LIGHTING INSTRUCTIONS G18Y06P-1...
- Page 22 GRILL LIGHTING INSTRUCTIONS FLAME CHARACTERISTICS flame is noisy and tends to lift away from the burner, it indicates too much air. Check for proper burner flame characteristics. Burner flames should be blue and stable Each burner is adjusted prior to with no yellow tips, excessive noise, or shipment;...
-
Page 23: Lighting Illustration
LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustration Rotisserie Burner Lighting Illustration Step 1. To light the Rotisserie Burner : Make sure the Lid is open Push and turn the rear burner knob to “HI” position and hold for 3-4 seconds and push electronic ignition button, until burner is lit. -
Page 24: Care & Maintenance
CARE AND MAINTENANCE STAINLESS STEEL MAIN GRILL BURNER CLEANING The grill is made from non-rusting and Ensure the gas supply is off and the knobs non-magnetic stainless steel. There are are in the “OFF” position. Make sure the grill many different stainless steel cleaners is cool. - Page 25 CARE AND MAINTENANCE HOW TO REPLACE MAIN BURNER STAINLESS STEEL : Step 1. Locate the burner onto the orifice. There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface.
-
Page 26: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! WHEN TO LOOK FOR SPIDERS Spiders and small insects occasionally You should inspect the burners at least spin webs or make nests in the grill burner once a year or immediately after any of the tubes during transit and warehousing. - Page 27 TROUBLE SHOOTING CHECK LIST WHAT TO DO PROBLEMS Check to see if LP tank is empty. Grill won’t light when the control knob is rotated. Clean wire(s) and /or electrode by rubbing with alcohol and clean swab. Wipe with dry cloth. Make sure the wire is connected to electrode assembly.
-
Page 28: Part List
PARTS LIST G18Y06P-1... -
Page 29: Part List
PARTS LIST KEY # DESCRIPTION Q’TY KEY # DESCRIPTION Q’TY Main Lid Rotisserie Back Panel Temperature Gauge Rotisserie Igniter Wire Logo Rotisserie Rod Spit Fork M ain Lid Handle Heat Insulating Spacer Main Lid Handle Tube Rear Baffle Rotisserie Motor Rotisserie Burner Rotisserie Motor Bracket Rotisserie Burner Gas Collector... -
Page 30: Operating Parts
ORDERING PARTS IMPORTANT REPLACEMENT HOW TO ORDER PARTS Use only factory authorized parts. The use of any part that is not factory authorized To make sure you obtain the correct can be dangerous. This will also void your replacement part(s) for your gas grill, warranty. -
Page 31: Grill Cooking Chart
GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS AND FOOD THICKNESS FLAME SIZE TIME TIPS VEGETABLES Slice.Dot with butter or margarine Wrap in heavy-duty foil.Grill,turning occasionally Fresh Beets Medium 12 to 20 minutes Carrots Grill,turning once.Brush Occasionally Turnips With melted butter or margarine Onion 1/2 inch slices Medium... - Page 32 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS Tenderloin, Porterhouse, Remove excess fat from edge. Slash T-Bone, Sirloin remaining fat at 2-inch intervals. Rare 1 inch High 8 to 14 minutes Grill, turning once. 1-1/2 inch High 11 to 18 minutes...
- Page 33 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FLAME SIZE FOOD THICKNESS TIME AND TIPS FISH AND SEAFOOD Grill,turning once.Brush with melted butter,margarine or oil Steaks To keep moist. Halibut 3/4 to 1 inch Medium to 8 to 15 minutes Salmon High Swordfish...
-
Page 34: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON TANGY SEAFOOD KABOBS Half hour before cooking, turn the burner to the grill on full. Drain 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined seafood reserving marinade. On 2 tbs. Oil each of twelve 10” skewers, ¾... - Page 35 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ thickness or flatten chicken onion, soy sauce, 2 tsp. oil and sauce, oregano, salt and pepper breasts. Mix oil, lime juice and the next 8 ingredients until in a large mixing bowl.
- Page 36 GRILL RECIPE SUGGESTIONS CHICKEN TANDOORI STYLE Marinade ribs for 3 hours. Use TURKEY marinade for basting by adding 8 large chicken thighs or 12 lb. turkey drumsticks beer to it. Place pan under the Beer basting sauce: ribs and baste frequently. To 1 c.
-
Page 37: Limited Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage...
