Item
Part No.
Description
1
791-182059
Air Cleaner/Muffler Cover Assembly
(includes 2 & 37)
2
791-180350B Air Cleaner Filter
3
791-180351
Carburetor Mounting Screw Assembly
4
791-180226
Wavey Washer
5
753-1182
Choke Lever Assembly (includes 6)
6
753-1183
Choke Knob and Screw
7
753-1184
Choke Lever and Plate (includes 5)
8
791-182875
Carburetor Assembly (includes 9 & 21)
9
791-610675
Carburetor Gasket
10
791-181860
Carb Mount Screw
11
753-1185
Primer and Hose Assembly
12
791-182063
Carb Mount Assembly (includes 10 & 15)
13
791-684451
Reed Assembly
14
791-181866
Power Shaft Assembly
15
791-612115
Rear Cover Gasket
16
791-181865
Crankcase Service Assembly
(includes 10, 14 & 24)
17
791-612134
Rear Mounting Pad
18
753-04311
Fuel Tank Assembly (includes 19-21)
19
753-1187
Fuel Cap Assembly
20
791-181168
Fuel Return Line
21
791-682039
Fuel Line Assembly
22
791-145308
Front Mounting Pad
23
791-153520
Shroud Assembly
24
791-181861
Shroud Screw
25
791-182064
Shroud Extension and Stand
26
791-182736
Flywheel Assembly
27
791-610303
Nut, Square Drive
28
753-04232
Recoil Pulley Assembly
29
791-613102
Recoil Spring
30
791-611061
Rope Guide
31
791-182926
Pulley Retainer Assembly (includes 30)
32
791-611063
Ground Tab
6
7
11
13
10
12
15
43
42

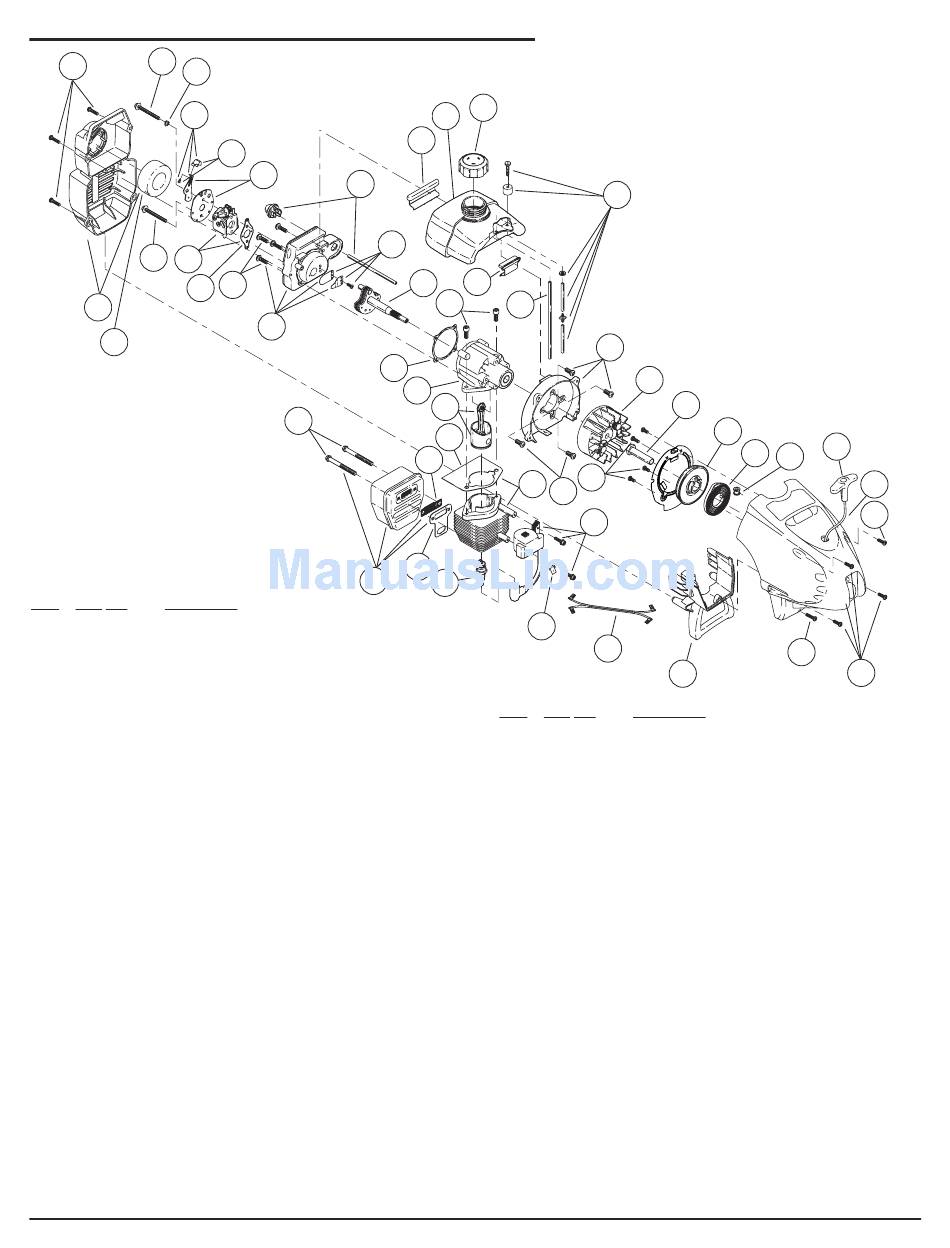

ENGINE PARTS - MODEL YM1000
19
18
17
22
14
47
20
16
45
46
48
31
44
24
39
41
40
32
Item
Part No.
33
791-181079
34
791-613103
35
791-00055
36
791-181862
37
791-181345
38
753-1188
39
753-1205
40
791-610311B Spark Plug
41
753-04159
42
791-182066
43
791-147575
44
753-1206
45
753-1207
46
791-610674
47
791-182723
48
791-182747
*
791-182067
*
791-180602
*
791-181873
*
753-1209
*
753-04173
*
2-CYCLE GAS TRIMMER
21
23
26
27
28
29 30
38
25
Description
Pull Handle
Rope
Starter Housing Assembly
(includes 28-31, 33, 34, 36 & 39)
Housing Screw
Cover Screw
Wire Lead
Module Assembly
Exhaust Gasket
Muffler Assembly (includes 43, 41 & 48)
Muffler Mounting Bolt Assembly
Cylinder Assembly (includes 47)
Piston and Rod Assembly
Cylinder Gasket
Cylinder Bolt
Spark Arrestor Screen
Engine Gasket Kit
O.E.M. Carburetor Repair Kit (Walbro)
Gasket Diaphragm Repair Kit (Walbro)
Piston Ring
Short Block Assembly
(includes 10, 14, 16, 24, 40, 44-48)
Items Not Shown
PPN 41ADY10G401
33
34
36
37
35
Reissued 4/00
