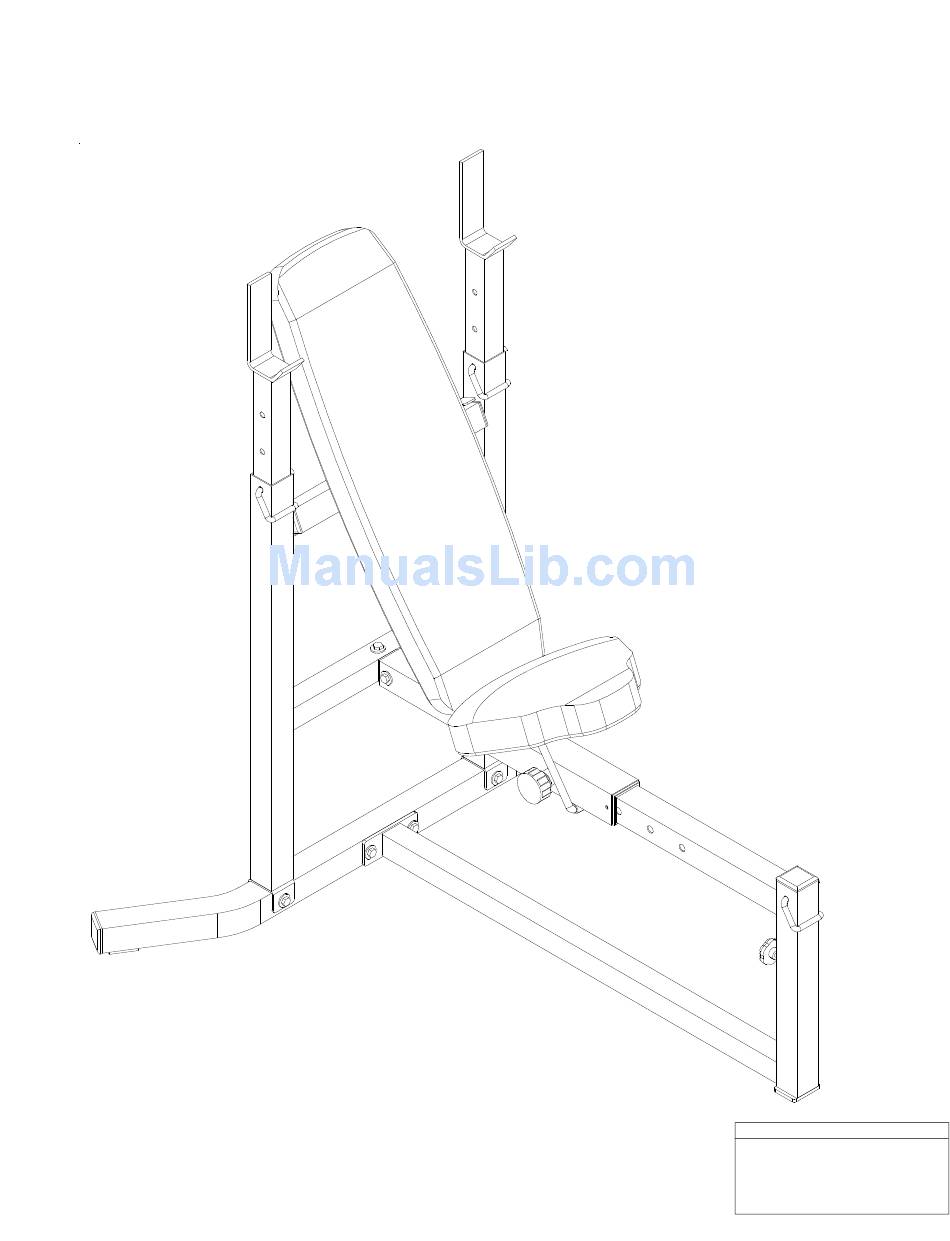

NORTHERN LIGHTS
WORKOUT CENTER BENCH
ASSEMBLY INSTRUCTIONS
WORKOUT CENTER BENCH
NL-WCB
Overall Dimensions : 48" L x 44" W x 66" H
September 5, 2012
Specifications
Weight
= 81.5 lbs
Packed in 1 Box
= 49.5" x 23" x 8"
= 5.27 ft³
Advertisement
Related Manuals for Northern Lights NL-WCB
Summary of Contents for Northern Lights NL-WCB
- Page 1 NORTHERN LIGHTS WORKOUT CENTER BENCH ASSEMBLY INSTRUCTIONS WORKOUT CENTER BENCH Specifications Weight = 81.5 lbs NL-WCB Packed in 1 Box = 49.5" x 23" x 8" Overall Dimensions : 48" L x 44" W x 66" H = 5.27 ft³...
-
Page 2: Parts List
Parts list Item Description ......Qty Item Description ......Qty Bolt 3/8" x 1-1/4" ..... 4 "C" Frame ....... 1 Bolt 3/8" x 2-1/2" ..... 1 "H" Frame ......1 Bolt 3/8" x 2-3/4" ..... 1 Incline Bar ....... 1 Bolt 3/8"... - Page 4 6 PLACES 16 PLACES 4 PLACES Bolt the Bottom Brace (5) and the "C" Frame (1) to the "H" Frame (2) using the bolting shown. Place the Incline Bar (3) into the support brackets on the "H" Frame (2) and install the Bolt 3/8" x 2-1/2" (B). Bolt the Seat (7) and the Back Rest (8) to the Wolf Tube (6) using the bolting shown.
- Page 5 Simplement, retrournez la pièce défectueuse à This warranty is for original product owners and does not cover Northern Lights, payé et ensuré, et nous la remplacerons sans frais. damage resulting from product alterations, misuse, abuse, improper assembly, normal wear and tear or other conditions, which are Cette garantie s’étend uniquement au propriétraire d’origine...
