Remeha Gas 360 S
English
Gas-fired boilers
20/07/05
Technical
instructions
Supplied By www.heating spares.co Tel. 0161 620 6677

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gas 360 S and is the answer not in the manual?

Questions and answers

Related Manuals for REMEHA Gas 360 S

Summary of Contents for REMEHA Gas 360 S

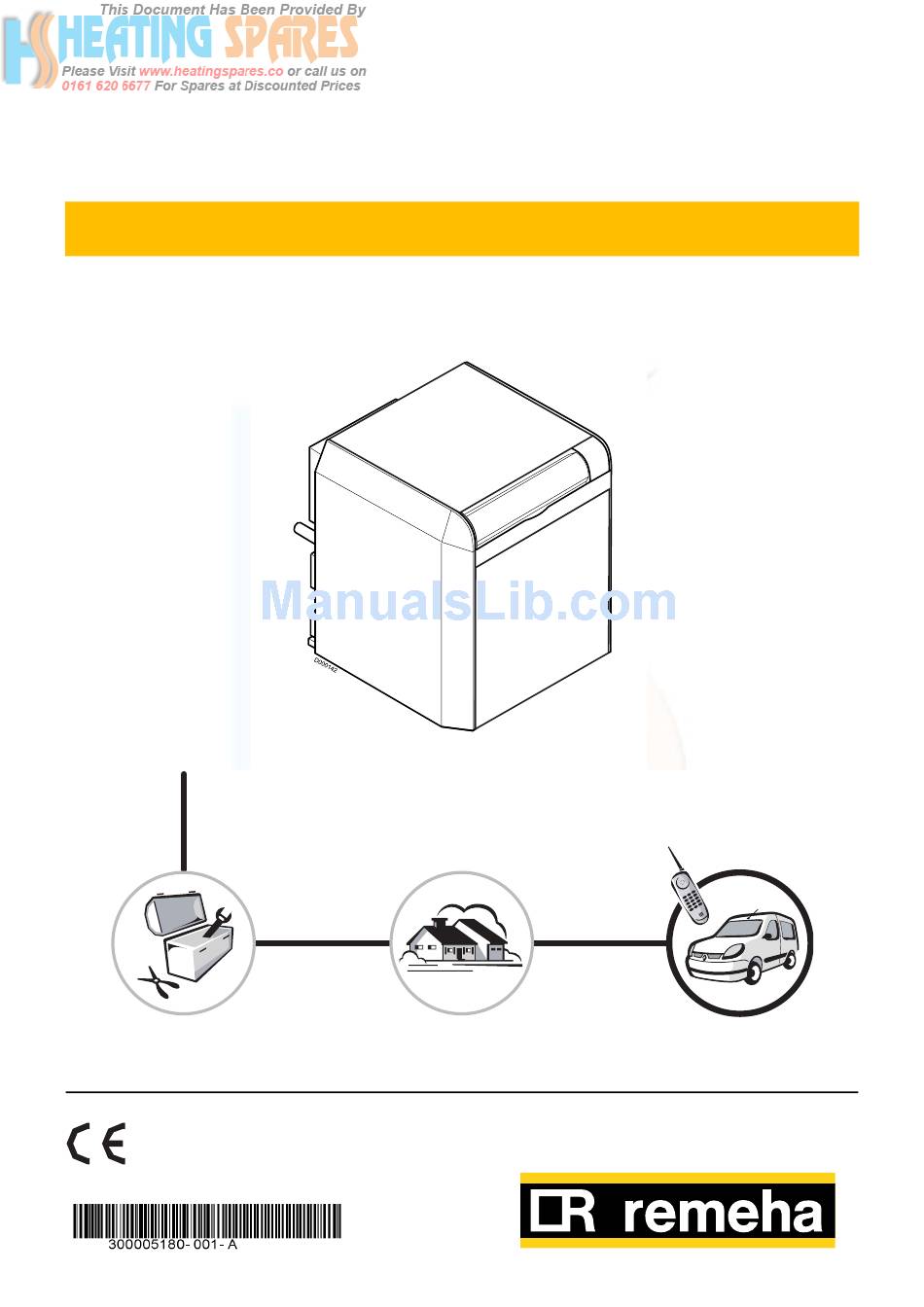

  • Page 1 Remeha Gas 360 S English Gas-fired boilers 20/07/05 Technical instructions Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 2: Table Of Contents

    Warranty ................. . .33 Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel.

  • Page 3: Introduction

    Specific information Information must be kept in mind to maintain comfort Reference Refer to another manual or other pages in this instruction manual Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 4: Description

    - with atmospheric gas burners - with electronic ignition via the ignition burner for hot water central Gas 360 S boilers are delivered with a K control panel. They can be heating fitted with an optional RC4 and RC5 control unit (master-slave control - with a useful output of between 54 and 117 kW unit options).

  • Page 5: Main Parts

    10 to 14 section models (package RD19)) 10 Flue damper connector bridge (only for Gas 360 L) 11 Connection kit, cyclic leak proofing control (cyclic leak proofing controller option, package RD18) Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 6 11 Location for optional features or a RC4/RC5 control unit 13 Switch for selecting the number of burner stages 14 Burner alarm indicator + Reset button Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 7: Technical Characteristics

    - Thermostat adjustable from 30 to 90°C - Safety thermostat: 110°Put the insulation plate *1 under the burner after unscrewing the self-tapping screw *2 pre-assembled to the baseC Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 8: Identification Plate

    The rating plate affixed to the front panel during assembly provides the exact identification of the boiler and indicates its principal characteristics. (1) 04 = 2004, 05 = 2005 Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 9: Main Dimensions

    6 Main dimensions Connection for safety valves Rp 1 Draining Rp 3/4 Heating outlet R 1 1/2 Gas inlet R 1 Heating return R 1 1/2 Boiler Gas 360 S A (mm) 1113 1280 1447 B (mm) 1007 1007 1007...

  • Page 10: Operation

    Note 2: If the reset button is pressed in normal operation, the gas valves close and the box starts a new ignition sequence. Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 11 Restart waiting time Safety time: maximum 55 seconds Alarm time: 15 seconds Waiting time: 0 seconds Auto-control time: 1.5 seconds Required input signals Box output signals Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 12 Outlet to the ignition burner (*only on 1st stage valve VK4100C1026) Outlet to principal burner Principal valve membrane Start-up pressure adjustment screw Start-up pressure membrane Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 13 Threshold ignition system Lower membrane on the threshold ignition system Protection cap for the "soflite" vent Flow adjustment screw, maximum power Pressure regulator membrane Regulation chamber Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 14: Adapting To Another Gas

    Pull the gas supply pipe towards yourself. Re-attach the supply tube (14 spanner). Take out the ignition burner nozzle. Natural gas H Propane Nozzle marking Nozzle diameter 0.40 mm 0.30 mm Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 15: Setting The Nozzle Pressure

    - Replace the protection caps. When replacing a gas valve: - Carefully set the pressure and progressivity at the opening as described in this chapter. Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 16: Setting The Start Up Pressure

    The progressivity of the left valve (2nd stage) is always set to "Minimum". No setting is needed on the left valve on a 14-element boiler. Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 17: Attaching The Label

    A. Downstream pressure (mbar) B. Time (s) 5 Attaching the label Affix the label which indicates for which type of gas the boiler is fitted and set. Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 18: Commissionning

    Commissionning 1 Pressure settings and calibrated nozzle markings Table of pressure settings and nozzle markings Boiler type Gas 360 S/ Nozzle pressure Natural gas H mbar Propane mbar Start-up pressure Natural gas H mbar Propane mbar Nozzle Number of nozzles...

  • Page 19: Final Checks Before Commissioning

    Anti-backflow thermostat Package RD19 (optional as of 10 section models) (bridge factory-fitted) Flue damper ( Leak proofing system, Package RD18 (bridge factory-fitted) (Not used) (bridge factory-fitted) Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 20: Maintenance

    - Remove the sweeping hatch from the draught diverter - If necessary, clean the boiler body using the special brush provided - Clean the combustion chamber using a vacuum cleaner Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 21 Painted surfaces The painted surfaces can be cleaned with tepid or cold soapy water. Wipe the painted surfaces with a soft cloth or a damp sponge. Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 22: Incidents And Solutions

    - Insufficient or poorly placed air - Enlarge air supply, smoothen airation holes supply - Faulty gas valve - Check gas valve and replace if necessary Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 23 - Injectors too large - Check pressure injectors - Pressure too weak Whistling - Injectors too small - Check pressure injectors - Pressure too high Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 24: Spare Parts Gas 360 S

    Spare parts Gas 360 S The code number on the list next to the required piece must be stated when ordering replacement parts. 20/07/05 - 300005180-002-A Boiler body + Draught diverter Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 25 Gas line 8-10-12 sections Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 26 Gas line 14 sections Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 27 Control panel K Control panel K + Components 20/07/05 - 300005180-001-A Remeha Gas 360 S Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 28 Metal casing for control panel K Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 29 Boiler body insulation 20/07/05 - 300005180-001-A Remeha Gas 360 S Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 30 Cladding Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 31 FURIGAS burner 9755-0189 Flange gasket 9536-0220 Pressure socket 8377-4091 Insulation, outlet pipe 8502-5600 Insulation, burner drawer - 8 sections 9696-0228 Brush 22 x 11 L500 20/07/05 - 300005180-001-A Remeha Gas 360 S Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 32 Glue 1000 (100 ml can) 8377-8938 Complete insulation - 14 sections 8502-5516 Screw bag 8502-4925 Earth liaison wire CLADDING 200003820 Cladding complete - 8 sections Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 33: Warranty

    8377-8175 Lower back panel - 10 sections 8377-8177 Lower back panel - 12 sections 8377-8179 Lower back panel - 14 sections 8377-8702 Housing screws packet 20/07/05 - 300005180-001-A Remeha Gas 360 S Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 34: Remeha Gas 360 S 20/07/05 - 300005180-001-A

    Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...

  • Page 35: Remeha Gas 360 S 20/07/05 - 300005180-001-A

    Remeha Gas 360 S 20/07/05 - 300005180-001-A Supplied By www.heating spares.co Tel. 0161 620 6677...
  • Page 36 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing.. Ours is a policy of continuous development. We reserve the right to alter specifications without prior notification Subject to alterations Supplied By www.heating spares.co Tel.
