Circuit Diagram - Makita 8391D Technical Information

C
ircuit diagram

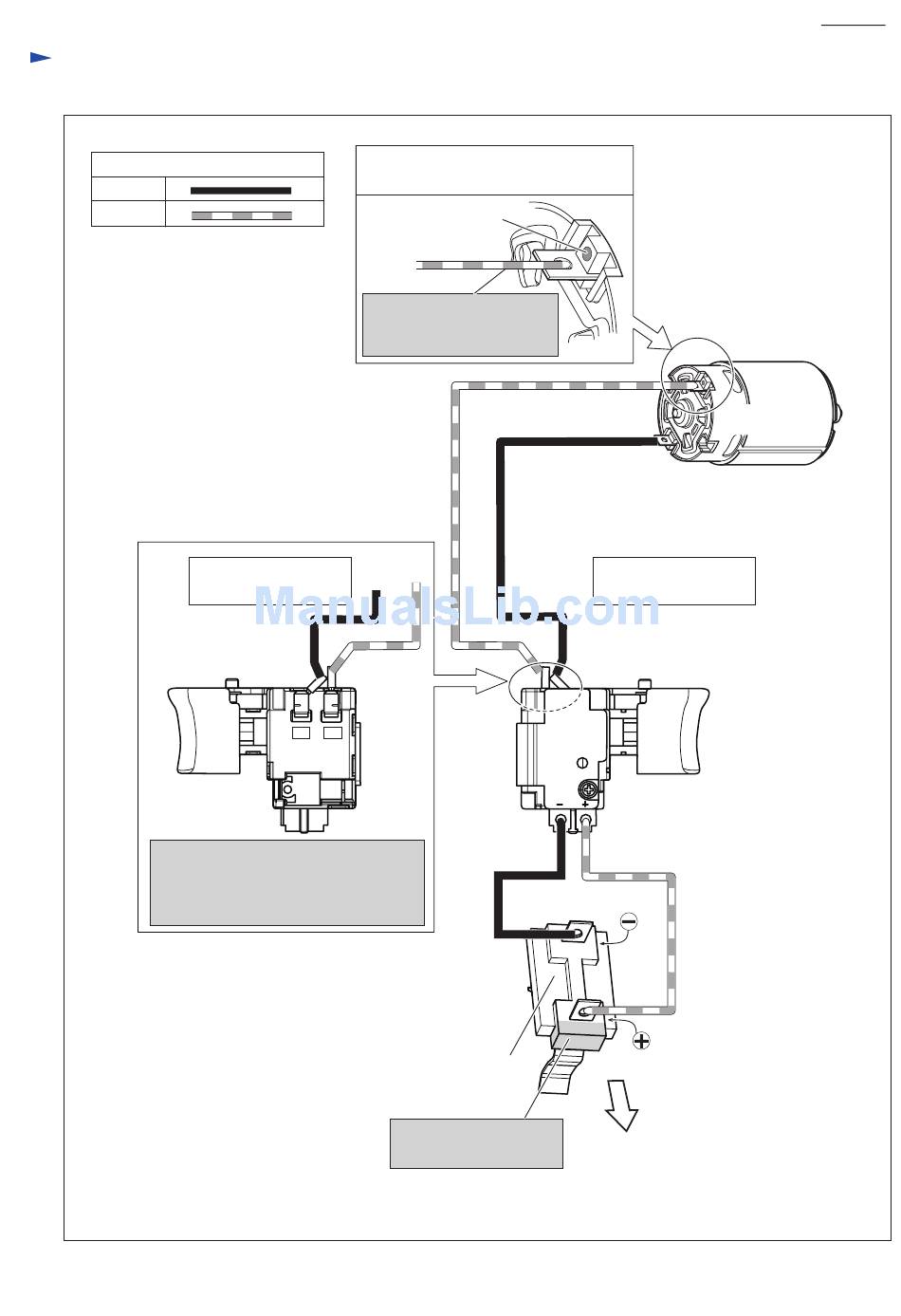

Fig. D-1
Color index of lead wires' sheath
Black
Red
Switch viewed from
Housing set (L) side
Lead wires of DC Motor are connected
to Switch as follows.
* Lead wire (red): to Terminal "M1"
* Lead wire (black): to Terminal "M2"
Connecting of Lead Wire (red)
to DC Motor
red point mark
Connect Lead wire (red) to
the Terminal marked with
red point mark.
M2 M1
Switch
Battery holder
The terminal of this
protruded side is plus.
Switch viewed from
Housing set (R) side
Switch
Housing set (R) side
P 6/ 7
DC Motor
