MTD LE720r Parts List

10
11
9
8
21
6
7
Item Part No. Description
1 791-612605 Hanger
2 791-180915 Drive Shaft Housing Assembly
3 791-181570 Drive Shaft Assembly
4 791-182193 Gearbox Assembly (includes 5, 6, 10, 19 & 20)
5 791-182196 Blade Driver
6 753-1217 Shield Mount Screw Assembly
7 791-182294 Blade Shield
8 791-613223B Edger Blade
9 791-147490 Retaining Washer
10 791-147491 Lock Nut
11 791-182213 Shoulder Bolt
12 791-181591 Wheel Mounting Hardware
13 791-181592 Deflector
14 791-181593 Guide Bracket
15 791-181242 Wheel
16 791-182214 Adjustment Knob
17 791-182215 Lock Washer

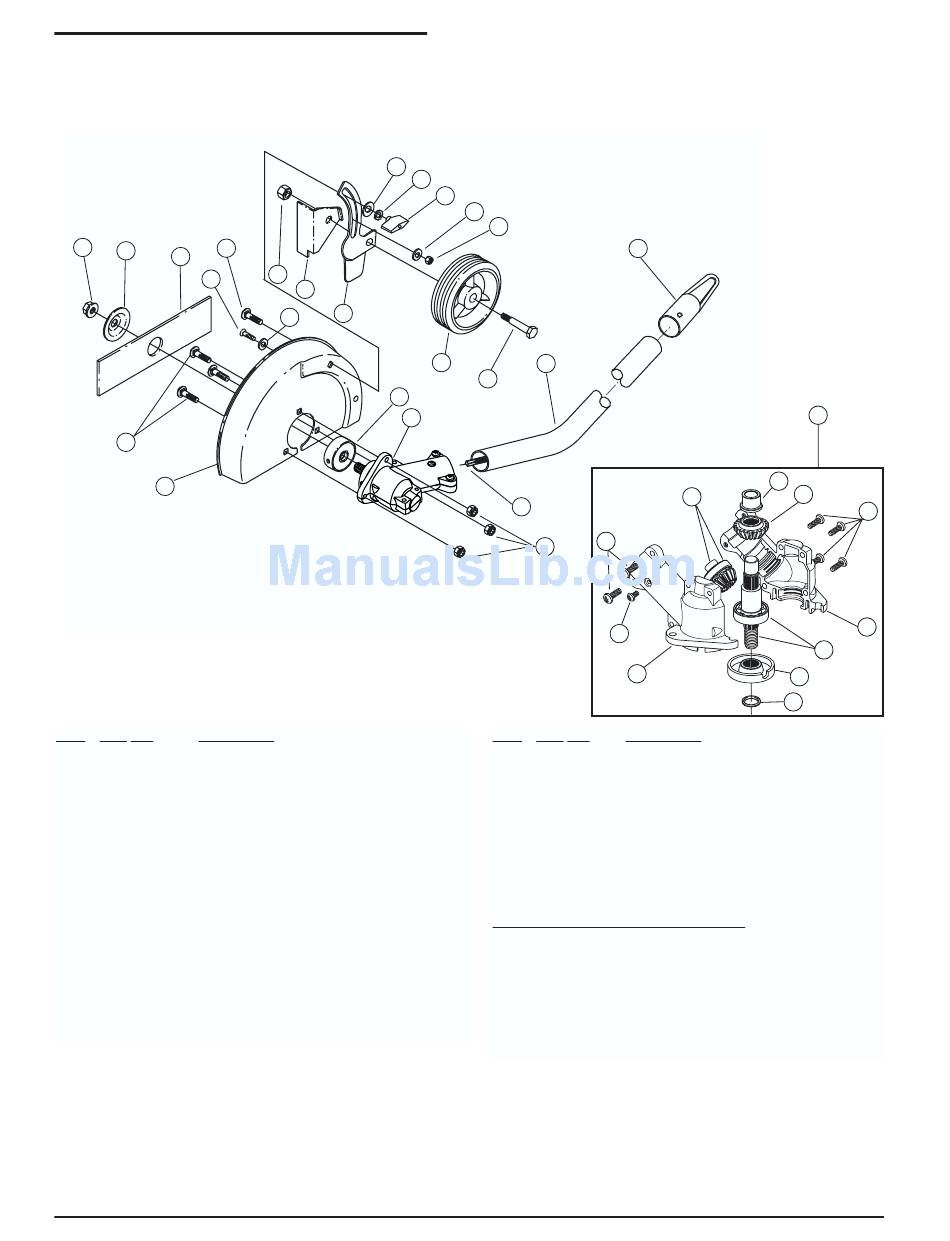

REPLACEMENT PARTS - MODEL LE720r
18
17
16
12
13
14
20
15
5
4
LAWN EDGER ADD-ON
20
19
1
2
12
3
22
6
23
25
Item Part No. Description
18 791-182216 Washer
19 791-182237 Locknut
20 791-182236 Washer
21 791-181858 Screw
22 791-182195 Gearbox Mounting Hardware
23 791-145569 Anti-Rotation Screw
* 791-613226 Locking Rod
* 791-180014b Blade Retainer Kit (includes 9 & 10)
* Items Not Shown
2 Piece Gearbox Assembly Parts – Item 4
24 791-182191 Left Housing
25 791-182192 Right Housing
26 791-182194 Pinion Gear Assembly
27 791-182199 Output Shaft Bushing
28 791-182198 Output Shaft Gear
29 791-182197 Output Shaft Assembly (includes 27 & 28)
30 753-04348 Palnut
PPN 41AJLE-A054
4
27
28
26
22
24
29
5
30
Issued 11/99
