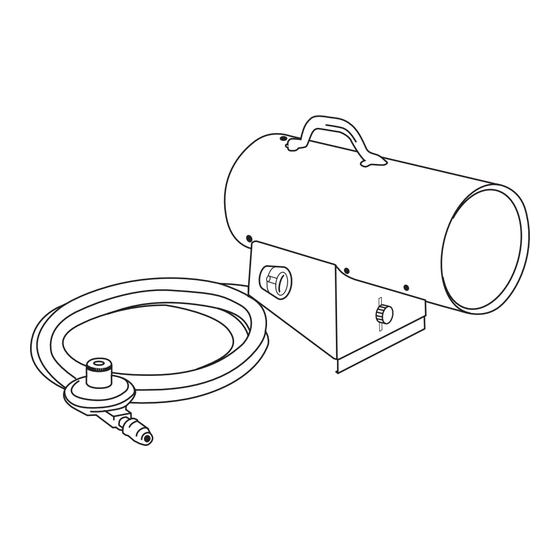

Forced air propane construction heater

Advertisement

OPERATING INSTRUCTIONS AND OWNER'S MANUAL
MR. HEATER
MH55FAV, MH85FAV
MH125FAV
BUDDY-PRO
TS55FAV,
TS125FAV
FORCED AIR PROPANE
CONSTRUCTION HEATER
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light appliance.
Extinguish any open flame.
Shut off gas to appliance.
— Service must be performed by a qualified service agency.
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to page 3.
READ INSTRUCTIONS CAREFULLY: Read and
follow all instructions. Place instructions in a
safe place for future reference. Do not allow
anyone who has not read these instructions to
assemble, light, adjust or operate the heater.
ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-916-3000
STARTING SN#MHC-700550016976
HEATSTAR
HS55FAV, HS85FAV
HS125FAV
70056 Rev. C 4/07
