Instructions for I40XT
GameSpy Digital Camera
THANK YOU for your purchase of the Model I40XT GameSpy Digital Camera.
Please read this booklet before using the unit. If you should have any questions
about this product or any other Moultrie product, please contact us using the
information on the back of this sheet. Please register your camera at
www.moultriefeeders.com to activate your warranty.
LED Flash
Motion Sensor
Camera Lens
LCD Display
ON/OFF/AIM
Battery Compartment
Mode Button
TV Out

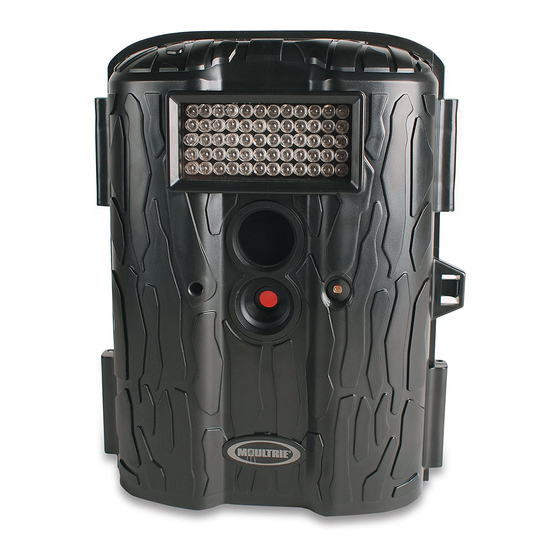

I40XT GameSpy Digital Camera
Battery Compartment
Navigation Buttons
USB Port
SD Card Slot
Aux Power
ON / OFF / AIM SWITCH
Used for turning On, turning Off, or Aiming the camera. When in AIM position the
red LED light on the front of the camera will illuminate. To help find the center field
of view for the camera, stand out in front of the camera and move left or right as you
observe the AIM LED - as you walk away from direct center the LED light will be
less bright. As you walk towards center the LED will appear brighter.
MODE BUTTON
The Mode Button selects the three modes of the camera -Auto, Camera Setup Menu, and
Cellular Setup Menu. When either of the Menu modes are selected, the UP and DOWN
buttons navigate through the menu options. The Mode Button is also used to wake-up
the camera and turn on the display when the camera is in a power saving mode.
MENU NAVIGATION BUTTONS
The menu navigation buttons are used to navigate around the LCD display.
UP/DOWN moves to the next menu option, OK selects the menu option to be
changed. The LEFT/RIGHT buttons select the parameter field to be changed. When a
parameter field is selected it will flash on the LCD display. When a parameter field is
selected, the UP/DOWN buttons navigate through the options for the field and the OK
button selects the parameter value indicated on the display. The OK button is also used
to manually take a picture.
SD MEMORY CARD SLOT
Accepts up to a 16GB SD Card for photo storage. Note: An SD Card must be installed
for the camera to operate.
USB PORT
Download still pictures and video onto your computer by connecting provided cable
POWERPANEL PORT
Accepts the Moultrie PowerPanel accessory (sold separately) only. Refer to
www.moultriefeeders.com for more information.
TV OUT JACK
View still pictures and videos on your TV by connecting a 2.5mm video cable
(sold separately).
