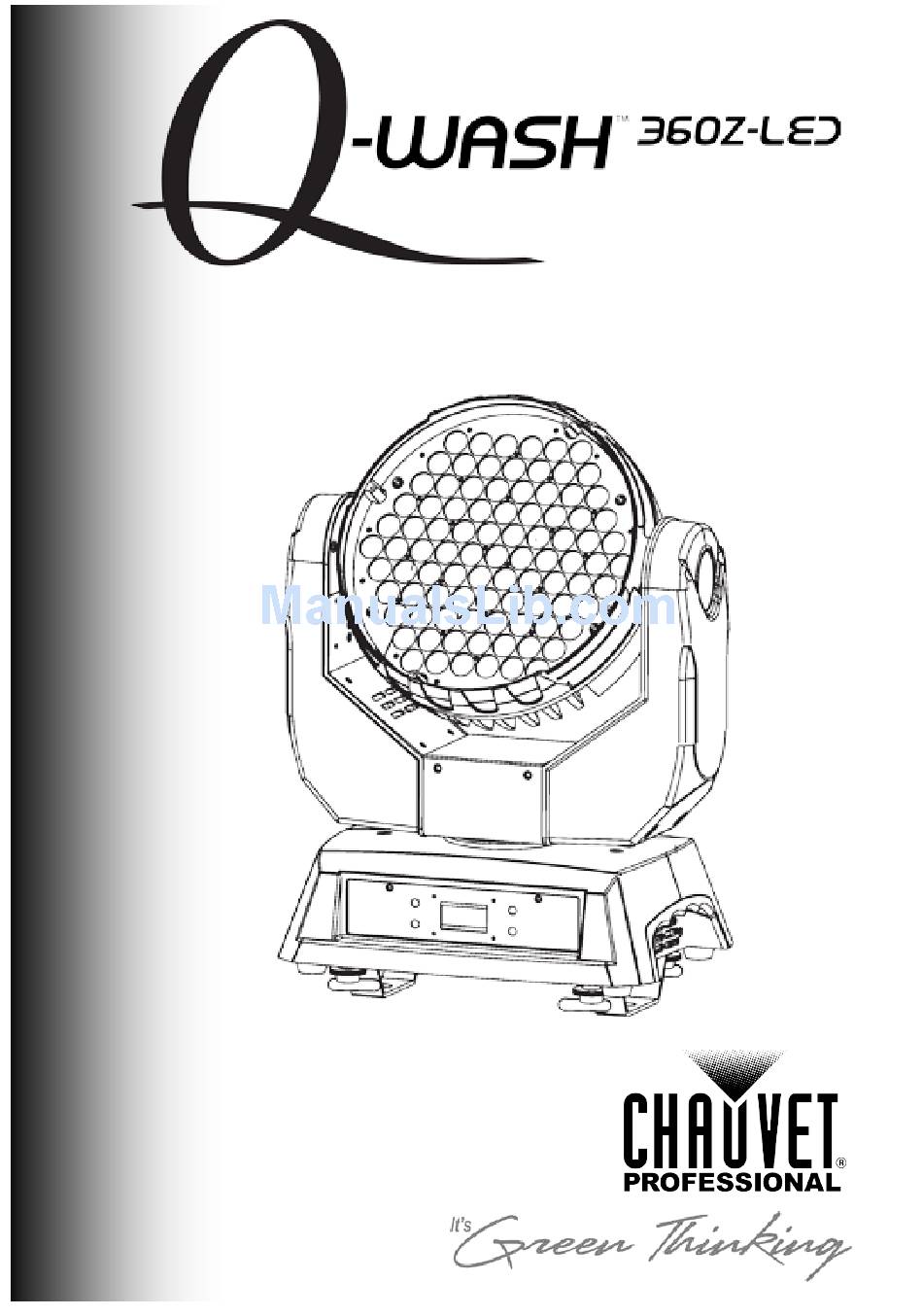

- Page 1 Quick Reference Guide...
- Page 2 Q-Wash 360Z-LED QRG About this The Q-Wash 360Z-LED Quick Reference Guide (QRG) only contains the product’s connection and mounting information as well as the menu options Guide and the DMX values. · This Quick Reference Guide DOES NOT replace the product’s user manual, which you can download from the CHAUVET®...
- Page 3 Q-Wash 360Z-LED QRG · Features 11 or 15-channel RGBW LED moving yoke wash fixture · Pan: 540° · Tilt: 270° · RGBW color static mixing with or without DMX control · Vector speed channel for RGBW color mixing · Variable zoom ·...
-
Page 4: Menu Options
Q-Wash 360Z-LED QRG Menu Options Level Level Level Description ADDRESS 001~512 Selects a starting DMX address RESET NO/YES Resets the fixture’s custom settings HIGH Select the fan’s operation mode. NORMAL NOTE: Fixture’s controller will force the fan to High if the fixture’s internal temperature becomes too high, despite any... - Page 5 Q-Wash 360Z-LED QRG Continued from previous page 1st Level 2nd Level 3rd Level Description DIMMER Selects the dimmer value STROBE Selects the strobe frequency and mode ZOOM 000~255 Select the zoom position EDIT (Cont.) DIMSPEED Selects the dimmer speed TIME...
-
Page 6: Dmx Values
Q-Wash 360Z-LED QRG DMX Values Channel Function Value Percent/Setting BASIC 000 ó 255 0~540º 000 ó 255 0~270º Tilt 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 255 0~100% White 000 ó 005 No function 006 ó... - Page 7 Q-Wash 360Z-LED QRG Channel Function Value Percent/Setting ADVANCED 000 ó 255 0~540º 000 ó 255 Fine movement control Pan Fine 000 ó 255 0~270º Tilt 000 ó 255 Fine movement control Tilt Fine 000 ó 255 Fast~Slow Pan/Tilt Speed 000 ó 255 0~100% 000 ó...
- Page 8 Toll free: (800) 762-1084 Voice: (954) 929-1115 (Press 4) Technical Support Fax: (954) 756-8015 www.chauvetlighting.com World Wide Web Q-Wash 360Z-LED QRG – Rev. 01c © Copyright 2010 CHAUVET® All rights reserved Printed in the P. R. C. Page 8 of 8...
