User Manual
A

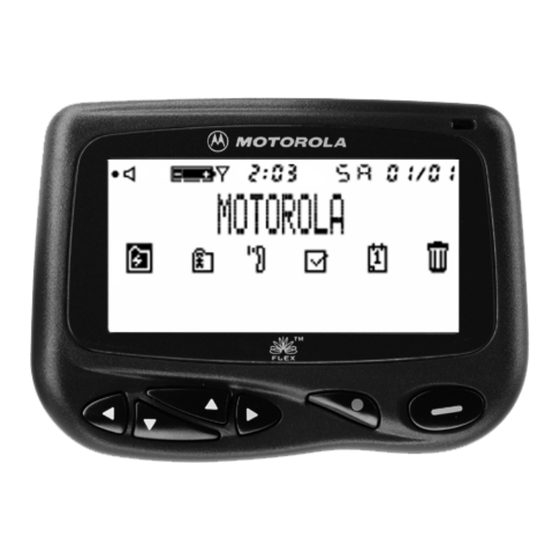

Congratulations on purchasing your Motorola
pager. This product may be referred to as either a CP1250 pager or an
Advisor
Graphix pager, depending on the region where you purchased it.
TM
This new and exciting, eight-line word-messaging display pager integrates
messaging with features such as emergency call, phone list, display zoom, and
event reminder/calendar. Advanced information services (FLEX
Service Protocol) provide simple yet powerful tools for displaying a variety of
information, such as stock updates, sports scores, and late-breaking news.
Check with your service provider to determine if the following messaging
services are available in your region: price alerts, search string, price charts,
other graphics, and emergency call.
Full understanding of what this exciting product offers begins with reading
this user's guide. It provides helpful suggestions for both the first-time user as
well as the experienced user.
A detachable quick reference card is included on the back cover for
your convenience.
This pager can receive three different types of messages depending on the
features available in your pager: personal (
maildrop (
I
). Detailed information about these message types as well as
instructions on how to use them is provided later in this guide.
CP1250/Advisor
®
TM
Graphix
Information
TM
D
), maildrop (
K
), and super
Introduction......................................... 1
Getting Started
Installing/Replacing the Battery............. 2
Control Buttons and Status Screen ....... 3
Turning Your Pager On.......................... 4
Turning Your Pager Off.......................... 5
Backlight................................................ 5
Sending a Test Message ....................... 5
The Function Menu ............................... 6
Setting Up
Setting the Time and Date..................... 7
Setting the Pager Alert Mode ................ 8
Setting the Pager Alert Pattern ............. 8
Setting the Pager Alarm ........................ 9
Quiet Time........................................... 11
Message ........................................ 13
Maildrop Messages
Receiving/Reading Maildrop
Messages ...................................... 16
Maildrop ......................................... 20
Receiving/Reading Super
Maildrop Messages........................ 22
Maildrop On and Off ...................... 26
Battery Information
Your CP1250/Advisor
TM
battery.
Note: Installing the battery incorrectly could result in resetting the alert
mode and time to their default settings, and all messages could be deleted.
Installing/Replacing the Battery
Turn the pager off and place the pager with
the display side down as shown.
Unlock the battery door by sliding the
door lock away from the battery door.
Slide the battery door in the direction of
the arrow indication on the battery door.
Lift the battery door away from the housing to remove it.
Lift the battery out of the battery compartment, noting the positive (+) and
negative (-) markings on both the battery and the pager housing.
Insert the new battery. Make sure you match the positive and negative
markings on the battery with those on the pager housing.
1
2
Table of Contents
Topic On and Off ........................... 26
Quickview Folder and Quickview ........ 28
Price Alert ........................................... 32
Search String ...................................... 33
Price Charts ........................................ 34
Other Graphics .................................... 36
Folders
Moving Messages to Folders .............. 38
Reading Messages in Folders ............ 39
to the Trash ................................... 42
Pager (Emptying the Trash) .......... 43
Task Folder.................................... 44
(in the Event List) .......................... 48
Features ............................................ 51
Use and Care..................................... 53
Graphix
pager operates with one AAA-size alkaline
Advertisement
Table of Contents
Related Manuals for Motorola Advisor Graphix CP1250
Summary of Contents for Motorola Advisor Graphix CP1250
-
Page 1: Table Of Contents
Congratulations on purchasing your Motorola CP1250/Advisor ® pager. This product may be referred to as either a CP1250 pager or an Advisor Graphix pager, depending on the region where you purchased it. This new and exciting, eight-line word-messaging display pager integrates messaging with features such as emergency call, phone list, display zoom, and event reminder/calendar. -
Page 2: Control Buttons And Status Screen
Align the grooves on the battery door with the grooves on the pager housing and slide the battery door closed. Slide the battery door lock toward the bottom of the pager to lock the battery door. Control Buttons and Status Screen H Y L›):)) m )%/)! -
Page 3: Setting The Time And Date
SET AUDIBLE ALERT Press alert. Setting the Pager Alert Pattern The pager must be set for an audible alert to select an alert pattern. There are ten alert pattern options: one standard alert ( through On the Function menu, press... -
Page 4: Quiet Time
The pager can receive and store new messages without any alerts for a certain period of time on a daily basis, regardless of whether the pager is in audible or silent alert mode. All you have to do is turn Quiet Time on and set the time period desired. - Page 5 (history) message is considered to have been read, whether it actually has been or not. The maildrop history files may not be available on your pager if this feature is not enabled by your service provider. press Note: The list moves up; the indicator does not move down.
-
Page 6: Message
). Repeat Steps 3 through 6 to read messages in the selected maildrop. Press to accept the alert. If you turned the alert on, the pager emits this alert as it returns to the Status screen and whenever a message is received for this maildrop. -
Page 7: Turning The Alert For A Super Maildrop On And Off
Additionally, with quickview, you can jump directly from the Status screen to the message level. For more information about quickviews, see page 28. A flashing (alert-enabled) or (alert-disabled) on the Status screen indicates at least one unread super maildrop message has been received. If the super maildrop is alert-disabled, press any directional button until the flashing is highlighted (and the indicator changes to... -
Page 8: Advanced Messaging
J ( Press Press . The selected topic is now a quickview and the pager returns to the list of topics. Press either displayed, indicating the quickview has been established. Note: The original topic information still remains in the topic list. You must access the original topic in the super maildrop to define an alert for the same topic in the quickview folder or quickview. -
Page 9: Breaking The Topic/Quickview Or Quickview Folder Relationship
Flashing Hebrew, Arabic, and multiple language pagers. Price Charts The CP1250/Advisor or other numerical values for instruments or topics in your quickview (not quickview folder). Ten stock price charts can be displayed, one for each quickview you set up. The price charts are based on the values in the original topic messages and start collecting price data for charting once your selected information is put into quickview. -
Page 10: Other Graphics
Note: The date and time setting on the CP1250/Advisor must be correct otherwise the charts will not reflect the current information. A moving window (the timeframe, as determined by your service provider) of price points is tracked for numerical topics that are put into quickview. The charts also display the maximum and minimum price reached. -
Page 11: Reading Messages In Folders
Make sure a previously read personal message is highlighted ( screen. Press Press Press Note: To remove these from the pager, you must empty the trash as described in the next procedure. . A folder-specific Function mezqaob Phone List Function Menu example ) is not displayed. -
Page 12: Deleting Messages From The Pager (Emptying The Trash)
Note: You must immediately set the reminder alarm for the event (that is, work. before the pager returns to the Status screen). Otherwise, the move does not home. take effect and you must move the message to this folder again. -
Page 13: Changing The Reminder Alarm (In The Event List)
Key Click When this feature is enabled and the pager is in audible alert mode ( “click” is emitted whenever a button is pressed. If the pager is in silent alert mode ( ), no “click” is emitted. - Page 14 Do not use alcohol or other cleaning solutions. Functionality and Use of Your Pager For questions pertaining to the functions and use of your Motorola pager please visit our web site at www.motorola.com/pagers. For questions pertaining to your paging service, contact your paging service provider.
- Page 15 • Pagers whose serial numbers do not match on the boards, or pagers in which the board serial numbers don’t match the housing. • Pagers that have been opened by, or had work performed by, anyone other than a Motorola authorized pager service center. • Pagers received with non-conforming or non-Motorola housings or parts.
- Page 16 Service Provider Pager Number and PIN Family and Friends Pager Number and PIN t, Motorola, Advisor, FLEX, and f are trademarks or registered trademarks of Motorola, Inc. Reg. U.S. Pat & Tm. Off. 1999 by Motorola, Inc. All Rights Reserved.
- Page 17 CP1250/Advisor Graphix Quick Reference Card Pager Indicators (top line of pager) On, Quiet Time turned on Audible alert mode Pager alarm turned on Memory full Out of range indicator Battery full indicator Battery 3/4 full indicator Battery 1/2 full indicator...
