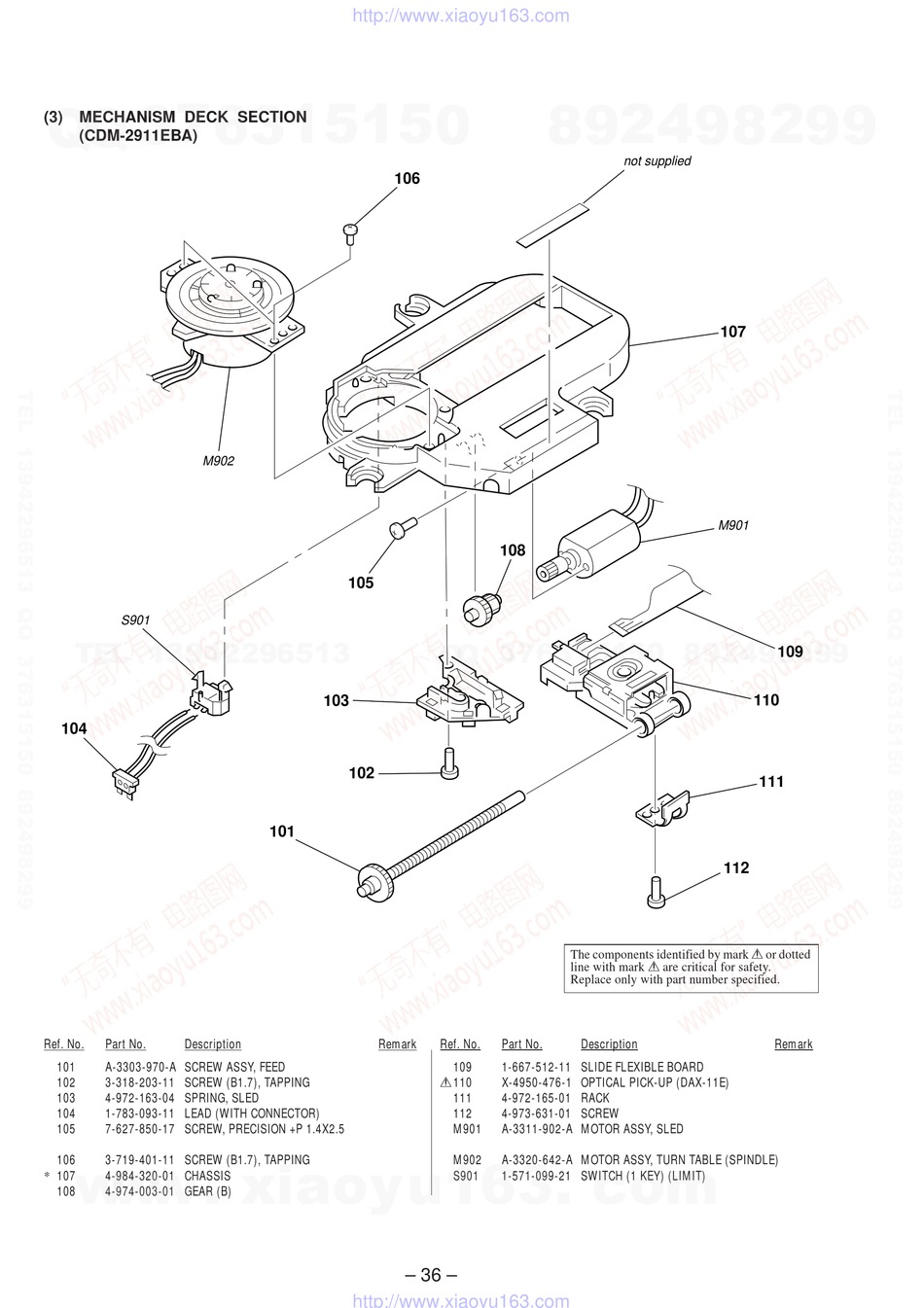

(3) MECHANISM DECK SECTION
(CDM-2911EBA)
M902
S901
TE
L 13942296513
104
Ref. No. Part No. Description
101 A-3303-970-A SCREW ASSY, FEED
102 3-318-203-11 SCREW (B1.7), TAPPING
103 4-972-163-04 SPRING, SLED
www
104 1-783-093-11 LEAD (WITH CONNECTOR)
105 7-627-850-17 SCREW, PRECISION +P 1.4X2.5
106 3-719-401-11 SCREW (B1.7), TAPPING
.
* 107 4-984-320-01 CHASSIS
108 4-974-003-01 GEAR (B)
http://www.xiaoyu163.com
106
105
103
102
101
Remark
x ao u163
y
i
– 36 –
http://www.xiaoyu163.com
2 9
8
108
Q Q
3 6 7 1 3 1 5
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description
109 1-667-512-11 SLIDE FLEXIBLE BOARD
! 110 X-4950-476-1 OPTICAL PICK-UP (DAX-11E)
111 4-972-165-01 RACK
112 4-973-631-01 SCREW
M901 A-3311-902-A MOTOR ASSY, SLED
co
M902 A-3320-642-A MOTOR ASSY, TURN TABLE (SPINDLE)
.
S901 1-571-099-21 SWITCH (1 KEY) (LIMIT)
