Page 1: User Manual

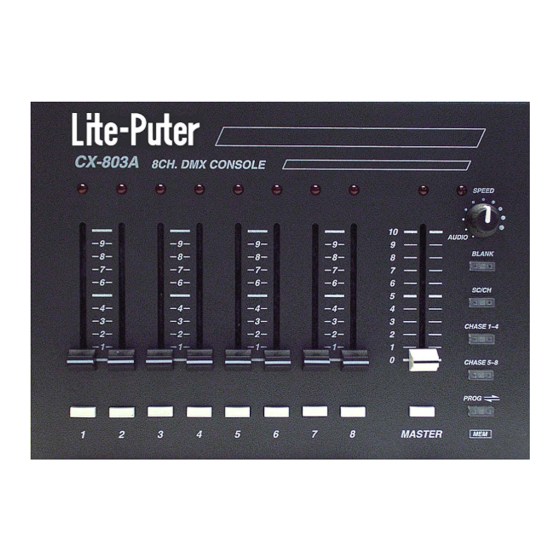

ISO 9001 CERTIFIED CX-803A 8 Channel DMX Console 【 User manual】 Lite-Puter Enterprise Co., Ltd. website：www.liteputer.com.tw E-mail: sales@liteputer.com.tw Lite-Puter CX-803A [EUM-B]... - Page 2 ISO 9001 CERTIFIED Chapter 1. CX-803A Instruction 1-1 Feature Standard DMX 512 signal control 8 dimming control channel 8 control scene setting Chaser function: 1.) Channel chase 2.) Scene chase 3.) Speeding control 4.) Chase Function Flash Audio input 1-2 Specification...
- Page 3 ISO 9001 CERTIFIED 1-3 CX-803A Function CX-803A 8CH. DMX CONSOLE SPEED AUDIO BLANK SC/CH CHASE 1~4 CHASE 5~8 PROG MASTER MASTER-VR Master dimming control Master Flash control MASTER SPEED/ AUDIO Audio / speed chase control BLANK Pause Scene / Channel control...
-
Page 4: Power Switch
AUDIO IN DMX OUT DMX OUT Power supply: DC 12V / 1A Power switch Audio input: 100mV DMX connector: XLR 5-PIN DMX connector: XLR 3-PIN DMX connector: PHONE JACK (RJ11) 1-5 CX-803A audio sensitivity control Audio sensitivity control Lite-Puter CX-803A [EUM-B]... - Page 5 ISO 9001 CERTIFIED Chapter 2. CX-803A operation SCENE setting Select【CH】mode, and move the fader to set the dimming value press【PROG】+【1~8】 to save control scene. STEP-1 press【SC / CH】to select the control channel LED : off in CH mode LED : on in SC mode STEP-2 move【MASTER-VR】to the top...
- Page 6 ○ STEP 3 ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ○ ● STEP 4 Repeat… STEP-3 to adjust the speeding of chase, press【SPEED】to adjust. STEP-4 press【PROG】to change the chase direction. Lite-Puter CX-803A [EUM-B]...
- Page 7 STEP-4 Chase speeding, select the【SPEED】to control STEP-5 Press【PROG】to change the chase direction 2-3-2 AUDIO CHASE STEP-1 turn【SPEED】key to the bottom and feel “ click “ which appointed to audio. BLANK press【BLANK】for pause, and press once again back to the normal mode. Lite-Puter CX-803A [EUM-B]...
