Pro-Peak TAURUS O-IP3001 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL
Part No: O-IP3001

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAURUS O-IP3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Peak TAURUS O-IP3001

  • Battery Charger Pro-Peak Sigma EQ Hyper Operating Manual
    Battery Charger Pro-Peak Sigma EQ Hyper Operating Manual
    Intelligent balance charger microprocessor controlled high-performance rapid charger/discharger with integrated balancer usb pc link and temperature sensor, charge current up to 10a, discharge current up to 5a, 1-6 series of li-ion/li-fe, 1-18 cells of ni (57 pages)

Summary of Contents for Pro-Peak TAURUS O-IP3001

  • Page 1 INSTRUCTION MANUAL Part No: O-IP3001...

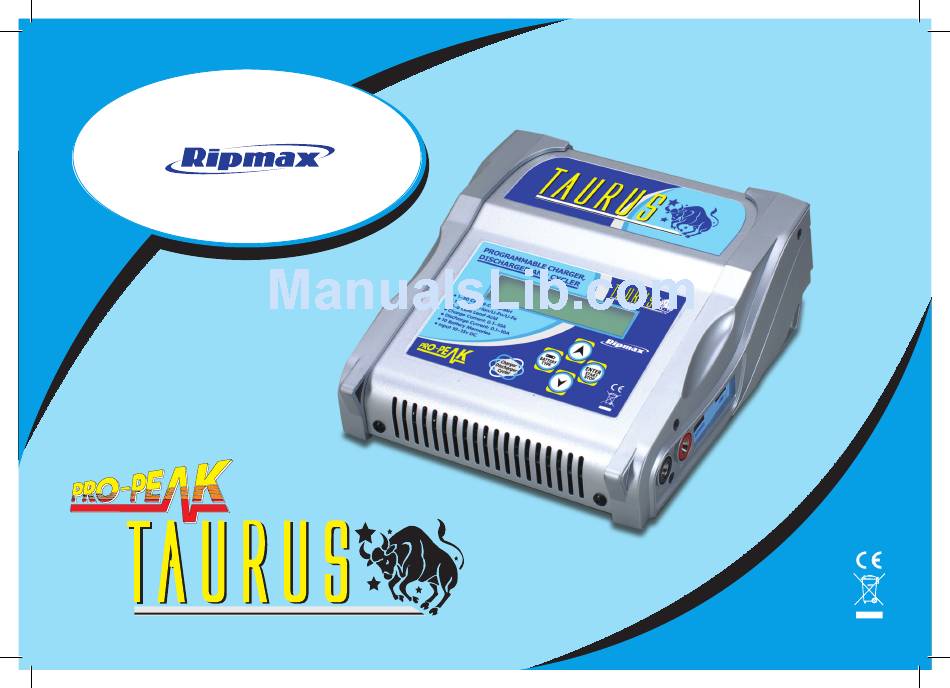

  • Page 2 THE TAURUS CHARGER The Taurus is an innovative multi function charger far superior to existing conventional chargers. This unit is especially designed to maximize charge efficiency using its own unique algorithm. The integral 2 line, 16 character LCD screen displays various information relating to the operating modes and adjustment parameters, as well as key functions - such as the battery charge state, which shows the percentage of capacity remaining.

  • Page 3: Lithium Ion/Polymer Battery Safety Warnings

    LITHIUM ION/POLYMER BATTERY SAFETY WARNINGS immediately and allow to cool. Do not recommence charging until the battery and charger have been checked for compatibility and the Vitally important safety information charger settings have been confirmed as being correct. Ensure that the charger and battery are placed on a non-flammable surface whilst charging and ideally charge outdoors wherever In the unlikely event of the Lithium ION/Polymer battery catching fire possible.
  • Page 4 LITHIUM ION/POLYMER/FE BATTERIES USAGE: Lithium battery packs must NEVER be discharged below 3 volts per If disposing of Lithium battery packs ensure that the pack is cell as this will result in damage to the cells. If the voltage is allowed fully discharged by using a light bulb, electric motor or similar to to drop below 3 volts per cell the battery voltage may seem to completely discharge the pack.
  • Page 5 TAURUS INSTRUCTIONS 1. Button structure Parameter NiCd / NiMH Li-Ion / Polymer Li-Fe Battery cells 1 ~ 30 cells 1 ~ 12 cells 2, 4, 6, 8, 10, 12V pack 1~12 cells Capacity 100 ~ 20000mAh 100 ~ 20000mAh 0.50 ~ 50.00 Ah 100 ~ 20000mAh Charge current 0.1 ~ 10.0A...
  • Page 6 2. Main Menu Flow Chart TAURUS ENTER M0] MEMORY SELECT M0] MEMORY SELECT UP/DOWN C: 5.)A D: 3.0A NiCd 10C 3000mAh NiCd 10C 3000mAh DOWN DOWN 3. Battery data setup menu ENTER [NiCd] BATTERY A2] MEMORY SELECT CHARGE MODE NiCd 10C 3000mAh CHARGE START NiMH AUTOMATIC C:5.0A d15V/C...
  • Page 7 3. Battery Data Setup Menu In this mode, you can set each battery type / cell number / battery capacity in a memory. Adjust the desired parameters with UP & DOWN buttons. Factory default parameters of each battery type in memories. CELL CAPACITY CHARGE...
  • Page 8 M1] BATTERY SETUP M1] BATTERY SETUP M1] BATTERY SETUP Pb 12V 15.00Ah Pb 12V 15.00Ah Pb 12V 15.00Ah DOWN UP/DOWN UP/DOWN M1] BATTERY SETUP M1] BATTERY SETUP M1] BATTERY SETUP LiFe 6.6V 3000Ah LiFe 6.6V 3000Ah LiFe 6.6V 3000Ah UP/DOWN UP/DOWN 4.
  • Page 9 5. Discharge data Setup Menu NiCd & NiMH battery Set discharge rates and discharge cut-off voltages. DISCHARGE MODE D2.0A 0.8V/CELL DISCHARGE MODE DISCHARGE MODE D2.0A 0.8V/CELL D2.0A 0.8V/CELL UP/DOWN UP/DOWN Li-lon/LiPo/LiFe battery Set discharge rates and discharge cut-off voltages. DISCHARGE MODE D2.0A 3.0V/CELL DISCHARGE MODE DISCHARGE MODE...
  • Page 10 7. User Data Setup Menu Each user setup data is separately stored in each memory. USER CONDITION SETUP ENTER ENTER ENTER ENTER ENTER TEMPERATURE TRICKLE CHARGE DELAY BETWEEN BUZZER VOLUME CUT-OFF: 00°C CURRENT: 000mA CHG/DCHG: 00min UP/DOWN UP/DOWN UP/DOWN UP/DOWN UP/DOWN 8.
  • Page 11 9. Operating Display If the ENTER button is pressed at Charge, Discharge, or Cycle displays, the selected mode is activated. It is possible to change charge rates with the UP & DOWN button during operation, however, the charge rates can not be adjusted in Auto mode, or during CV (Constant Voltage) charge.
  • Page 12 Note : In this Lithium mode, the charged amount can be shown as a percentage. So, you can stop charging and disconnect the Lithium battery pack if this percentage is indicated 80% ~ 90% as you should be able to use this 80%~90% charged battery pack already if you want. NiCd, NiMH, Pb DISCHARGE OPERATION Batt Type STOP...
  • Page 13 CYCLE OPERATING CYCLE OPERATING MOD CYCLE OPERATING MODE CHARGE “C” FLASH C1D CHARGE, CYCLE TIME, DISCHARGE DELAY “1” FLASH DISCHARGE, CYCLE TIME, CHARGE DISCHARGE “D” FLASH ENTER CYCLE MODE [NiCd] BATTERY C1D 000:00 00000 C1D 000:00 00000 TIME: CYCLE START... 00’...
  • Page 14 END OPERATION If the ENTER button is pressed for 2 seconds in the END display, it reverts to the main display. (If the ENTER button is briefly pressed or the battery pack is disconnected, it won’t revert to the main display.) Operating data can be referred to the above “8.
  • Page 15 10. Message Display INPUT VOLTAGE When the input voltages exceed the range of 11~15V. ERROR 0.00Vi OUTPUT BATTERY When the charger starts without connecting to the battery pack. CONNECT ERROR OUTPUT BATTERY When the charger starts without connecting the battery pack in reverse. REVERSE POLARITY OUTPUT BATTERY When the battery pack is disconnected during operation.
