(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS
7. Attach the hood assembly to the ceiling bracket using (8)
M4 x 10mm machine screws (2 for each support leg).
8. Connect metal duct to ceiling duct and seal with duct tape.
9. Connect power cable to house wiring inside of electrical
outlet box. Black to Black, White to White, and Green to
Green or Bare wires. Secure power cable to wiring box with
appropriate connector and re-attach outlet box cover.
(4) M4 x 8mm
SHEET METAL
SCREWS
10. Slide the inner flue up to the ceiling and secure with (4) M4
x 8mm sheet metal screws.
11. Remove the protective coating from the hood and the
outer flue.
F R
O N
T
POWER
CABLE

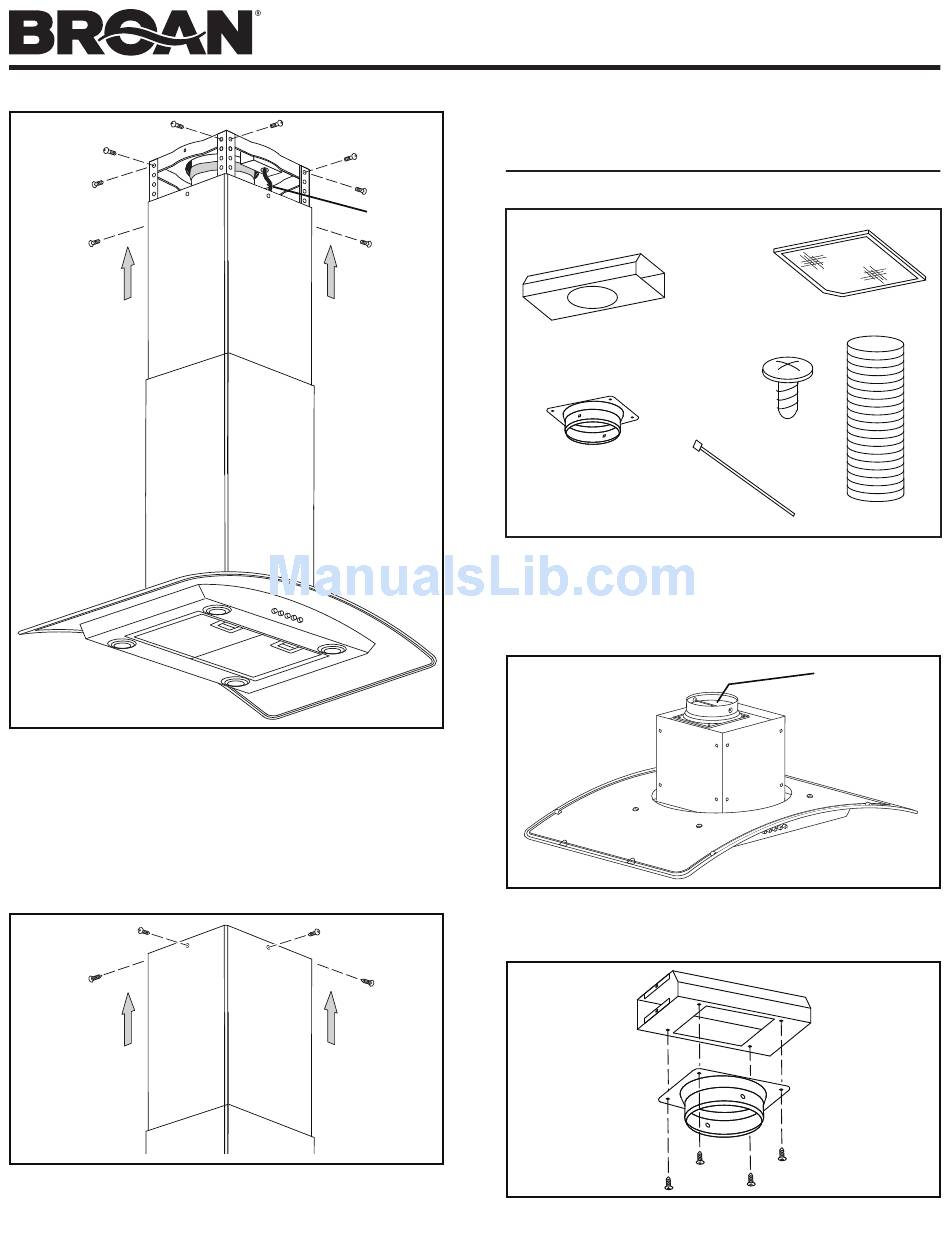

INSTALL THE HOOD
(Non-Ducted Installation Only)

NON-DUCT OPTION AVAILABLE ONLY IN THE U. S.

T
F R O N
NON-DUCT
8 MOUNTING
PLENUM
SCREWS
(M4 x 8
Pan Head
Sheet Metal)
NON-DUCT PLENUM
COLLAR
NOTE:
Non-ducted installations require Non-Duct kit; model RK59
(purchased separately).
Do not use plastic or rigid metal duct.
1. Remove the damper flaps from the damper / duct connector
and discard flaps.
(4) M4 x 8mm
SHEET METAL
SCREWS
2. Attach non-duct collar to non-duct plenum using (4) M4 x
8mm sheet metal screws.
MODEL B5936SS
NON-DUCTED
RECIRCULATION
FILTER
2 TIE
WRAPS
FLEXIBLE DUCT
DAMPER
FLAPS
F R O N T
Page 5
