GAS-FIRED WATER HEATER
Category: I 2E+
Installation and use instructions
These installation and User instructions are intended for appliances installed in Great Britain.
.
.
.

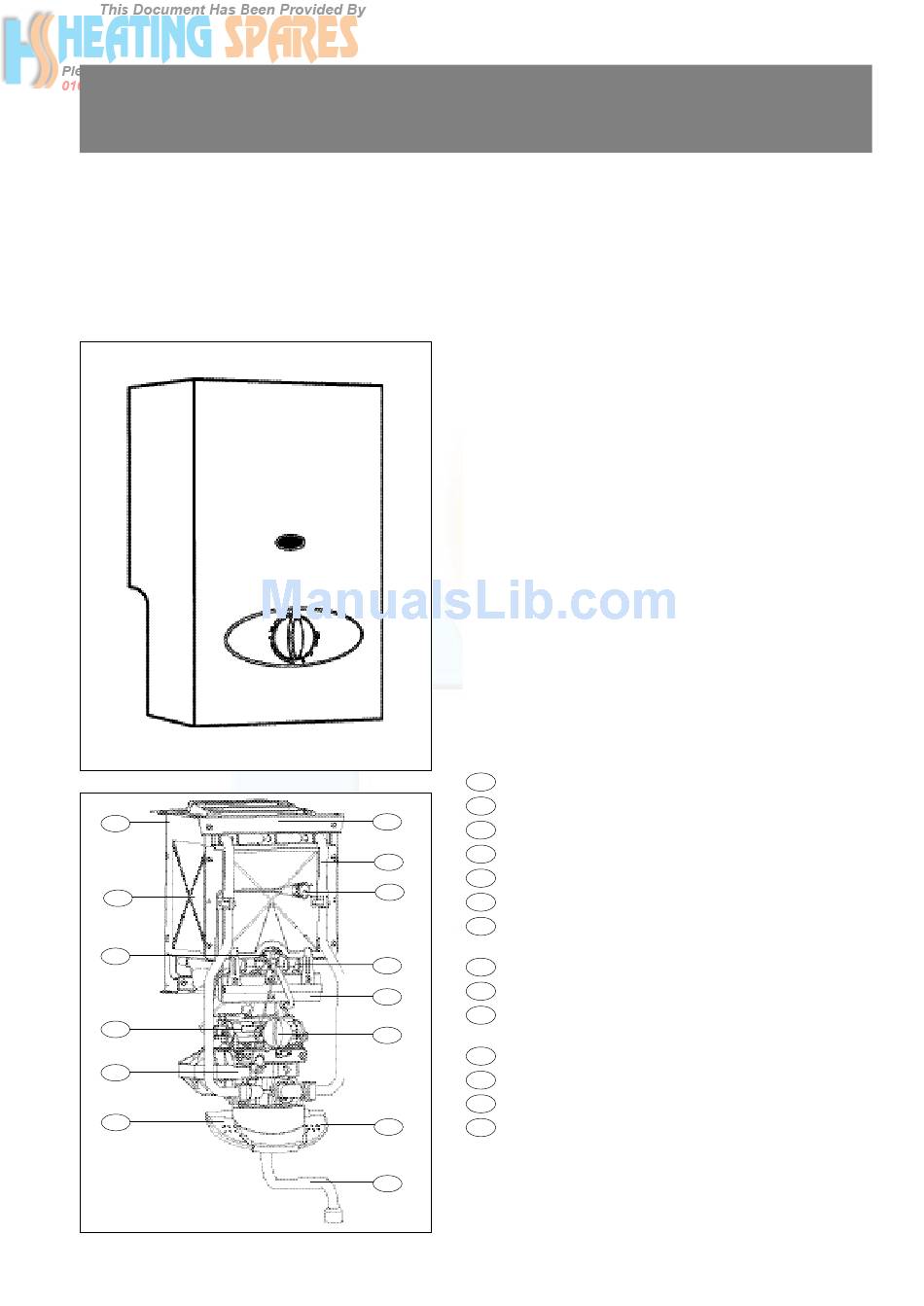

Fig. 1
Model
S
M
I
1
4
7
8
10
12
.
.
.
Fig. 2
Model
A
M
I
Supplied By www.heating spares.co Tel. 0161 620 6677
CELT STAR C
This appliance, intended for intermittent use, is designed to sup-
ply hot water to one draw off point such as the kitchen sink or a
wash basin.
Appliance identification :
Celt Star CT with mixing taps - A.M.I
Celt Star C without mixing taps - S.M.I
Contents :
10. Overflow safety...................................................................8
11. Operating Defects ..............................................................8
Description:
The water heater is packaged in one box.
Inside its one-piece case, the water heater comprises:
2
3
11
5
6
9
13
14
2. Installation Requirements ..................................................3
3. Heater installation ..............................................................4
4. Commissioning...................................................................5
5. Fitting the case...................................................................6
6. Controls and use................................................................6
7. Frost precautions ...............................................................7
8. Servicing ............................................................................7
9. Guarantee ..........................................................................8
1
- One-piece chassis made of protected steel sheet
2
- Deflector
3
- Heat exchanger made of protected copper
4
- Combustion chamber
5
- Multi-gas burner made of stainless steel
6
- Removable injector-holder manifold
7
- Pilot with fail-safe by thermocouple and atmosphere
sensing device.
8
- Gas valve
9
- Gas ignition and flow control knob
10
- Water valve with built-in overheat limiter and scale
reducer
11
- Fouling prevention thermal safety device
12
- Hot water tap ("A.M.I" models)
13
- Cold water tap ("A.M.I." models).
14
- Spout
Page
c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for C&M CELT STAR C
Summary of Contents for C&M CELT STAR C
-
Page 1: Table Of Contents
Appliance identification : Celt Star CT with mixing taps - A.M.I Celt Star C without mixing taps - S.M.I Contents : Page 1. Characteristics ..............2 2. -
Page 2: Technical Characteristics
1. Technical characteristics and dimensions TECHNICAL CHARACTERISTICS Rated heat input ............................ =10.0 kW (34120 Btu/h) Rated power output ..........................=8.5 kW (29002 Btu/h) Flow rate of water heated from 15 to 40 °C ................... = 5 I/min Flow rate of water heated from 15 to 65 °C ................... = 2.5 I/min Minimum water pressure to operate the “normal pressure”... -
Page 3: Installation Requirements
2. Installation Requirements other than by British Gas or their specifically authorised 2.1 Related Documents contractor. The installation of the heater must be in accordance with the relevant requirements of the Gas Safety (Installation and Use) Installation pipes should be fitted in accordance with BS 6891: Regulations, Building Regulations and the Byelaws of the local Pipework from the meter must be of adequate size. -
Page 4: Heater Installation
3. Water heater installation Mounting the appliance - fix the wood screw of the support bracket 395 mm above the centreline of the water outlet - remove the gas control knob (fig. 2) pulling it towards you - remove the four screws "V" (fig. 10) securing the case - remove the case - position the appliance, engaging the slot cut in the chassis on the support bracket (fig. -
Page 5: Commissioning
4. Commissioning - make sure that the cold water inlet valve item (fig. 6) and the gas valve item (fig.5) are open - make sure that there is no leakage along the entire gas line - fit the gas knob temporarily - turn on the water heater - follow the instructions in section 6, Controls and use. -
Page 6: Fitting The Case
5. Fitting the case - remove the protective film from the case - fit the two pinch nuts, delivered in the accessories pouch, on the deflector - position the case top-first (fig. 10) - fit the four screws “v” - fit the fascia attachment screw (fig. 10a) (supplied in the accessories pouch) - fit the gas control knob. -
Page 7: Frost Precautions
6. Controls and use (continued) To light the pilot Turn the gas control knob in the direction of the arrow. The click at the " " (fig. 13) generates the pilot ignition spark. Note :The first time the pilot is lit, it may be necessary to wait a few moments for the air to be pushed out of the pilot circuit before the pilot lights. -
Page 8: Guarantee
9. Guarantee Your water heater is guaranteed for a period of one year. The terms of the guarantee are explained in the guarantee certificate. IMPORTANT : Make sure that the detachable coupon on the certificate has been returned to CHAFFOTEAUX & MAURY. In order to benefit from the guarantee, your water heater must have been installed, adjusted and commissioned by a qualified professional.
