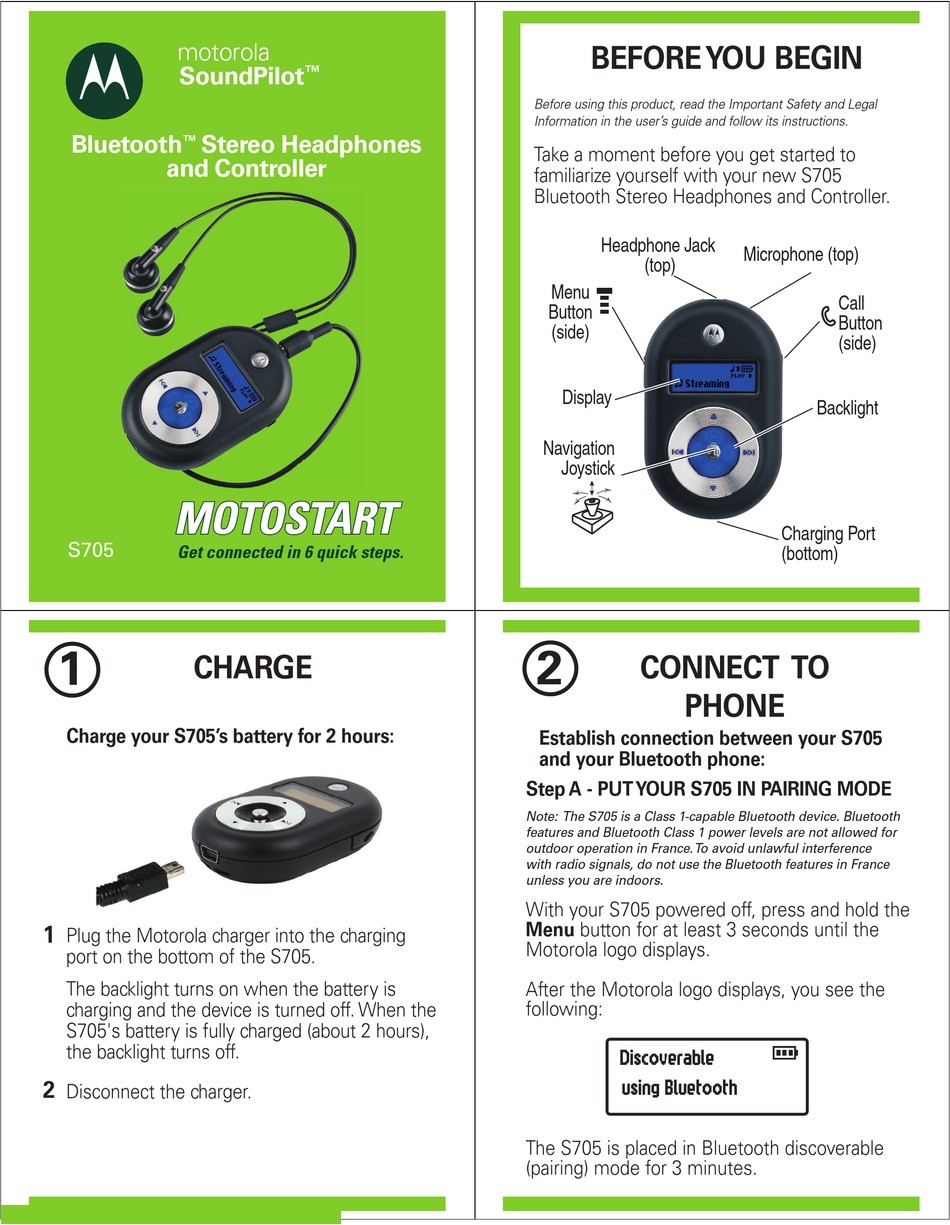

Motorola SoundPilot S705 Quick Start Manual

Bluetooth stereo headphones and controller.
Hide thumbs

motorola
SoundPilot
Bluetooth
Stereo Headphones
and Controller
S705
Get connected in 6 quick steps.
1
CHARGE
Charge your S705's battery for 2 hours:
1
Plug the Motorola charger into the charging
port on the bottom of the S705.
The backlight turns on when the battery is
charging and the device is turned off. When the
S705's battery is fully charged (about 2 hours),
the backlight turns off.
2
Disconnect the charger.
Before using this product, read the Important Safety and Legal
Information in the user's guide and follow its instructions.
Take a moment before you get started to
familiarize yourself with your new S705
Bluetooth Stereo Headphones and Controller.
Headphone Jack
(top)
Menu
Button
(side)
Display
Navigation
Joystick
2
CONNECT TO
PHONE
Establish connection between your S705
and your Bluetooth phone:
Step A - PUT YOUR S705 IN PAIRING MODE
Note: The S705 is a Class 1-capable Bluetooth device. Bluetooth
features and Bluetooth Class 1 power levels are not allowed for
outdoor operation in France. To avoid unlawful interference
with radio signals, do not use the Bluetooth features in France
unless you are indoors.
With your S705 powered off, press and hold the
Menu button for at least 3 seconds until the
Motorola logo displays.
After the Motorola logo displays, you see the
following:
Discoverable
using Bluetooth
The S705 is placed in Bluetooth discoverable
(pairing) mode for 3 minutes.
Microphone (top)
Call
Button
(side)
Backlight
Charging Port
(bottom)
r
