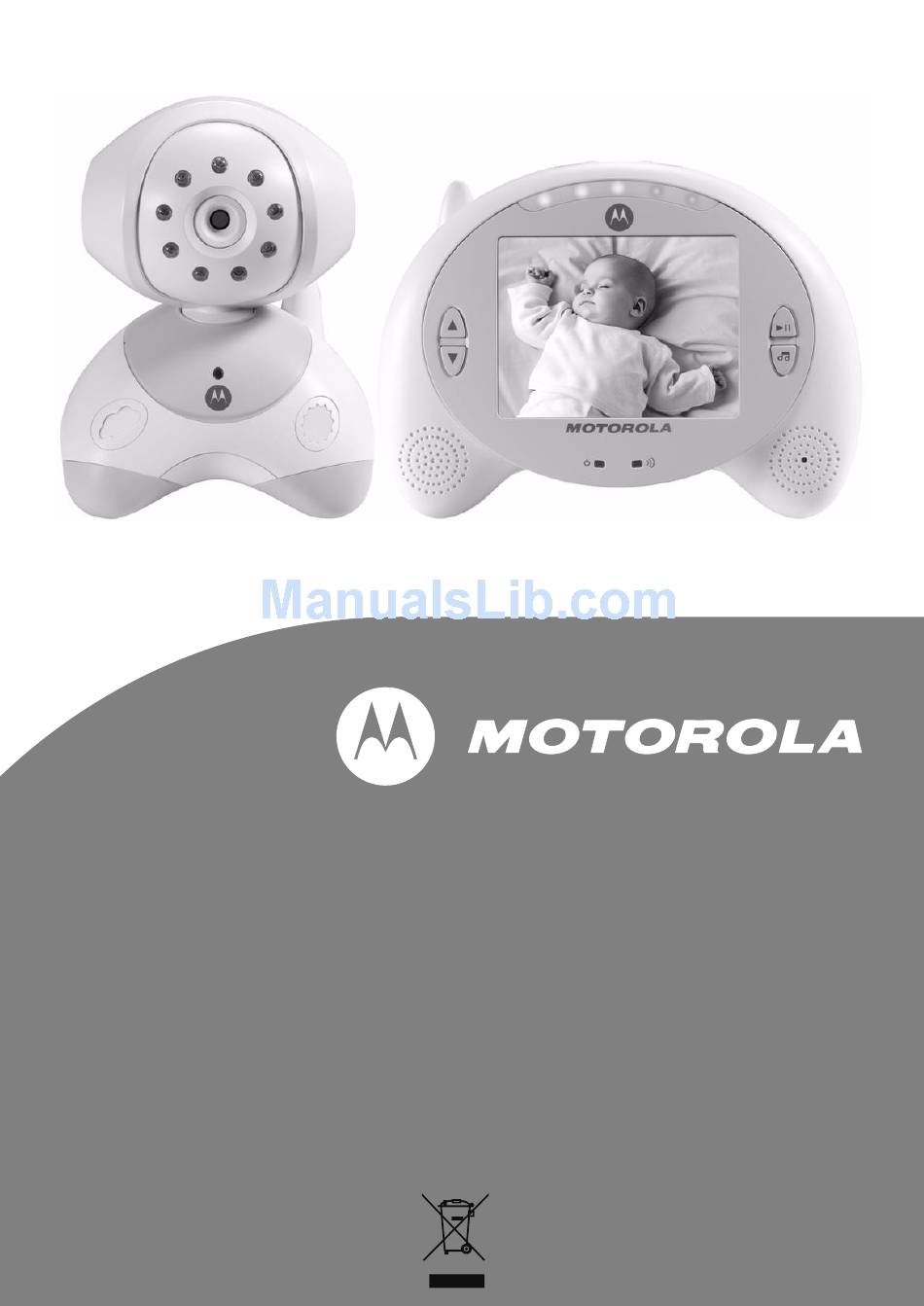

USER'S GUIDE
MBP35BL, MBP35BW
BABY MONITOR
USER'S GUIDE
The features described in this user's guide are subject to
modifications without prior notice.

Advertisement

loading

  Related Manuals for Motorola MBP35BL

  Summary of Contents for Motorola MBP35BL

  • Page 1 USER’S GUIDE MBP35BL, MBP35BW BABY MONITOR USER’S GUIDE The features described in this user’s guide are subject to modifications without prior notice.
  • Page 2 Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP35BL, MBP35BW. Now you can see and hear your baby sleeping in the other room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status.
  • Page 3 Overview of your Parent unit 1. Display (LCD screen) < > 2. Up / Down Normal mode: Adjust speaker volume Menu mode: Adjust setting 3. Power and Low battery LED 4. Voice Activation 5. Lullaby Play/Stop key Press once to play lullaby. Press again to stop playing.
  • Page 4: Overview Of Baby Unit

    Use of other 2.4GHz products, such as wireless networks, ® Bluetooth systems or microwave ovens may cause interference with this product, so keep the baby monitor away from these types of products, or turn them off if they appear to be causing interference. •...
  • Page 5: Table Of Contents

    Baby unit power supply ...8 Parent unit battery Installation ...8 Parent unit power supply ...9 Registration ...10 3. Using the Baby Monitor MBP35BL, MBP35BW ... 11 Setting up ...11 Night vision ...11 Talk function ...11 Adjusting the volume of the Parent Unit ...11 Playing a lullaby for your baby...12...
  • Page 6: Safety Instructions

    • This product is not a toy. Do not allow children to play with it. • This baby monitor is not a substitute for responsible adult supervision. • Keep this User’s Guide for future reference. • Do not place the baby unit or cables in the cot or within arm's reach of the baby (the unit should be at least 1 metre away).
  • Page 7: Getting Started

    2. Getting started Baby unit battery installation The camera uses either 3 AA size batteries (non-rechargeable batteries recommended) or the household power mains. The Baby unit has no charging function! IMPORTANT The non-rechargeable batteries for the Baby unit are not supplied with your product.
  • Page 8: Baby Unit Power Supply

    Baby unit power supply 1. Connect the small plug of the power adapter to the baby unit and the other end to the mains socket (230V/50Hz). NOTE Only use the enclosed power adapter (6V DC / 800mA). 2. Slide the power switch to the in green.
  • Page 9: Parent Unit Power Supply

    1. Loosen the screw in a counterclockwise direction using a small screwdriver. Remove the battery cover. 2. Insert the wire tab of the rechargeable battery pack into the contact slot as shown above and fit the battery pack into the compartment. 3.
  • Page 10: Registration

    Registration The Baby monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit.
  • Page 11: Using The Baby Monitor Mbp35Bl, Mbp35Bw

    3. Using the Baby Monitor MBP35BL, MBP35BW Setting up • Place the camera in a convenient location and point the lens of the camera towards the area you want to monitor. • Tilt the head of the baby unit up or down to your desired position until the parent unit gets a good reception of the baby.
  • Page 12: Playing A Lullaby For Your Baby

    10 seconds of lullaby playback will adjust the volume of the Parent Unit. during playback. There are 5 until is displayed on the display screen. appears on the display screen. Using the Baby Monitor MBP35BL, MBP35BW < > will appears on the...
  • Page 13: Mbp35Bl, Mbp35Bw Parent Unit Menu Options

    . The night light on the Baby Unit will be switched on and off accordingly. 3. Press repeatedly to exit. MBP35BL, MBP35BW Parent Unit Menu Options appears on the display screen. appears on the display screen. to change the temperature display to ºC...
  • Page 14: Voice Activation

    The LCD screen on the parent unit will be switched back on when the sound level of the baby reaches the Voice Activation threshold or when any key on the parent unit is pressed. appears on the LCD screen. ), the Voice Activation MBP35BL, MBP35BW Parent Unit Menu Options (the default...
  • Page 15: Disposal Of The Device (Environment)

    5. Disposal of the device (environment) At the end of the product lifecycle, you should not dispose of this product with normal household waste, but take the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.
  • Page 16: Cleaning

    6. Cleaning Clean the MBP35BL, MBP35BW with a slightly damp cloth or with an anti- static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the product with thinners or other solvents and chemicals –- this may cause permanent damage to the product...
  • Page 17: Help

    7. Help Display No display • Try recharging or replacing the batteries. • Reset the units. Unplug the units’ electrical power, including the batteries and both mains adapters, then plug them back in. • Is the unit turned on? Press and hold Is the VOX mode on? •...
  • Page 18: General Information

    Subject to the exclusions and limitations contained below, Binatone Electronics International LTD. warrants the Motorola branded consumer products that it manufactures (“Products”) and the Motorola branded or certified accessories sold for use with these Products that it manufactures (“Accessories”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below.
  • Page 19 REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL WARRANTIES AND MOTOROLA AND BINATONE ELECTRONICS INTERNATIONAL LTD. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE ELECTRONICS INTERNATIONAL LTD.
  • Page 20 ACCESSORIES AND BINATONE ELECTRONICS INTERNATIONAL LTD. SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR ANY CLAIMS OR DEMANDS MADE BY ANY THIRD PARTY OR MADE BY YOU ON BEHALF OF ANY THIRD PARTY TO THE FULL EXTENT THESE DAMAGES OR CLAIMS MAY BE DISCLAIMED BY LAW. Some states, countries or jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may...
  • Page 21 Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (e) other acts or omissions which are not the fault or neglect of Motorola or Binatone Electronics International LTD., are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or...
  • Page 22 How to Obtain Warranty Service or Other Information? To obtain service or information, please call: 0845 218 0890 in the UK (65) 68412668 in Singapore You will receive instructions on how to ship the Products or Accessories, the shipment of which shall be at your own risk and expense, to a BINATONE ELECTRONICS INTERNATIONAL LTD.
  • Page 23: Technical Specifications

    Technical Specifications Baby unit Frequency Maximum range Image sensor Lens IR LED Power Parent unit Frequency Display Display colours Brightness control Power General Information 2.4GHz to 2.4835GHz Extended range up to 450 feet* *Based on unobstructed line of sight. Actual range will vary depending on surroundings.
  • Page 24 General Information...
  • Page 25 MOTOROLA and the Stylized M Logo, and other Motorola trademarks and trade dress are owned by Motorola, Inc. and are used under license from Motorola, Inc. MOTOROLA and the Stylized M Logo are registered in the US Patent &...
