Owner's Manual
Model PRO-900
Installation Manual
3 Channel Remote Start / Keyless Entry System
Installation Instructions
This Unit Is Intended For Installation In Vehicles With
12 Volt Negative Ground Electrical Systems,
Gasoline or Diesel With True Tach Reference
And Automatic Transmissions Only.
Kit Contents

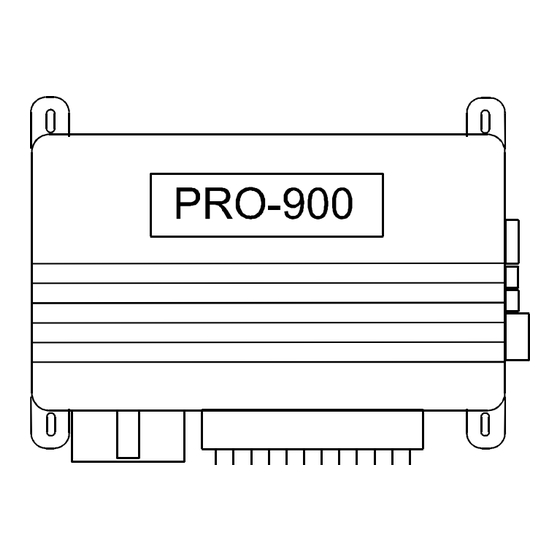

(1) Control Module
(1) 3 Button High Frequency Transmitters
(1) 5 Button Two Way LED Based Transceiver
(1) On Glass Mount Superheterodyne Transceiver
(1) Multi Pin Input/Output Harness
(1) Six Pin Power Harness
(1) Diesel Wait To Start Input
(1) Auxiliary 4 Pin Output Harness
(1) 2 Pin Door Lock Harness
(2) 30 Amp In-line Fuse Holders With Fuses
(1) Control Switch
(1) Plug In Push-Button Programming Switch
(1) Ring Terminal
(4) 1/2" Long Screws
(1) Pin Switch
(1) Remote Start Warning Label
(1) Literature Package
128-6847A
Revision A: Changed feature list, page 10, 2-24-04
1 of 16
Advertisement
Table of Contents
Related Manuals for Audiovox Pursuit PRO-900
Summary of Contents for Audiovox Pursuit PRO-900
-
Page 1: Installation Instructions
Model PRO-900 Installation Manual 3 Channel Remote Start / Keyless Entry System Installation Instructions This Unit Is Intended For Installation In Vehicles With 12 Volt Negative Ground Electrical Systems, Gasoline or Diesel With True Tach Reference And Automatic Transmissions Only. -
Page 2: Installation Of The Major Components
This Remote Start/Keyless Entry System is designed for use with Automatic Transmission Vehicles Only! The unit provides wait to start input for glow plug pre-heat which will be used for all diesel applications. If this wire is not connected, then the unit will remain in the Gasoline mode setting, which will crank the car when the RF signal is received with no delay. - Page 3 THE TRANSCEIVER/ANTENNA ASSEMBLY: The Superheterodyne Transceiver Antenna Assembly provided with this unit allows routing from below the dash- board for maximum operating range. Choose a location above the belt line (dashboard) of the vehicle for best reception. Special considerations must be made for windshield glass as some newer vehicles utilize a metallic shielded window glass that will inhibit or restrict RF reception.
- Page 4 Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal injury and property damage. SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS. BLUE WIRE: Ignition 1 Output Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the ignition key is turned to the to the "ON"...
- Page 5 WIRING CONNECTIONS: 12 Pin Input / Output Harness Black Wire: Chassis Ground Source Connect the Black wire to a known vehicle ground source or to a solid clean metal part of the chassis. Be certain to remove any paint or grease and secure this wire with a self-tapping screw and ring terminal. BLACK w/WHITE TRACER WIRE: Control Switch The Black w/ White tracer wire provides ON-OFF control of the Remote Starter.
- Page 6 Brake Switch Positive Shutdown Detail YELLOW w/ BLACK Tracer Wire: + 12 Volt Alarm By - Pass Output NOTE: You must disconnect the ignition input of the alarm from any other wire that it is presently connected to in the vehicle. This wire provides a + 12 Volt output when the ignition key is turned to the “ON”...
- Page 7 A. Shock Sensor By Pass: If there is Shock Sensor used with an alarm system and it is not shunted during the Remote Start activation period, then vibration from the running vehicle can cause the alarm to trigger. In this case, connect the Light Blue Wire to terminal #86 of a external relay.
-
Page 8: Wiring The 4 Pin Auxiliary Output Harness
Green/Orange Wire: Tach Sensor Input This wire will continually monitor the engine tach rate while the unit is under power of the Remote Start module. This wire will be routed to the vehicle ECM tach input or through the firewall into the engine compartment and connect to the negative side of the ignition coil. - Page 9 NOTE: The outputs above are low current outputs and must be used with a relay if the circuit's requirement is more than 300 mA. 2 Pin Door Lock/Unlock Harness: (White Connector) The Red & Green Door Lock/Unlock output wires provide either a pulsed ground or pulsed + 12 volts to control the vehicle door lock / unlock circuits.
- Page 10 Resistive Circuits, As Well As 4 Wire Polarity Reversal and 5 Wire Alternating 12 Volt Door Lock Control Circuits These applications require the use of additional components which may include relays, fixed resistors, or for convenience, the AS 9159 Door Lock Interface. Refer to the AUDIOVOX Door Lock Wiring Supplement and or the Audiovox fax back service for information on your particular vehicle for properly connecting to these types of circuits.
-
Page 11: Hood Pin Safety Shut Down
3. Immediately turn the ignition key OFF. 4. Hold the program switch ON, then start the vehicle using the ignition key. 5. When the unit senses the tach signal, the parking lights will begin to flash. 6. Release the program switch. The parking lights will turn on for 3 seconds to indicate that the tach signal is stored and the unit is now out of the program mode. - Page 12 If the unit fails this test, recheck your pin switch connection to the Gray/Black wire of the Audiovox Remote Start Unit. DO NOT RELEASE THIS VEHICLE TO THE CONSUMER UNTIL YOU CONFIRM THE OPERATION OF THE HOOD PIN SAFETY SHUT DOWN FEATURE. MANUAL SHUT DOWN / ENABLE CIRCUIT: The intent of the manual shut down / enable circuit is to allow the vehicle operator to prevent operation of the Remote Start Unit regardless of the RF transmitter operation.
-
Page 13: Key In Sensor Circuits
from the ignition cylinder. This configuration prevents mechanical operation while the vehicle is in gear but offers no consideration for electrical operation. Because of this potential problem, this installation requires the additional connection of a safety wire from the remote start device to the vehicle Park/Neutral ECM Input or the vehicle key in sensor. - Page 14 Circuits may be used only if the above circuit is not available. To connect to the key in sensor as shown in method 1: A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch. B.
-
Page 15: Completing The Installation
NOTE: A second 4002 series diode may be required to maintain the integrity of the hood open, shut down circuit. If this is the case, it must be installed as shown in the diagram above. The anode (Non Striped) side must be connected to the Gray/Black wire of the Remote Start Unit. - Page 16 © 2003 Audiovox Electronics Corp., Hauppauge, NY 11788 128-6847A 128-6847A 16 of 16...
