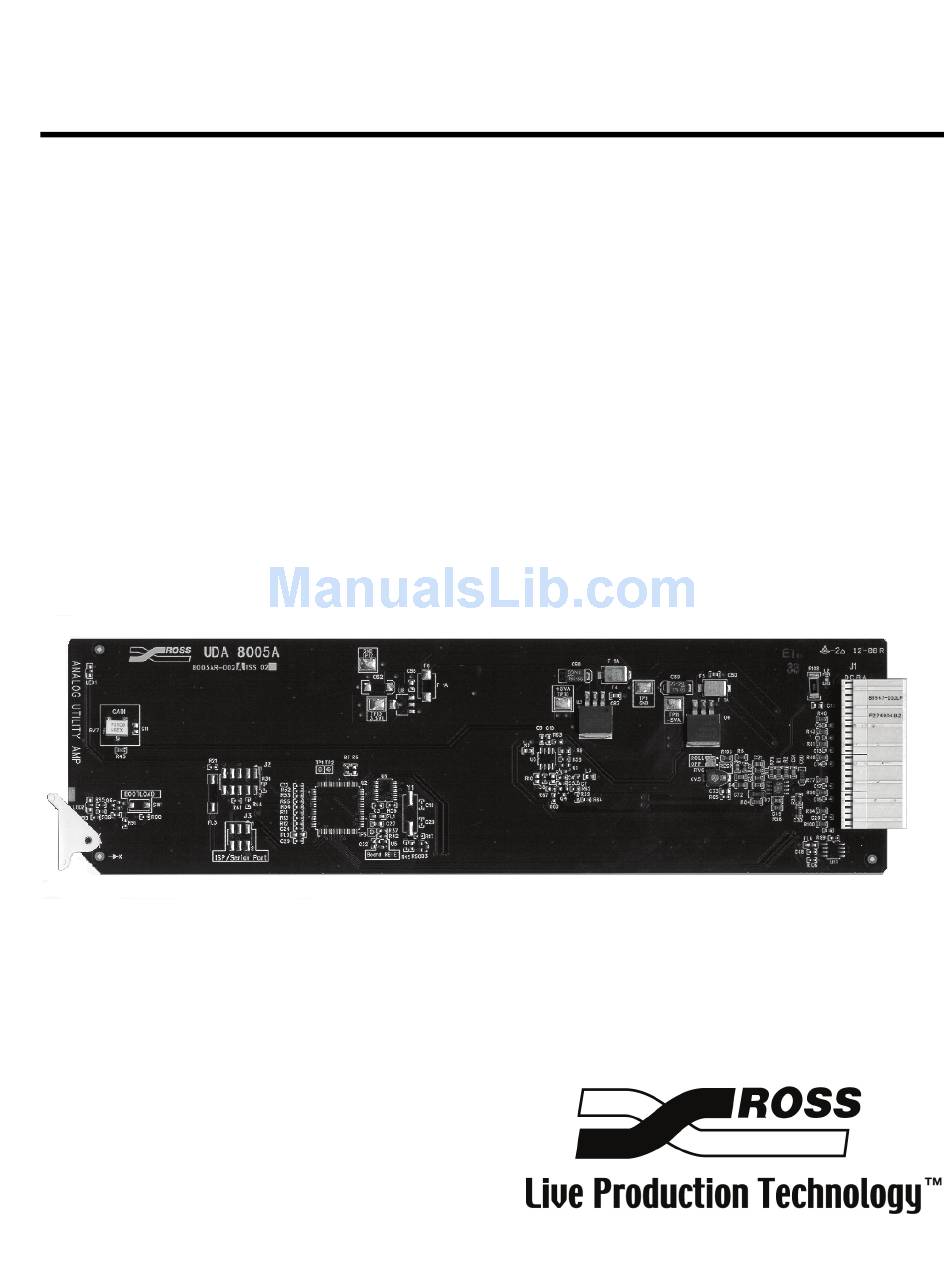

Page 1: User Manual

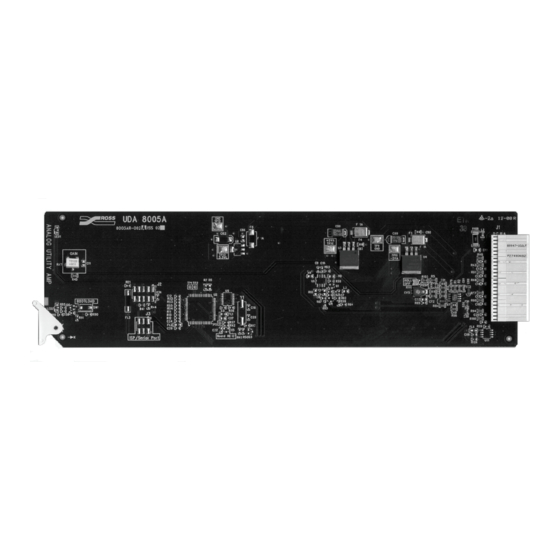

Ross Video Limited UDA-8005A Utility Distribution Amplifier User Manual Ross Part Number: 8005ADR-004 Issue: 01... - Page 2 The information contained in this User Manual is subject to change without notice or obligation. Copyright © 2008 Ross Video Limited. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited. Notice The material in this manual is furnished for informational use only.
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements. - Page 4 Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at their own expense. Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
-
Page 7: Table Of Contents
In This Chapter ........................3-1 UDA-8005A Technical Specifications..............3-2 Service Information In This Chapter ........................4-1 Troubleshooting Checklist ..................4-1 Warranty and Repair Policy ..................4-2 Ordering Information In This Chapter ........................5-1 UDA-8005A Video DA and Related Products............5-1 Contents • i UDA-8005A User Manual (Iss. 01) - Page 8 • Contents UDA-8005A User Manual (Iss. 01)
-
Page 9: Introduction
Ross Video’s experience in engineering and design expertise since 1974. You will be pleased at how easily your new UDA-8005A fits into your overall working environment. Equally pleasing is the product quality, reliability and functionality. Thank you for joining the... -
Page 10: Overview
Use of this amplifier will avoid the need to purchase a separate analog Video Products rack frame and power supply. The UDA-8005A is a general-purpose amplifier for use in the distribution of video. It is intended for use in situations where cable equalization and differential input are not important, and clamping is not required. -
Page 11: Features
DFR-8104A-C and DFR-8110A-C versions with the cooling fan option. Refer to the respective User Manuals for details. • “Operator” and “User” both refer to the person who uses the UDA-8005A cards. • “Board” and “Card” all refer to the UDA-8005A itself, including all components and switches. - Page 12 1-4 • Introduction UDA-8005A User Manual (Iss. 01)
-
Page 13: Installation And Setup
Unpacking Unpack each UDA-8005A card you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. -
Page 14: Board Installation
Board Installation Use the following procedure to install the UDA-8005A in a RossGear 8000 series digital frame: 1. Refer to the User Manual of the RossGear frame to ensure that the frame is properly installed according to instructions. If this card is to be installed in any compatible frame other than a Ross Video product, refer to the frame manufacturer’s manual for... -
Page 15: Gain Setting
Gain Setting Use Figure 3, the card labeling, and discussion to adjust the UDA-8005A Gain level. Figure 3. Potentiometer Locations RV7 provides a wide gain range of +/-3dB. Installation and Setup • 2-3 UDA-8005A User Manual (Iss. 01) - Page 16 2-4 • Installation and Setup UDA-8005A User Manual (Iss. 01)
-
Page 17: Specifications
Specifications In This Chapter This chapter contains the UDA-8005A Technical Specifications table. Specifications • 3-1 UDA-8005A User Manual (Iss. 01) -
Page 18: Uda-8005A Technical Specifications
(all outputs Chrominance-to-Luminance Delay <2.0ns loaded) Line Rate Window Tilt <0.2% Field Rate Window Tile <0.2% Bandwidth -3dB to 50MHz Typical Power Total Power Draw <0.7W Specifications are subject to change without notification. 3-2 • Specifications UDA-8005A User Manual (Iss. 01) -
Page 19: Service Information
Routine maintenance to this RossGear product is not required. In the event of problems with your UDA-8005A, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your Ross Video products distributor, or the Ross Video Technical Support department at the numbers listed under the “Contact Us”... -
Page 20: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your RossGear UDA-8005A proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. -
Page 21: Ordering Information
Power Supply (PS-8102) (2RU, holds 10 modules, includes 1 power supply) Your UDA-8005A Utility Distribution Amplifier is part of the RossGear family of products. Ross Video offers a full line of RossGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, keyers, switchers, as well as analog audio and video products. - Page 22 Notes: 5-2 • Ordering Information UDA-8005A User Manual (Iss. 01)
- Page 23 Notes: Ordering Information • 5-3 UDA-8005A User Manual (Iss. 01)
-
Page 24: General Information
613 • 349 • 0006 After-hours Emergency 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada POSTAL K0E 1K0 SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669- 0880...
