Morphy Richards Vacuum Cleaner Instructions Manual

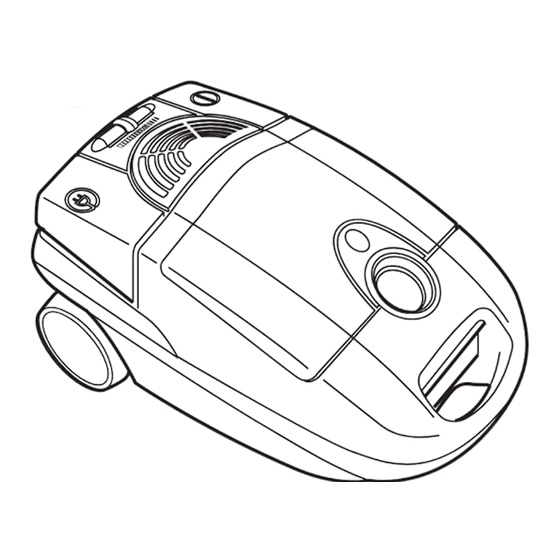

Fusion bagless cylinder vacuum cleaners
Hide thumbs
Table of Contents

Advertisement

Quick Links

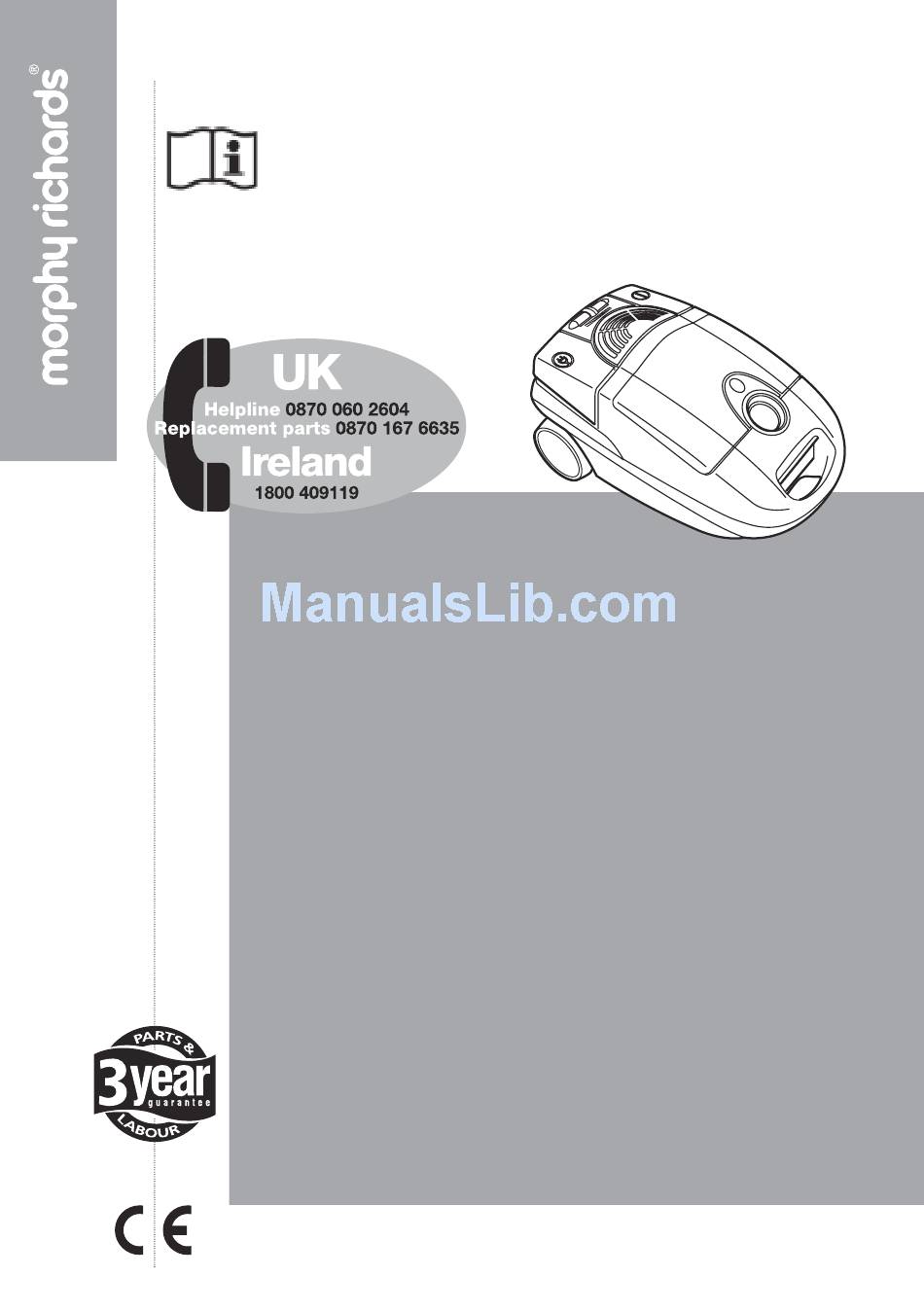

Fusion bagless cylinder vacuum cleaners
Please read and keep these instructions
getting the best from your
new cleaner...
If your cleaner is not picking up as well as it
should, please check
• Filters
It is important that the airbox and filters are cleaned regularly to
allow air through the appliance. Tap to remove dust, the filter can
also be washed in warm water and left to air dry.
IMPORTANT - Ensure filter is totally dry before refitting into
machine.
• Blockages
Check the hose, handle and tools for blockages.
• Overheating protection
The cleaner automatically cuts off in the event of overheating
caused by blocked hoses / filters. Remove plug, clear blockage
and allow 15 minutes for the cleaner to automatically reset.
www.morphyrichards.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vacuum Cleaner and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morphy Richards Vacuum Cleaner

Summary of Contents for Morphy Richards Vacuum Cleaner

  • Page 1 Fusion bagless cylinder vacuum cleaners Please read and keep these instructions getting the best from your new cleaner... If your cleaner is not picking up as well as it should, please check • Filters It is important that the airbox and filters are cleaned regularly to allow air through the appliance.

  • Page 2: Important Safety Instructions

    • The appliance must never be left running when unsupervised. • This vacuum cleaner is intended for domestic use only. Misuse or use for commercial or any other purpose will render the guarantee invalid.
  • Page 3 Features ⁄ Dust compartment cover ¤ Inlet for suction hose ‹ Dust compartment release button › Tool storage compartment cover fi Air box fl Electronic suction power control ‡ On/off foot switch · Cable rewind foot switch ‚ Exhaust filter cover ‡...

  • Page 4: Operation

    Assembly Push the elbow-shaped end of the suction hose into the housing until it clicks into place. Telescopic tube È Attach the tube to the handle. To adjust the length, press the release button as indicated and pull or push the tube to the desired length.

  • Page 5: Controlling Suction Power

    The vacuum cleaner cuts out automatically when: • The floor nozzle or tubes become blocked • Using the vacuum cleaner with a full air box. • The motor protection filter is very dirty • The exhaust filter is very dirty Rectify the cause of the cut out and do not use for 15 minutes to allow the motor to cool.

  • Page 6: Tube Standby

    CAUTION: Ensure that the appliance is never left unattended whilst it is switched on. After vacuum-cleaning 1 Switch off the vacuum cleaner. 2 Unplug from the mains. 3 Use a hand or foot to operate pedal rewind the cable.
  • Page 7 Emptying the air box To maintain the performance of your vacuum cleaner the airbox must be emptied regularly and the filters cleaned. • Press the dust compartment release button ‹ indicated by arrow 1 and lift up the dust compartment lid. (arrow 2) •...
  • Page 8 Cleaning the airbox filter IT IS IMPORTANT TO CLEAN THE FILTER TO MAINTAIN PERFORMANCE, EVERY TIME THE AIRBOX IS EMPTIED. • After emptying the dust, twist the filter anti- clockwise to remove as shown. • Tap the filter over a dustbin to remove excess dust.

  • Page 9: Cleaning The Motor Protection Filter

    Cleaning the motor protection filter The motor protection filter is accessible from the dust compartment only when the airbox has been removed first. WARNING: NEVER USE THE APPLIANCE WITHOUT THE MOTOR PROTECTION FILTER INSTALLED, OTHERWISE DAMAGE TO THE MOTOR MAY OCCUR WHICH WOULD NOT BE COVERED BY THE GUARANTEE.

  • Page 10: Cleaning The Exhaust Air Filter

    0870 167 6635. Storage Tube park The vacuum cleaner can be stored in an upright position. Rotate the floor nozzle until the lug on the back of it can be fitted into the tube park slot on the base of the appliance.

  • Page 11: Cleaning And Maintenance

    Cleaning and maintenance Unplug from the mains before cleaning. The dust compartment and all accessories can be cleaned using a damp cloth or a non- abrasive domestic cleaner and wiped dry. To keep the underside of the floor nozzle clean, vacuum it at regular intervals using the crevice tool.
  • Page 12 36 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown. You will be asked to return the product (in secure, adequate packaging) to the address below along with a copy of proof of purchase.

This manual is also suitable for:

Ib70036
