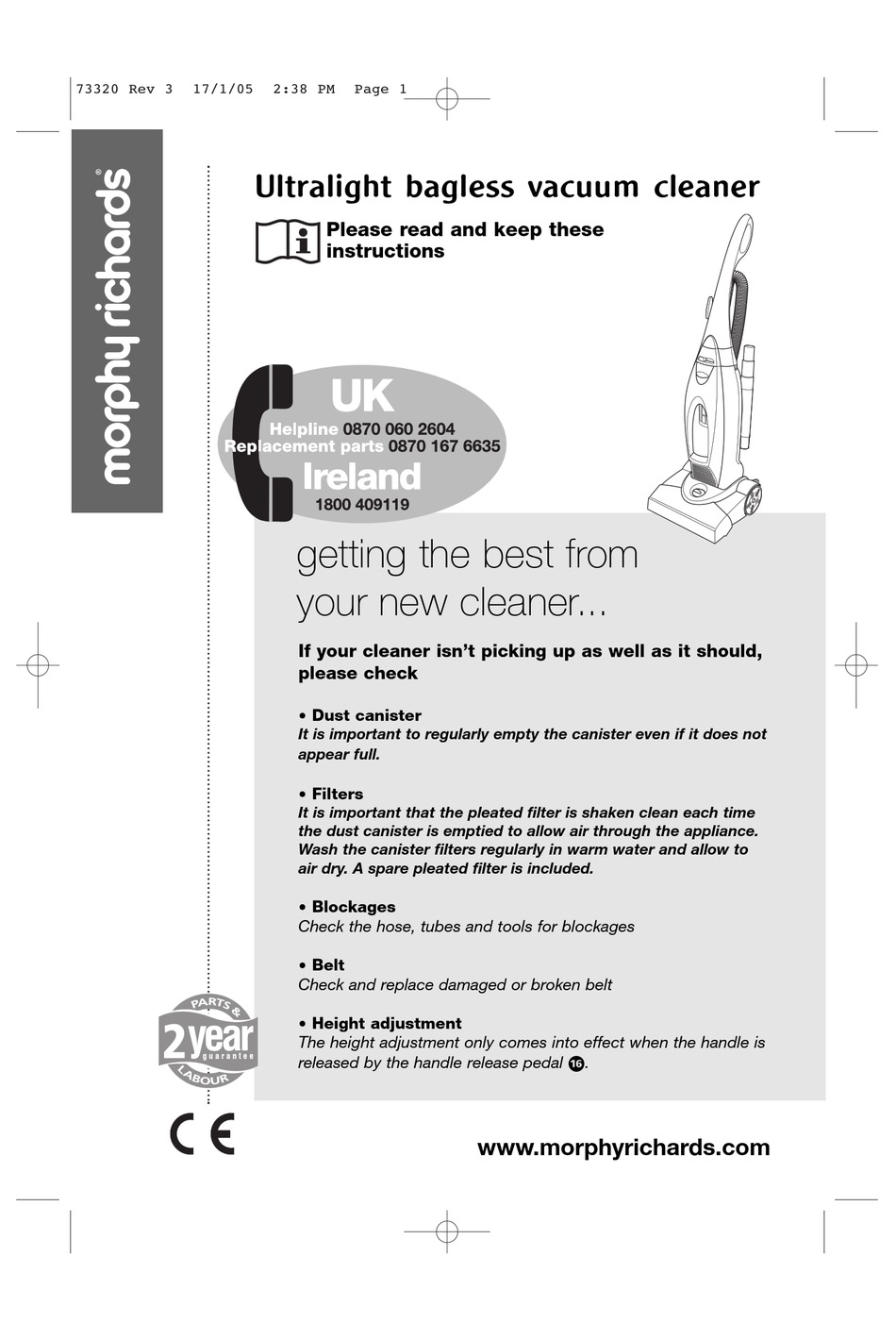

73320 Rev 3
17/1/05
2:38 PM
Page 1
Ultralight bagless vacuum cleaner
Please read and keep these
instructions
getting the best from
your new cleaner...
If your cleaner isn't picking up as well as it should,
please check
• Dust canister
It is important to regularly empty the canister even if it does not
appear full.
• Filters
It is important that the pleated filter is shaken clean each time
the dust canister is emptied to allow air through the appliance.
Wash the canister filters regularly in warm water and allow to
air dry. A spare pleated filter is included.
• Blockages
Check the hose, tubes and tools for blockages
• Belt
Check and replace damaged or broken belt
• Height adjustment
The height adjustment only comes into effect when the handle is
released by the handle release pedal
È
.
www.morphyrichards.com
Advertisement
Table of Contents
Related Manuals for Morphy Richards Upright Bagless Vacuum Cleaner
Summary of Contents for Morphy Richards Upright Bagless Vacuum Cleaner
- Page 1 73320 Rev 3 17/1/05 2:38 PM Ultralight bagless vacuum cleaner getting the best from your new cleaner... If your cleaner isn’t picking up as well as it should, please check • Dust canister It is important to regularly empty the canister even if it does not appear full.
-
Page 2: Important Safety Instructions
• Repairs to electrical appliances are only to be undertaken by trained personnel. Unprofessional repairs can be dangerous for users. • Use only genuine Morphy Richards spare parts and accessories • Never over-extend the hose such that the cleaner is pulled over. If the cleaner is knocked over, switch off before attempting to upright. - Page 3 73320 Rev 3 17/1/05 2:38 PM ⁄ ¤ ‹ › fi fl Accessories included Furniture brush Á Features ⁄ Vari power slider (certain models only) ¤ Front cover release ‹ Removable front cover › Exhaust filter grille fi Carpet height adjustment knob fl...
- Page 4 73320 Rev 3 17/1/05 2:38 PM Assembly WARNING: Do not plug in the cleaner until it is assembled. 1 Carefully unpack all components. 2 Lift cleaner body to upright position. 3 Remove the two screws that are already attached to the body. 4 From the rear of the cleaner, align the handle with groove and slide into the body.
-
Page 5: Using Attachments
73320 Rev 3 17/1/05 2:38 PM Using attachments Follow steps 1-4 (using on carpets) but set the carpet height adjustment knob to deep carpet setting. 5 Remove the hose connector Í from the rear of the cleaner. Lift the hose · from the top handle hook. -
Page 6: Cleaning The Filters
If the brush bar stops rotating it is likely that the drive belt has snapped (usually because the brush has been stalled). A spare belt is supplied. Replacement belts can also be obtained from Morphy Richards. Removing the floor nozzle cover 1 Disconnect the cleaner from the mains supply. - Page 7 73320 Rev 3 17/1/05 2:38 PM 2 Press the handle release pedal and place the cleaner face down, in the flat position on a soft surface (eg carpet). 3 Use a cross-head screwdriver to remove the four screws indicated J. 4 Turn the cleaner over.
- Page 8 24 months of original purchase, you should contact the helpline number quoting model number and serial number on the product, or write to Morphy Richards at the address shown. You will be asked to return the product (in secure, adequate packaging) along with a copy of proof of purchase.
