73281 rev1
13/3/08

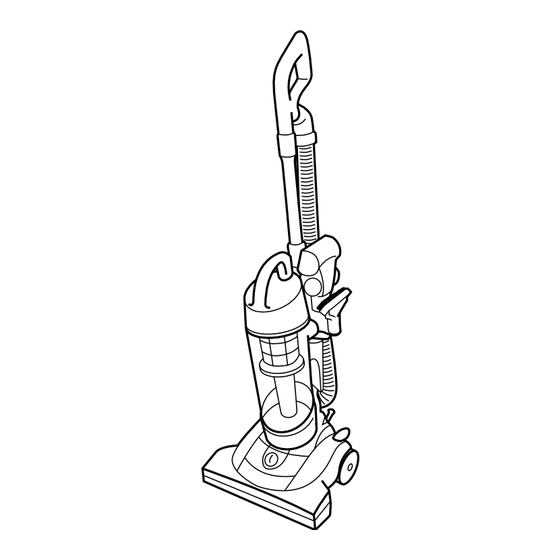

Bagless upright vacuum cleaner
Please read and keep these instructions
Getting the best from your new cleaner...
If your cleaner is not picking up as well as it should, please check
Dust canister
It is important to regularly empty the canister, even if it does not appear full.
Filters
It is important that the dust canister pleated/mesh filter is tapped clean over a
dustbin each time the dust canister is emptied, this allows air through the appliance.
Wash the canister filters regularly in luke-warm water and allow to air dry before
re-fitting.
Blockages
Check the hose, tubes and tools for blockages.
Safety cut-out
If the air-flow is blocked or the filters are not regularly cleaned, a thermostat may operate.
If this happens, switch off and disconnect from the mains supply. Clear any blockage,
empty and clean the filters. Allow 60 minutes for the thermostat to reset.
Belt
If the brush-bar is not rotating, check the belt (as described on page 6). Replace any
damaged or broken belts.
For replacement parts, help with using your Morphy Richards, problems
and lots more, contact us by phone or through our website.
U U K K H H e e l l p p l l i i n n e e : : 0 0 8 8 4 4 4 4 8 8 7 7 1 1 0 0 9 9 4 4 9 9
R R e e p p l l a a c c e e m m e e n n t t P P a a r r t t s s : : 0 0 8 8 4 4 4 4 8 8 7 7 3 3 0 0 7 7 1 1 5 5
I I r r e e l l a a n n d d H H e e l l p p l l i i n n e e : : 1 1 8 8 0 0 0 0 4 4 0 0 9 9 1 1 1 1 9 9
16:22
Page 1
w w w w w w . . m m o o r r p p h h y y r r i i c c h h a a r r d d s s . . c c o o m m
VC73281 MUK Rev 1
Advertisement
Table of Contents
Related Manuals for Morphy Richards 73281
Summary of Contents for Morphy Richards 73281
- Page 1 If the brush-bar is not rotating, check the belt (as described on page 6). Replace any damaged or broken belts. For replacement parts, help with using your Morphy Richards, problems and lots more, contact us by phone or through our website.
-
Page 2: Important Safety Instructions
Never touch the plug or cable with wet hands. • Unprofessional repairs can be dangerous for users. • Use only Morphy Richards spare parts and accessories. • The appliance must never be left running unsupervised. • This appliance is intended for domestic use only. - Page 3 73281 rev1 13/3/08 16:22 ⁄ ¤ ‹ fi fl ‡ · FEATURES ⁄ Handle ¤ Handle locking pin ‹ Metal telescopic tube › Stretch hose fi Dust canister lid fl Filter assembly ‡ Dust canister · Floor nozzle height adjustment dial Page 3 ‚...
-
Page 4: Operating The Appliance
73281 rev1 13/3/08 16:22 OPERATING THE APPLIANCE Assembly WARNING: Do not plug in the cleaner until it is assembled. Carefully unpack all of the components. Lift the cleaner body to the upright position. Slide the telescopic tube ‹ into the opening on the top of the unit. -
Page 5: Using The Attachments
73281 rev1 13/3/08 16:22 Using on carpets Place the cleaner in it’s upright position. Set the carpet height adjustment dial · to the desired position. Release the mains cable by revolving the quick release cleat half-a-turn and extend the cable fully. -
Page 6: Emptying The Dust Canister
Replace the belt with the spare belt provided. Additional belts can be obtained from Morphy Richards by calling the helpline number at the base of the page. I I r r e e l l a a n n d d H H e e l l p p l l i i n n e e 1 1 8 8 0 0 0 0 4 4 0 0 9 9 1 1 1 1 9 9... - Page 7 73281 rev1 13/3/08 16:22 Accessing the floor nozzle Disconnect the cleaner from the mains supply. Press the handle release pedal and place the cleaner face down on a soft surface, eg. carpet. Remove the four screws holding the two undercarriage plates ˆ...
- Page 8 Morphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality and design. The company therefore reserves the right to change the specification of its models at any time.
