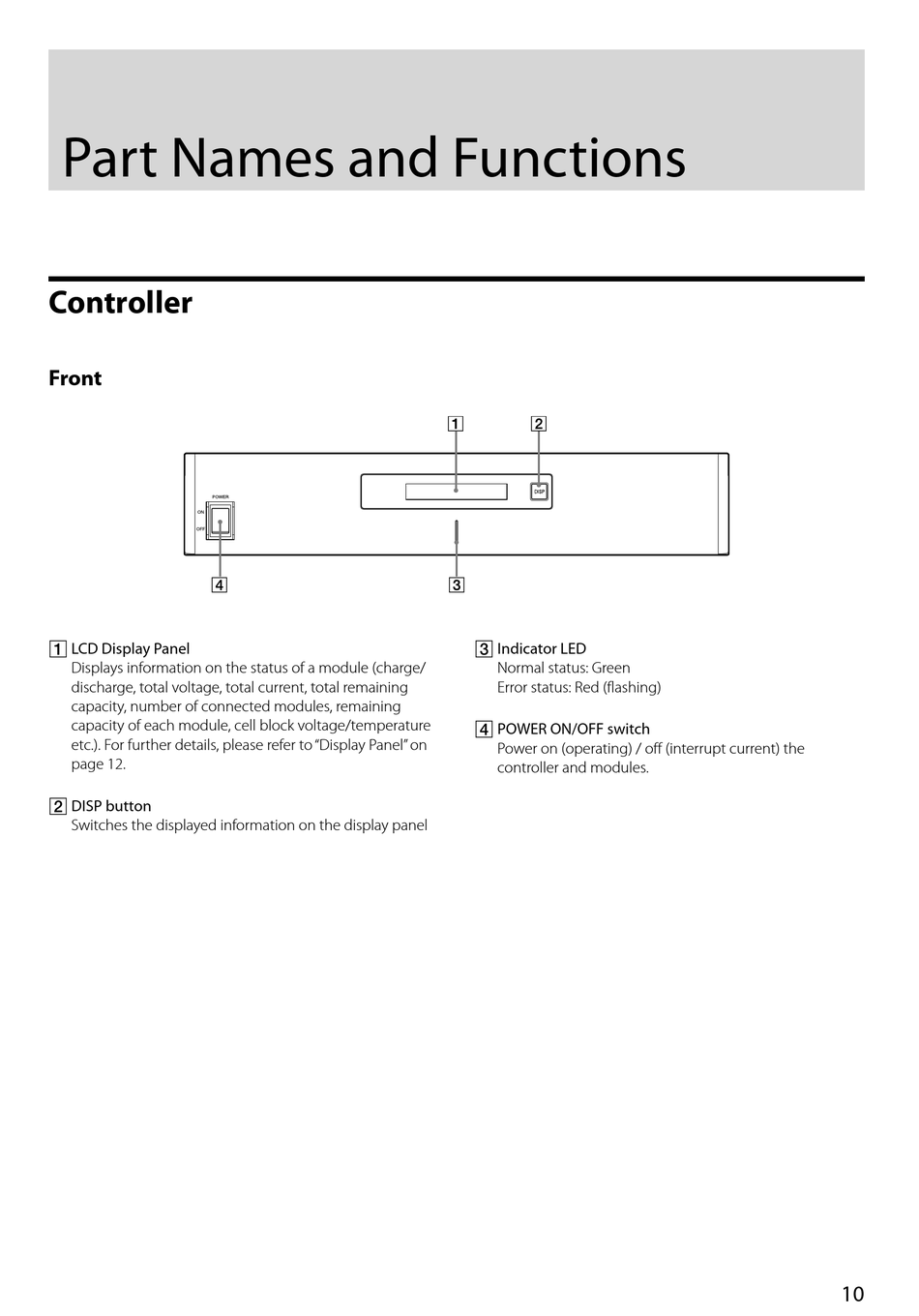

Part .Names .and .Functions

Controller

Front
 . L CD .Display .Panel
Displays information on the status of a module (charge/
discharge, total voltage, total current, total remaining
capacity, number of connected modules, remaining
capacity of each module, cell block voltage/temperature
etc.). For further details, please refer to "Display Panel" on
page 12.
 . D ISP .button
Switches the displayed information on the display panel
 . I ndicator .LED
Normal status: Green
Error status: Red (flashing)
 . P OWER .ON/OFF .switch
Power on (operating) / off (interrupt current) the
controller and modules.
