Summary of Contents for Monte Carlo Fan Company 5LOR52BSD Series

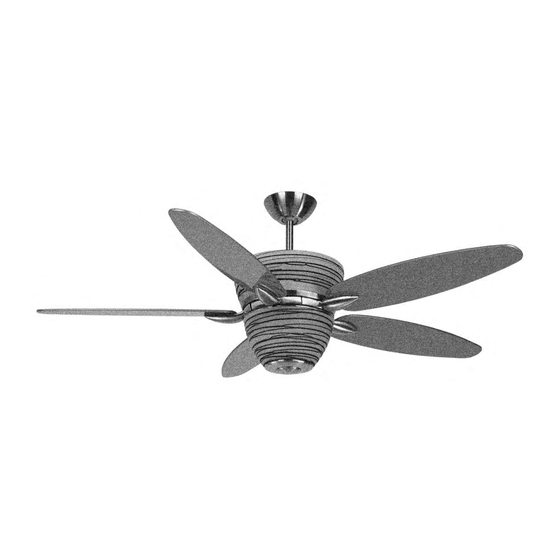

- Page 1 Owner’s Manual Ceiling Fan Installation Instructions Total fan weigh with light For 5LOR52BSD Series Fans READ AND SAVE THESE INSTRUCTIONS Quality Ceiling fans...
-
Page 2: Installation
Attach the mounting bracket using only the hardware supplied with the outlet box. To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control. If this unit is to be installed over a tub or shower , it must be marked as appropriate for the application. - Page 3 . If you have more than one fan with remote. You can set the dip switches to different positiosns to have seperate control. Install remote receiver by sliding into opening in the Mounting bracket.
- Page 4 Save screw removed. Plug white wire from fan to white wire from light kit. Then plug black wire from fan to black wire from light kit. Place glass on light kit, hold in place and tighten finial cap in direction of arrow.
- Page 5 Fan on / off To control fan speed select from High, Medium or low speed buttons. To turn the fan off press the Fan on / off button. To dim upper lights press and hold U/L botton. To dim Lower lights press and hold D/L button.
-
Page 6: Troubleshooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty in installation, please call our Customer Service Center at the number printed on your parts list insert sheet. - Page 7 6/21/06 REV.0 New made from 5GMR manual...
