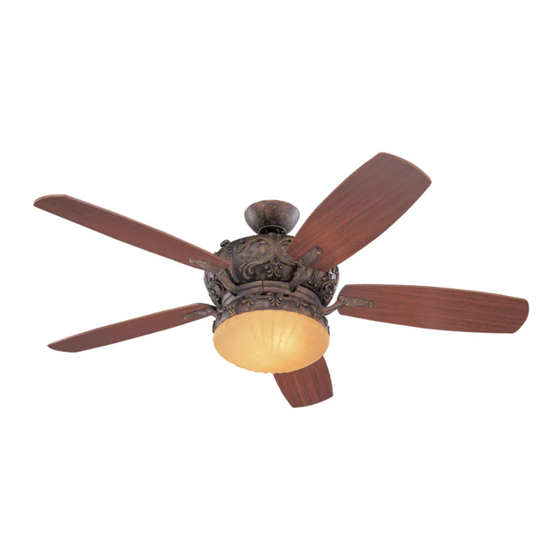

- Page 1 Owner’s Manual Ceiling Fan Installation Instructions Total fan weight with light For 5KBR54 Series Fans READ AND SAVE THESE INSTRUCTIONS Quality Ceiling fans...
-
Page 2: Installation
WARNING – Risk of fire, electric shock, or personal injury, The fan in this box may be either directly supported from a structural framing mem- ber of a building and/or may be mounted to an outlet box marked acceptable for fan support of 31.8 kg. (70 lbs.) or less. Most outlet boxes commonly used for the support of luminaires may not be acceptable for fan support and may need to be replaced. - Page 3 . If you have more than one fan with remote. You can set the dip switches to different positiosns to have seperate control. Secure mounting neck to the mounting plate with four screws to become a complete mount- ing bracket.
- Page 4 Attach blade assembly to motor and tighten screws securely. Plug white wire from fan to white wire from light kit. Then plug black from fan to black from light kit. Attach glass by locating dimples in light kit and aligning it with the groves in glass and twisting clockwise till tight.
- Page 5 Fan on / off To control fan speed select from High, Medium or low speed buttons. To turn the fan off press the Fan on / off button. To dim upper lights press and hold U/L botton. To dim Lower lights press and hold D/L button.
-
Page 6: Troubleshooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
