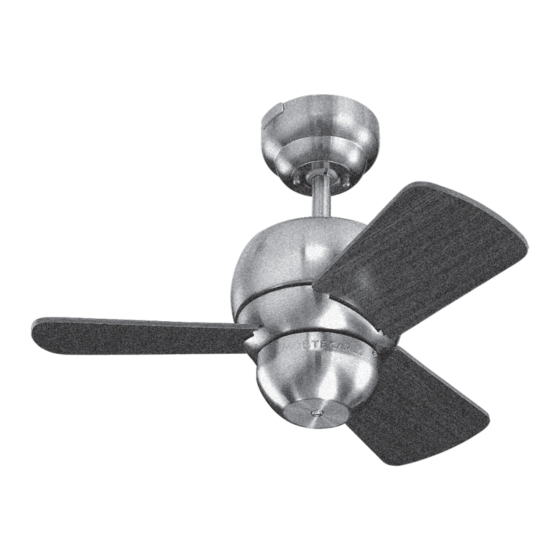

- Page 1 ’ WNER ANUAL Ceiling Fan Installation Instructions Total fan weight For 3TF24XX Series Fans READ AND SAVE THESE INSTRUCTIONS UALITY EILING FANS...
-
Page 2: Installation
Attach the mounting bracket using only the hardware supplied with the outlet box. To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application. - Page 3 White White Green Ground Connect black and blue wire from fan to Black or (Hot) wire from house. Connect White wire from Fan to White (Neutral) wire from house. Connect Ground leads from mounting bracket and downrod to Ground lead from house. Refer to Safety Tips section of manual.
- Page 4 Smaller holes Place canopy on top of the fan motor allowing the yoke, wires and safety cable to pass through the large hole in the center of the canopy. Align the 3 larger holes around the center hole with the 3 screws still installed in the fan.
- Page 5 If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart.
