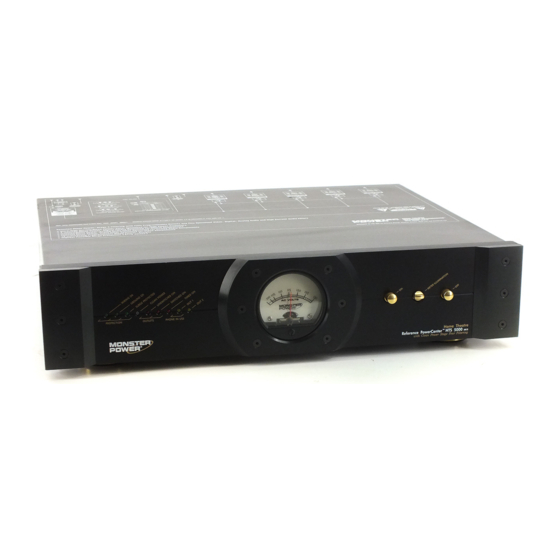

Home theatre reference powercenter
Hide thumbs Also See for HTS 5000:
Table of Contents

Advertisement

Quick Links

®
Home Theatre
Reference PowerCenter
™
HTS 5000
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Monster Power HTS 5000

Summary of Contents for Monster Power HTS 5000

  • Page 1 ® Home Theatre Reference PowerCenter ™ HTS 5000 Owner’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page Important Safety Precautions ............ii Proper Grounding and Installation Tips .

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Please read and observe the following safety points at all times. WARNING – Power Sources Do not plug your Monster PowerCenter into a power outlet that differs from the source indicated for safe use on the Monster PowerCenter. If you don’t know the type of electrical power that is supplied to your home, please consult your local power company.
  • Page 4 WARNING – Liquid: To Avoid Electrical Shocks Do not operate your Monster PowerCenter if liquid of any kind is spilled onto or inside the unit. Do not operate your Monster PowerCenter near rain or water that’s spilled or openly exposed (e.g., bathtub, kitchen or bathroom sink).
  • Page 5 WARNING – Storm Precautions In the event of a lightning storm, immediately disconnect your Monster PowerCenter from its power source. After you’ve done this, it’s not necessary to disconnect any components that are connected to your Monster PowerCenter. WARNING – No User Serviceable Parts Inside If, for any reason, your Monster PowerCenter is not operating properly, do not remove any part of the unit (cover, etc.,) for repair.

  • Page 6: Proper Grounding And Installation Tips

    PROPER GROUNDING AND INSTALLATION TIPS CAUTION – Proper Grounding Monster PowerCenters require a properly grounded 3-wire outlet for safety and to protect connected equipment. If your AC outlet is improperly wired (no ground or reverse polarity), the green ”SYSTEM GROUNDED” LED light on the front panel of the Home Theatre Reference PowerCenter electrician to fix the problem in your home’s wiring.

  • Page 7: Introduction

    INTRODUCTION Thank You Thank you for purchasing Monster Power’s Home Theatre Reference PowerCenter HTS 5000. The PowerCenter ™ reflects Monster’s commitment to creating performance-enhancing solutions for home theater systems, so you will enjoy superior picture and sound quality. Ordinary AC power accessories compromise the quality of the components they power. The PowerCenter’s advanced technologies and innovative design solve this problem and offer several unique convenience and performance features.

  • Page 8: Monster's Patented Clean Power Stages

    MONSTER’S PATENTED CLEAN POWER STAGES Each PowerCenter has its own Clean Power stage. Clean Power performs two tasks vital to high performance audio, video and digital reproduction: filtration and isolation. The higher the Clean Power stage, the more sophisticated and advanced the filters are, to reject noise generated on the AC powerline. Also, the higher the Clean Power stage, the more isolation between connected equipment for maximum component-generated noise rejection.

  • Page 9: The Design Minds Behind The Monster Powercenter

    THE DESIGN MINDS BEHIND THE MONSTER POWERCENTER Richard Marsh – There are few experts able to solve the complex problems of AC power. Richard Marsh is one of the illustrious few. He has designed best selling power conditioning components costing more than $3,000 and now brings his expertise to Monster Power. Richard developed Monster’s exclusive Clean Power other groundbreaking designs.
  • Page 10 Noel Lee – Noel Lee is best known for popularizing the concept of high performance audio cable over 20 years ago with his creation of Monster Cable. Originally a laser-fusion design engineer at Lawrence Livermore National Laboratory and later a touring musician, Noel has invented or co-invented over 125 U.S.

  • Page 11: Content Checklist

    Before You Begin Before you do anything, make sure you have everything you need to enjoy the high performance of your Monster PowerCenter. You’ll need the following items to get started: 1) This owner’s manual. 2) Your favorite pen or a computer with an Internet browser (for registering your warranty information). 3) One Monster Power Home Theatre Reference PowerCenter 4) One sheet of Monster Power audio/video ID labels (included).

  • Page 12: Hookup Guide

    STEP 1 DBS/DVD/Phone Line Hookup NOTE: The PowerCenter is intended for hookup of a single phone line only. A second line will NOT be connected through the phone line surge protector. You can use this feature as a phone splitter, however. If the “PHONE IN USE – OUT 1”...
  • Page 13 STEP 2 Outlet Programming NOTE: All PowerCenter outlets located on the rear panel are “programmable” . In order to program each outlet pair, you must use the recessed slide switches (fig.2). There are two recessed slide switches for each outlet pair that enable you to program between ”unswitched“, ”switched on“, and ”switched on after delay“...
  • Page 14 A) Outlet Pair Always On (Unswitched): For components (including your VCR, TV, etc.) that need to retain memory, set left slide switch to UNSWITCHED and the right slide switch to either DELAY or NO DELAY (fig. 2a). B) Outlet Pair Switched On: Set the left slide switch to SWITCHED and the right slide switch to NO DELAY. (fig.
  • Page 15 STEP 3 Remote AC Control Hookups NOTE: This feature allows you to turn on/off your PowerCenter via your A/V receiver or preamplifier. You can’t turn off the PowerCenter using the front panel OFF button when the unit is operating in the REMOTE mode. A) Plug the Remote AC Control Cord’s (included) female end into back of your PowerCenter (see diagram below).
  • Page 16 STEP 4 Remote DC Control Hookups NOTE: This feature allows you to turn on/off your PowerCenter via your Home Automated Control System. A component you don’t want powered constantly (such as your projector or surround amplifier) can be plugged into one of the PowerCenter’s outlets programmed as “switched on”...
  • Page 17 STEP 5 Coaxial Outlet Hookup NOTE: You will need additional coaxial cables to connect the PowerCenter to your components with coaxial/RF connections. Protect Cable TV, Satellite, and Antenna Connections as Follows: From grounding block (connected to incoming cable TV line)* From grounding block (connected to satellite dish)*...
  • Page 18 STEP 6 High Current Audio AC Outlet Hookup Isolated Clean Power Stage 4 Ultra-High Audio Current Filter: Optimized for maximum noise rejection, ™ while providing maximum current to high current audio components. NOTE: These outlets are designed to deliver maximum current to power hungry components such as power amplifiers and receivers.
  • Page 19 STEP 7 Analog Audio AC Outlet Hookup Isolated Clean Power Stage 4 Analog Audio Filter: Optimized to provide maximum noise rejection for sensitive analog audio components. NOTE: Because certain components don’t need to, or shouldn’t be turned on continuously, you should program these outlets to be “switched on”(see page 7, fig.
  • Page 20 STEP 8 Video AC Outlet Hookup Isolated Clean Power Stage 4 Video Filter: Optimized to reduce noise generated by video equipment. Isolates video components from connected digital, analog audio and video components for maximum rejection of interference. NOTE: You may want to program these outlets to be “unswitched” (see page 7, fig. 2a) because some components perform best when powered continuously.
  • Page 21 STEP 9 Digital AC Outlet Hookup Isolated Clean Power Stage 4 Digital Filter: Optimized to reduce noise generated by digital equipment. Isolates digital components from connected digital, analog audio and video components for maximum rejection of interference. HTS 5000 features two isolated filters to accommodate different digital sources. NOTE: You can plug any type of digital component (e.g., CD player, DVD player, MiniDisc player, digital camcorder) into the corresponding CABLE/SAT, CD, SPARE, or DVD outlet.
  • Page 22 C) CD: Plug your CD player’s power cord into the corresponding CD outlet. D) SPARE: Plug the power cord of your additional digital component (e.g., digital camcorder) into the corresponding SPARE outlet. E) DVD: If you have a DVD player, plug its power cord into the corresponding DVD outlet. If you are using a LaserDisc player, you can also plug it into this outlet.
  • Page 23 STEP 10 Rack Mounting Your PowerCenter A) Remove your PowerCenter trim covers using a 3/32 Allen key (not included). Turn each Allen screw counter-clockwise until the screw is completely removed. B) Align one rack ear over the three 3/32 holes on the left side of the PowerCenter. Using a 3/32 Allen key, turn the three Allen screws (provided) clockwise until tight.

  • Page 24: Grounding Your Cable Tv, Satellite Dish, And Antenna Connections

    GROUNDING YOUR CABLE TV, SATELLITE DISH, AND ANTENNA CONNECTIONS IMPORTANT NOTE: Proper grounding can be accomplished by using a special grounding block attached to a cold water pipe or copper ground rod driven into the ground. Consult with a qualified electrician to verify your outdoor connections are grounded properly.

  • Page 25: Hts 5000 Features

    PLEASE TURN TO PAGE 20 FOR DESCRIPTION OF PRODUCT FEATURES PROTECTION ON OUTLETS PHONE IN USE GROUND SATELLITE RECEIVER HTS 5000 FEATURES Home Theatre Reference PowerCenter ™ HTS 5000 with Clean Power Stage Four Filtering ™ CABLE TV NORMAL OUTLET PROGRAMMING SWITCHES REMOTE UNSWITCHED SWITCHED DELAY NO DELAY SATELLITE...
  • Page 26 HTS 5000 FEATURES NUMBERS REFER TO DRAWINGS ON PAGES 19 INDEX DRAWINGS 1. Wiring Reversed LED: Indicates that polarity is reversed on AC lines. If the LED is on, unplug the HTS 5000 and consult an electrician. 2. Ground OK LED: Indicates PowerCenter is plugged into a properly grounded 120V AC power outlet. 3.
  • Page 27 NUMBERS REFER TO DRAWINGS ON PAGES 19 11. Meter Illumination Button: Adjusts amount of light to the volt meter. 12. Off Button: Press to shut down outlets programmed as “switched on” or “switched on after delay” . 13. Digital Isolation Filters: For digital components such as CD players, DVD players, and satellite receivers, special filter circuit designed to reduce interference such as digital noise from your components getting into the rest of your system.
  • Page 28 NUMBERS REFER TO DRAWINGS ON PAGES 19 16. High Current Audio Filter: For high current audio components such as power amplifiers and receivers, special filter circuit to reduce noise from the AC power line that would degrade the audio performance and to optimize high current demand.
  • Page 29 NUMBERS REFER TO DRAWINGS ON PAGES 19 23. 1/8 inch Mini-Plug Jack Output for Remote DC hookup: Enables remote control of an external device. 24. Normal/Remote Switch: Allows the PowerCenter to operate in Normal or Remote mode. In Remote mode, outlets programmed as “switched on”...

  • Page 30: Troubleshooting

    TROUBLESHOOTING PROBLEM – The PowerCenter is not receiving power. Possible Cause #1 The PowerCenter is not turned on. Possible Solutions • Press the ON button on the PowerCenter. • Make sure the PowerCenter’s AC power plug is plugged into a properly grounded 120V wall outlet.
  • Page 31 TROUBLESHOOTING (continued) Possible Cause #3 The PowerCenter’s power cord is plugged into an outlet on the back of one of your components and the component is not turned On. Possible Solution • Turn on the component. NOTE: For the best possible performance, plug the PowerCenter into a wall outlet, not an outlet on another component.
  • Page 32 TROUBLESHOOTING (continued) Possible Cause #2 PowerCenter is plugged into a switched outlet on a component which is not turned on. The PowerCenter will not receive power and therefore will not provide power to the components plugged into the PowerCenter’s outlets. Possible Solution •...
  • Page 33 TROUBLESHOOTING (continued) PROBLEM – The ”UNSWITCHED ON“ LED is off. Possible Cause The PowerCenter is not plugged into a properly grounded AC outlet. Possible Solution • Plug the PowerCenter into a properly grounded 120V outlet. PROBLEM – The ”SWITCHED ON“ LED is off. Possible Cause #1 You are using the Remote AC Control feature (see page 9) and haven’t plugged the Remote AC Control Cord into either the PowerCenter’s corresponding outlet or the component you wish to activate the Remote AC Control feature.
  • Page 34 TROUBLESHOOTING (continued) Possible Cause #2 You are using the Remote DC Control feature (see page 10) and haven’t plugged a 1/8” mini-plug cable into either the PowerCenter’s corresponding outlet or the component you wish to activate the Remote DC Control feature. Possible Solution •...
  • Page 35 Possible Cause #2 You are using the Remote DC Control feature (see page 10) and haven’t plugged a 1/8” mini-plug cable into either the PowerCenter’s corresponding outlet or the component you wish to activate the Remote DC Control feature. Possible Solution •...

  • Page 36: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Q. What is the importance of component-to-component filtering? A. With the Monster PowerCenter, AC power must first go through a segment of noise filters, which isolates your equipment from noise on the AC power line. Most manufacturers’ battle against line noise stops there. The next crucial step of noise filtering must occur between components.
  • Page 37 FREQUENTLY ASKED QUESTIONS Q. Will it harm a component to plug it into an outlet that it’s not designated to power, like a high power amplifier into an outlet marked for TV? A. No. However, you may not realize the full performance potential of the component. Q.

  • Page 38: Glossary Of Terms

    APPENDIX A Glossary of Power-Related Terms Audio Noise: In the audio-frequency range, any electrical disturbance introduced from a source extraneous to the signal. Alternating Current (AC): A flow of electricity which reaches maximum positive polarity in one direction, decreases to zero, then reverses itself and reaches maximum negative polarity in the opposite direction. This cycle is repeated continuously.
  • Page 39 Filter: A selective network of resistors, inductors, or capacitors which offers comparatively little opposition to certain frequencies, while blocking or attenuating other frequencies. Ground: A point in an electrical system that has zero voltage. Usually, the chassis of an electrical component is at ground potential and thus serves as the return path for signals as well as for power circuits.
  • Page 40 Spike: An abrupt transient which comprises part of a pulse, but exceeds its average amplitude considerably. Surge: A large, sudden change of voltage or current, usually caused by the collapse of a magnetic field or by a shortened or opened circuit element. Surge Protector: A device which protects component circuitry from high alternating voltage peaks or transients.

  • Page 41: Warranty Information

    Connected Equipment Warranty Monster Cable Products, Inc. will replace, or, at its option, pay to repair or pay the fair market value of equipment that is damaged by an AC power, cable, telephone, or lightning surge while connected to a properly installed Monster Cable Products surge protector, 5 years from the date of purchase from an Authorized Monster Power Dealer.
  • Page 42 THE ABOVE ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL MONSTER CABLE PRODUCTS, INC. BE LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES.
  • Page 43 CONNECTED EQUIPMENT CLAIM How To Make A Claim In the event damage has occurred to equipment which is properly connected to a Monster Power product as a result of an abnormally high voltage spike, you must follow these instructions. 1. Call 877/800-8989. 2.
  • Page 44 7. If it is determined that the damage was caused by the Monster Power product, Monster Cable Products, Inc., at its discretion, will direct you to: A. Obtain a repair estimate at a service center authorized by the manufacturer of the connected equipment;...

  • Page 45: How To Contact Us

    How to Contact Us Write to us at: Monster Power 455 Valley Drive Brisbane, CA 94005 Visit us on the web at: monstercable.com Call us toll-free at: 877/800-8989 APPENDIX C...

  • Page 46: Warranty Registration

    Name and Location of Dealer ____________________________________________________________________________________ Monster Power Model Purchased ______________________________________________________ Serial Number ______________ Other Monster Power and/or Monster Cable Products Used ______________________________________________________________ 1. How did you hear about Monster Power? o Salesperson o Friend o Newspaper/Magazine Advertisement o Newspaper/Magazine Story or Review o In-Store Display o Other_____________________________ 2.
  • Page 47 5. Was this Monster PowerCenter a gift? o Yes o No 6. What was the purchase price of this unit? __________________ 7. How would you describe your experience when purchasing this product? o The salesperson was knowledgeable and helpful o The salesperson was not knowledgeable about Monster Power products o I knew exactly what I wanted and didn’t need any help with my decision o Not applicable o Other_________________________ 8.
  • Page 48 NOTES...
  • Page 49 NOTES...
  • Page 50 HTS 5000 is protected ™ under U.S. Pat. No. 5,589,718. Other Patents Pending. ”Monster“ ”Monster Cable“ ”Monster Power“ ”Clean Power“ and ”PowerCenter“ are registered and unregistered trademarks of Monster Cable Products, Inc. © Monster Cable 1999 All Rights Reserved. inv. no. 154191...
