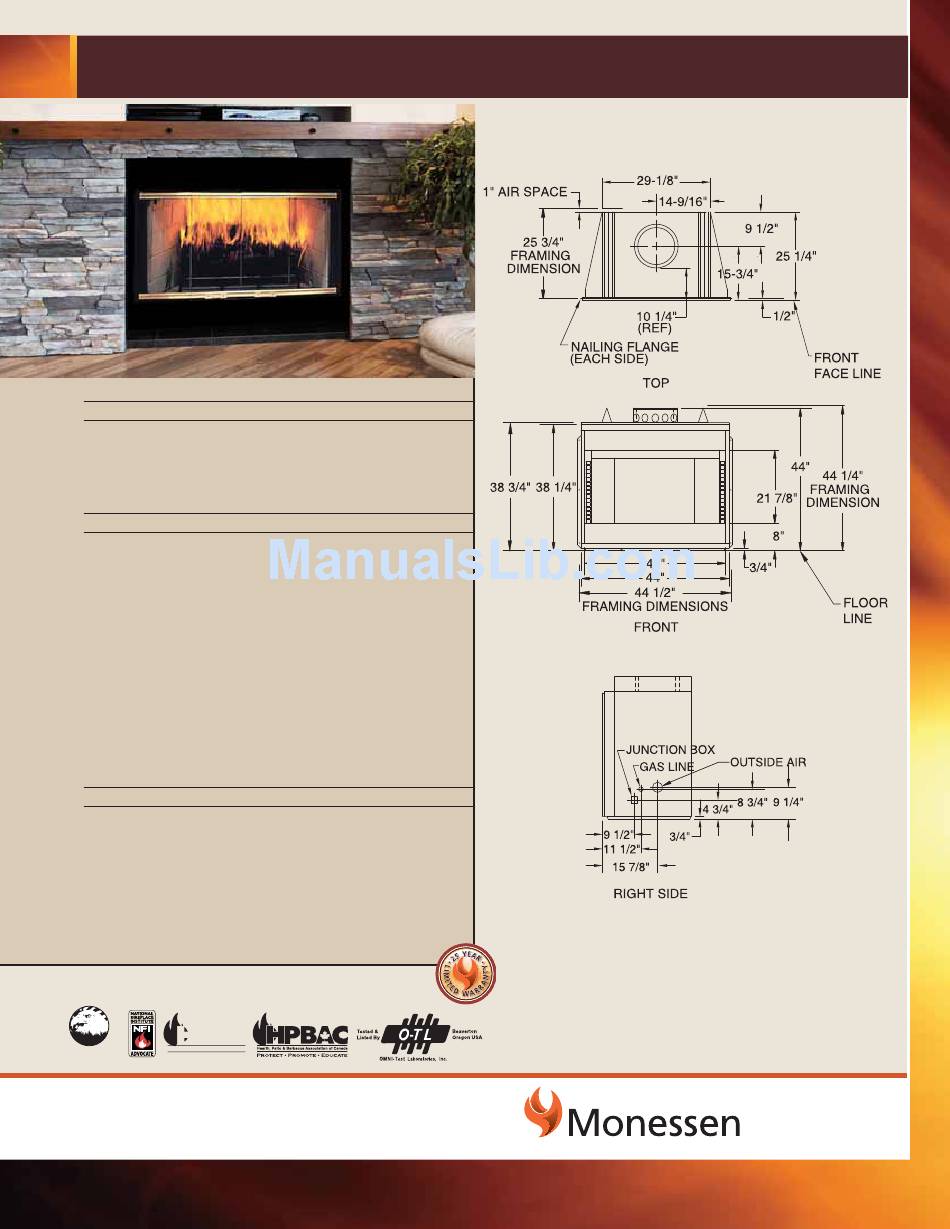

PRODUCT SPECIFICATIONS
SWB500I Wood Burning
I N T E R I O R D I M E N S I O N S
Front opening width: 42"
Front opening height: 21 7/8"
Rear wall width: 24"
Hearth Depth: 20 1/4"
T E C H N I C A L I N F O R M A T I O N
Flue Series(Std.): "S" Double Wall
Flue Size: 8" Inner; 11" Outer
Clearance to Flue: 2"
Firestop Framing**: 14-1/2" x 14-1/2"
Minimum Flue Height: 16'
Maximum Flue Height: 86'
Minimum Height with 2 Elbows: 16'
Minimum Height with 4 Elbows: 21'
Clearance to Fireplace: 3/4"
Minimum Hearth Size (D x L): 20" x 66"
OMNI Design Certified
** Clearance reduces to 1-3/4"
F I E L D I N S T A L L E D A C C E S S O R I E S
Bi-fold Glass Doors: GD42PB (Polished Brass finish), GD42B (Black),
GD42SS (Stainless)
Fan Kit: FA2 for use with MLK36
Outside Air Kit: AK4, FP4U, 403
Terminations(Std.): "S" Series SC, SCL, CF8, SQ8, LFSQT, SPC
Louver Kit: MLK36 (Can be field converted to a circulating
(louvered) unit.)
HPBA
Hearth, Patio & Barbecue Association
MADE IN U.S.A.
A Brand of Monessen Hearth Systems Co.
149 Cleveland Drive, Paris, Kentucky 40361
