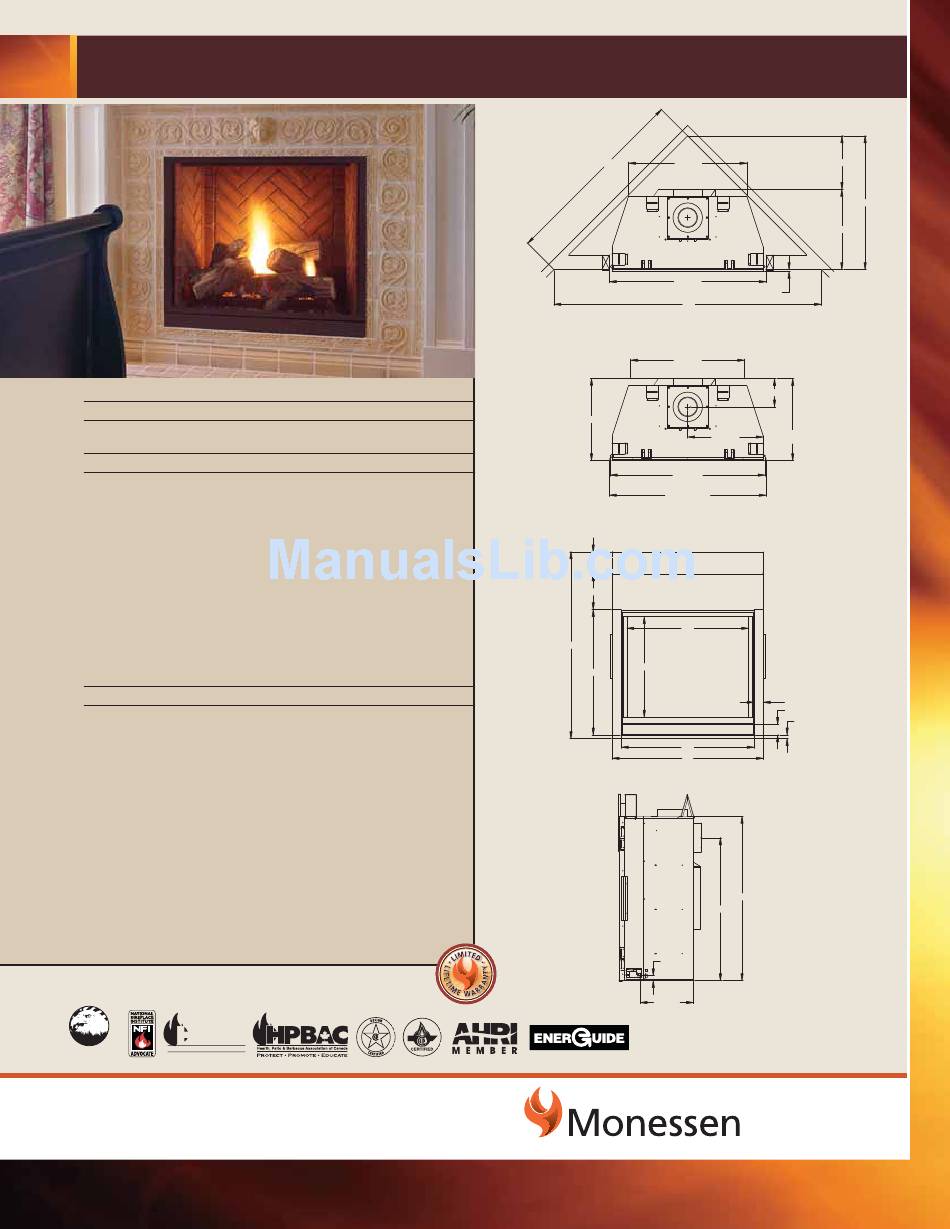

Monessen Hearth MLDV500 Winchester Product Specifications

PRODUCT SPECIFICATIONS
MLDV500 Winchester Direct Vent
G L A S S V I E W I N G A R E A
33"W x 25 13/16"H 902 Square Inches
T E C H N I C A L I N F O R M A T I O N
Max. Btu Input: 34,000 BTU/HR
Ignition System: Standing Pilot or Signature Command™ System
Gas Type: Natural or LP
Flue Type: Simpson Dura-Vent, Selkirk Metalbestos, MetalFab
Termination: Rear/Top Vent Convertible
Clearance to Flue for Interior: 3" Top 1" Bottom and Sides
Clearance to Flue for Outside Wall: 1"
Clearance to Fireplace: 0"
Minimum Vent Height Before Elbow: 12"
CSA Design Certified
F I E L D I N S T A L L E D A C C E S S O R I E S
Louvers: Brass, Pewter
Firebrick: Cottage Clay or Cottage Red
Variable Thermostat Controlled Dual Forced Air Blower (160 cfm) – BLOTSDV
Mesh Glass Cover
Ambient Technologies ™ Remote Controls and Thermostats
HPBA
Hearth, Patio & Barbecue Association
MADE IN U.S.A.
A Brand of Monessen Hearth Systems Co.
149 Cleveland Drive, Paris, Kentucky 40361
To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable
building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended
for, nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2007 Monessen Hearth Systems Co.
www.monessenhearth.com
32 1/2"
51 1/2"
42 1/2"
73"
30 7/8"
22 5/16"
20 5/8"
42 1/16"
42 1/2"
FRAMING DIM.
6"
9 11/16"
33"
50 13/16"
27 5/16"
34"
36"
41"
44 9/16"
38 3/4"
1 3/8"
14 1/2"
14 3/4"
36 1/2"
22 1/4"
1/2" OR 5/8"
7 3/4"
22 1/4"
FRAMING DIM.
2 1/2"
3 1/8"
1"
