CKDC-392V/VA/VD/VDA
CKDC-492V/VD
QQ
3 7 63 1515 0
SWITCH UNIT (X16-2850-10/11/12/13)
Ref No.
Application/Functions
IC1
LCD driver
IC2
Sensor
Q1
Key scan detect
CD PLAYER UNIT (X32-5490-00)
Ref No.
Application/Functions
IC1
Mechanism control
IC2
SW3.3V AVR
IC3
CD DSP & servo IC
IC4
BTL driver
Q2
SW
Q3
APC
Q4
SW
ELECTRIC UNIT (X34-3350-10/11)
Ref No.
Application/Functions
TE
IC1
System control IC
L 13942296513
IC4
Audio power IC
IC7
Power supply IC
IC8
Muting logic IC
IC10
E-VOL & tuner IC
IC11
Reset IC
IC12
E2PROM
Q10
BU detector
Q20
ACC detector
Q40
Muting driver foe Q223, 224
Q50
SW5V
Q51
SW
Q55
SERVO +B AVR
Q70
Surge detector
Q101
DSI illumination SW
Q102
Panel 5V SW
Q223,224
Preout muting SW
Q501
AM RF amplifier
Q502
FM RF amplifier
www
.
4

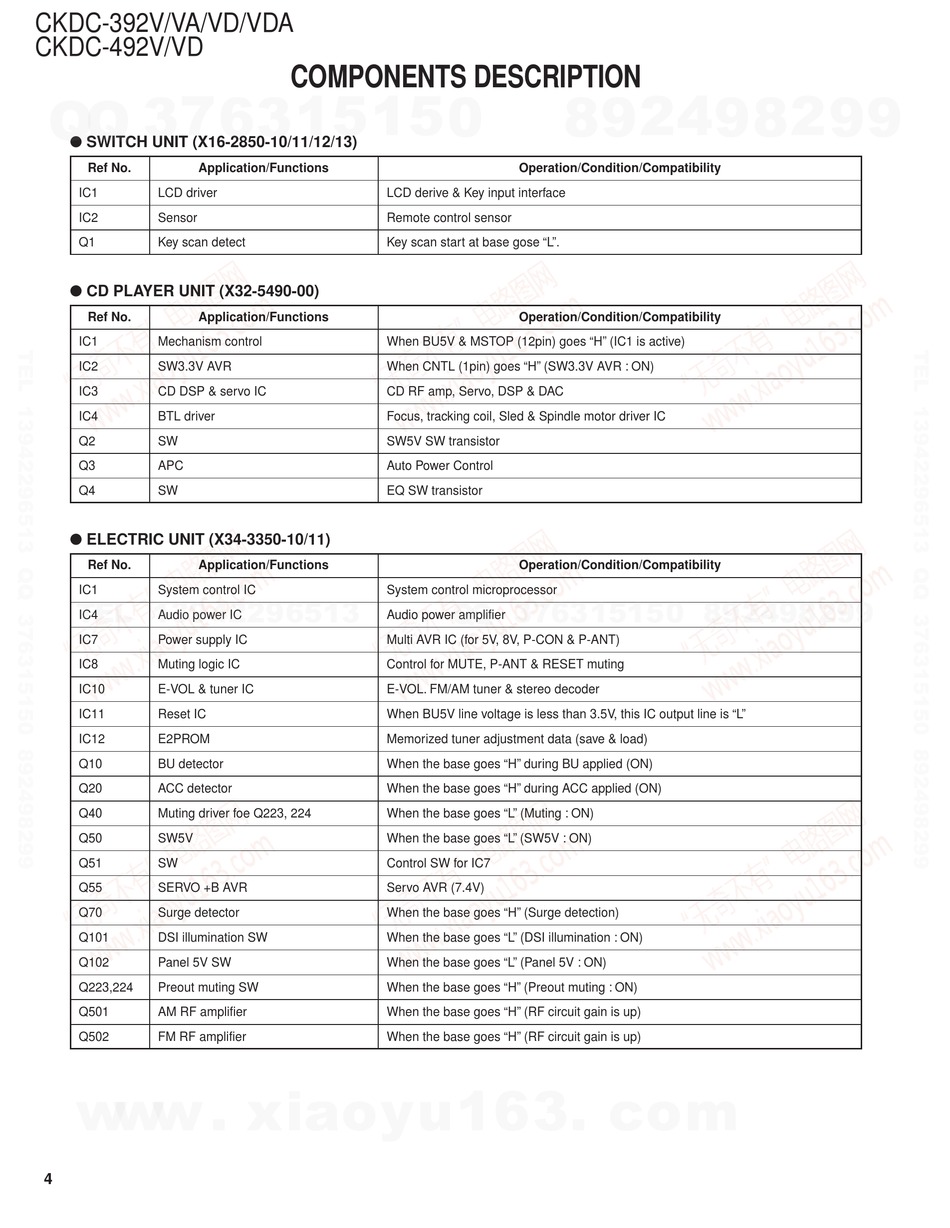

COMPONENTS DESCRIPTION

LCD derive & Key input interface
Remote control sensor
Key scan start at base gose "L".
When BU5V & MSTOP (12pin) goes "H" (IC1 is active)
When CNTL (1pin) goes "H" (SW3.3V AVR : ON)
CD RF amp, Servo, DSP & DAC
Focus, tracking coil, Sled & Spindle motor driver IC
SW5V SW transistor
Auto Power Control
EQ SW transistor
System control microprocessor
Audio power amplifier
Multi AVR IC (for 5V, 8V, P-CON & P-ANT)
Control for MUTE, P-ANT & RESET muting
E-VOL. FM/AM tuner & stereo decoder
When BU5V line voltage is less than 3.5V, this IC output line is "L"
Memorized tuner adjustment data (save & load)
When the base goes "H" during BU applied (ON)
When the base goes "H" during ACC applied (ON)
When the base goes "L" (Muting : ON)
When the base goes "L" (SW5V : ON)
Control SW for IC7
Servo AVR (7.4V)
When the base goes "H" (Surge detection)
When the base goes "L" (DSI illumination : ON)
When the base goes "L" (Panel 5V : ON)
When the base goes "H" (Preout muting : ON)
When the base goes "H" (RF circuit gain is up)
