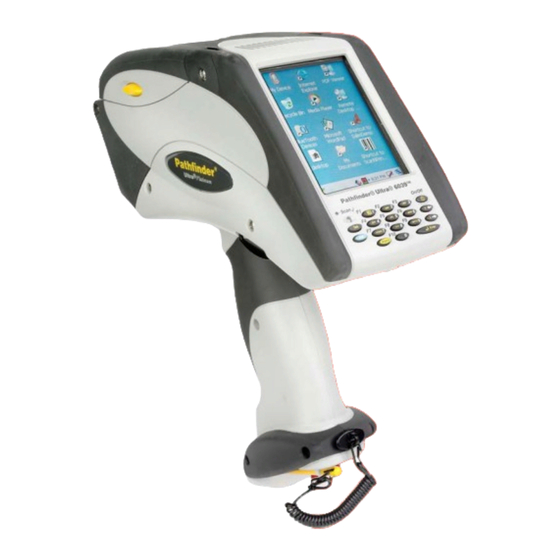

Monarch PLATINUM 6039 6039 Specifications

Monarch Pathfinder
®
Platinum
6039

Product Specification

Standard Features

Dimensions:
Height – 10.35" (263 mm)
Width – 9.2" (233 mm)
Depth – 3.5" (89 mm)
Weight – 2.25 lbs. (1 kg)
Shipping Wt. – 5.86 lbs. (2.66 kg)
Printing Method:
Thermal Direct
Printhead:
1.89" (48 mm)
203 dots/inch (8 dots/mm)
Keypad/Display:
18 keys (inc. on/off) alpha/numeric supported
Color touch screen display – ¼ VGA, 240x320 pixels
Memory:
64 MB RAM, 64 MB Flash
Optional 512 meg SD memory card
Operating System:
®
Microsoft Windows CE .NET Version 5
Communications:
USB port
Optional Symbol 802.11b compact flash radio card
or Symbol 802.11b/a flash radio card
Avery Dennison Printer Systems Division
170 Monarch Lane Miamisburg, OH 45342
1.800.543.6650 prompt 5 Fax 1.937.865.2554
Ultra
® ®
Printer
™
•
Handheld Programmable
Printer Integrated with Optional
Scanner
•
One Piece Ergonomics – Scan,
Print and Apply
•
Windows Operating System and
Touch Screen Display
•
Thermal Direct
•
Prints Receipts, Tags and
Labels
Bar Code Types:
UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5, EAN13 +2/+5,
Interleaved 2 of 5, Codabar (NW7), Code 128, Code 39,
MSI, PDF417
Standard Fonts:
Standard, TrueType® & International
Font Magnification:
1x to 7x for Bitmapped fonts
4 to 250 pt. for scalable/TrueType fonts
Printer Warranty:
One (1) year parts and labor (ship-in).
Full written warranty statement is available on request
Printhead Warranty:
Six (6) months, or one million inches (1,000,000"),
whichever occurs first
Battery and Cable Warranty:
Three (3) Months pro-rated from date of shipment.
Physical damage to the batteries or cables will not be
covered by the limited warranty
©2008 Avery Dennison. All rights reserved.
