Summary of Contents for Pride Quantum 6000Z Series

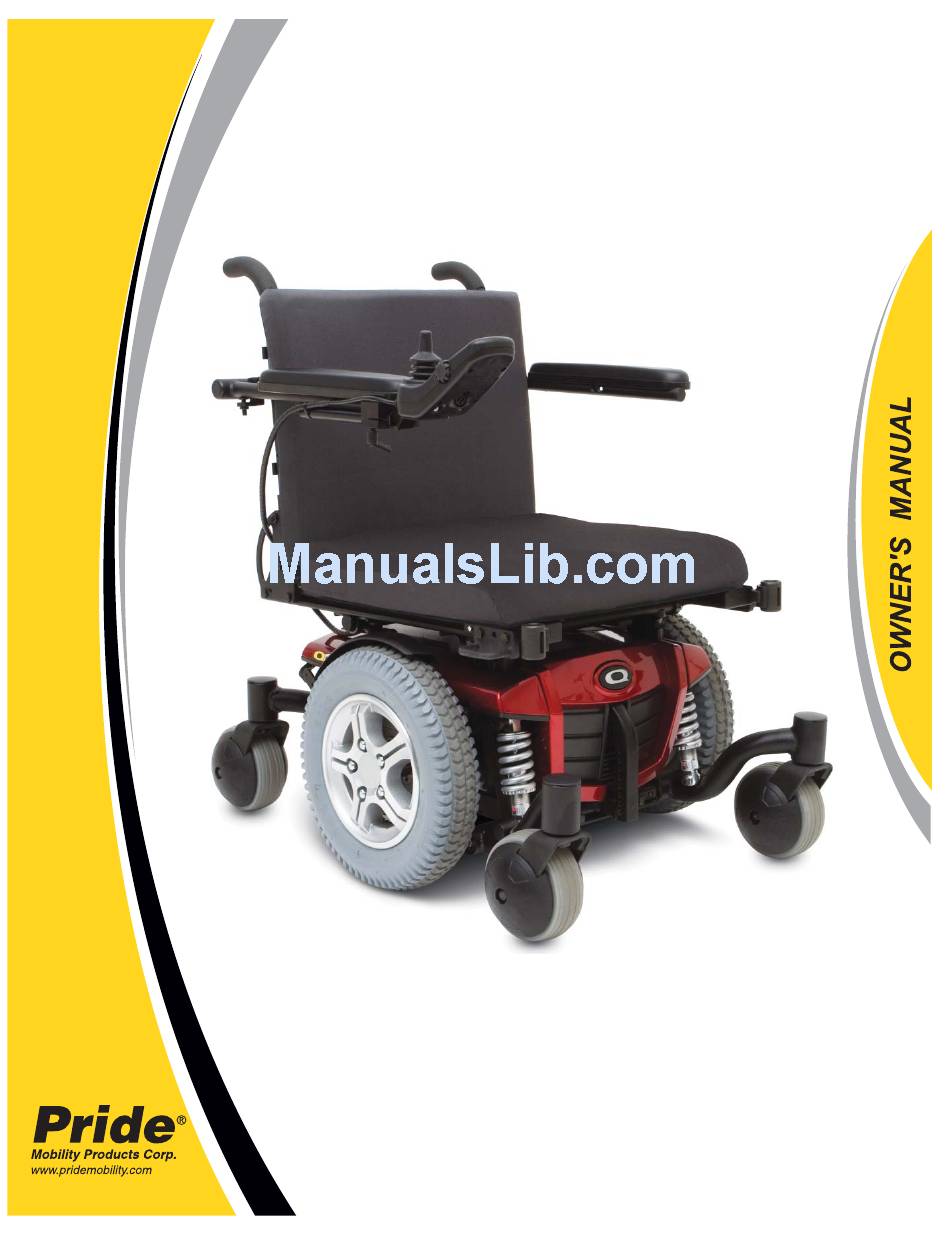

Page 1 QUANTUM 6000Z SERIES...
Page 2 On the product, this icon is represented as a black symbol with a red circle and red slash. NTENDED The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered wheelchair. EGARDING...
Page 3: Table Of Contents
Table 1. Word Variations Quantum 6000Z Series www.quantumrehab.com...
Page 4: Introduction
Beamsville, Ontario L0R 1B3 Exeter, PA 18643-2694 Canada info@pridemobility.com United Kingdom Australia: Pride Mobility Products Ltd. Pride Mobility Products Australia Pty. Ltd. 32 Wedgwood Road 20-24 Apollo Drive Bicester, Oxfordshire OX26 4UL Hallam, Victoria 3803 Australia Europe: Pride Mobility Products Europe B.V.
Page 5 Unlocked and in freewheel mode. Indicates power chair securement points. Indicates that power chair, with similarly labeled seating system, conforms to ANSI/ RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor vehicle. Quantum 6000Z Series www.quantumrehab.com...
Page 6: General Guidelines
Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.
Page 7 See ﬁ gure 1,2 and 3. SEATBACK ARMRESTS SEAT ASSEMBLY JOYSTICK CONTROLLER SEAT BASE POWER BASE ASSEMBLY CASTER WHEEL FRONT RIGGING (FOOT PLATFORM SHOWN) MANUAL FREEWHEEL LEVER CASTER WHEEL DRIVE WHEEL Figure 1. The Quantum 6000Z Series Quantum 6000Z Series www.quantumrehab.com...
Page 8 SIDE NOT SHOWN) FRONT COVER MANUAL FREEWHEEL LEVER Figure 2. The Quantum 6000Z Series Power Base Electrical Components The electrical components consist of the controller assembly, the batteries, and the motors. The batteries, motors, and controller power module (if equipped) are located on the power base assembly. The controller is located on the seat assembly.
Page 9 If the main circuit breaker continues to trip repeatedly, contact your Quantum Rehab Provider. CONTROLLER POWER MODULE CONTROLLER HARNESS QUICK RELEASE BATTERY CONNECTOR TO MOTOR CONNECTOR MAIN CIRCUIT BREAKER Figure 3. Quantum 6000Z Series Electrical Components Quantum 6000Z Series www.quantumrehab.com...
Page 10 I I I . Y O U R P O W E R C H A I R Dual Manual Freewheel Levers Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and maneuver the chair manually.
Page 11: Initial Assembly
ﬁ t. Replacement nylon insert lock nuts are available at local hardware stores or through your Quantum Rehab Provider ARMREST ANGLE ADJUSTMENT CONTROLLER POSTION SEAT HEIGHT/ANGLE ADJUSTMENT FOOT PLATFORM ANGLE ADJUSTMENT FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT Figure 6. Quantum 6000Z Series Assembly View (Synergy Seat Shown) Quantum 6000Z Series www.quantumrehab.com...
Page 12 I V. A S S E M B L Y Seat Installation SEAT LATCH It may be necessary to install the seat either prior to SAFETY initial operation or after transporting your power chair. Contour seats are attached to the power base with the UNLATCHED Universal Mounting System (UMS).
Page 13 HD option. SEAT PLATE INTERFACE BRACKET POSITIONING BELT ANCHORING BRACKET LOCATIONS (1 OF 2 SHOWN) ACTUATOR SECUREMENT BRACKETS (3 OF 4 SHOWN) Figure 10. Power Seat Actuator Figure 11. Transit System Securement Brackets Quantum 6000Z Series www.quantumrehab.com...
Page 14 V. C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may ﬁ nd the need to make some adjustments to increase your comfort, such as seat height and angle, armrest width, armrest angle and height, foot platform height, depth, and angle, and controller position.
Page 15 Figure 14. Seatback/Armrest Adjustment 1. Remove the adjusting screws from each seat hinge. See ﬁ gure 14. 2. Set the seatback at the desired angle. 3. Reinstall the adjusting screws to each seat hinge and tighten. Quantum 6000Z Series www.quantumrehab.com...
Page 16: Your Power Chair
V. C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair.
Page 17: Comfort Adjustments
1. Flip up the foot platform and locate the screw. See ﬁ gure 16. 2. Turn the screw to raise or lower the front of the foot platform. FOOT PLATFORM BRACKET HARDWARE SCREW Figure 16. Foot Platform Adjustment Quantum 6000Z Series www.quantumrehab.com...
Page 18 V. C O M F O R T A D J U S T M E N T S Positioning Belt Your power chair may be equipped with a positioning belt that can be adjusted for operator comfort. See ﬁ gure 17. The positioning belt is designed to support the operator so that he/she does not slide down or forward in the seat.
Page 19: Batteries And Charging
PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied.
Page 20 V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries using the off-board charger: 1. Position the front of your power chair next to a standard electrical outlet.
Page 21 Your power chair will be ready each morning to give you a full day’s service. It is recommended that you charge the batteries at least 8 to 14 hours after daily use. Pride recommends that you charge the batteries for an additional 4 hours after the battery charger indicates that charging is complete.
Page 22 V I . B A T T E R I E S A N D C H A R G I N G It might take a few days for the temperature of the battery to stabilize and adjust to its new ambient temperature. More importantly, it will take a few “charging cycles”...
Page 23: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 6000Z Series is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Provider.
Page 24 V I I . C A R E A N D M A I N T E N A N C E  All wheel bearings are prelubricated and sealed. They require no subsequent lubrication.  The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
Page 25 WARNING! When changing a tire, remove only the ﬁ ve lug nuts, then remove the wheel. If any further disassembly is required, deﬂ ate the tire completely or it may explode. Quantum 6000Z Series www.quantumrehab.com...
Page 26 LUG NUTS Figure 19. Quantum 6000Z Series Drive Wheel Figure 20. Quantum 6000Z Series Drive Wheel Disassembled Follow these easy steps for a quick and safe repair for both pneumatic and solid tires: 1. Turn off the power to the controller.
Page 27 Connect Red wires to Red Positive (+) Terminal Posts. Connect Black wires to Black Negative (–) Terminal Posts. FRONT COVER REAR SHROUD REAR SHROUD FASTENER (OPPOSITE SIDE NOT SHOWN) RELEASE HANDLES REAR BATTERY FRONT BATTERY Figure 21. Battery Installation Quantum 6000Z Series www.quantumrehab.com...
Page 28 V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Turn off the power to the controller. 2. Make sure that the power chair is in drive mode. See III. “Your Power Chair.”. 3.
Page 29 N O T E S Quantum 6000Z Series www.quantumrehab.com...
Page 30 N O T E S www.quantumrehab.com Quantum 600Z Series...
Page 32 Quantum 6000Z Series Serial #...
