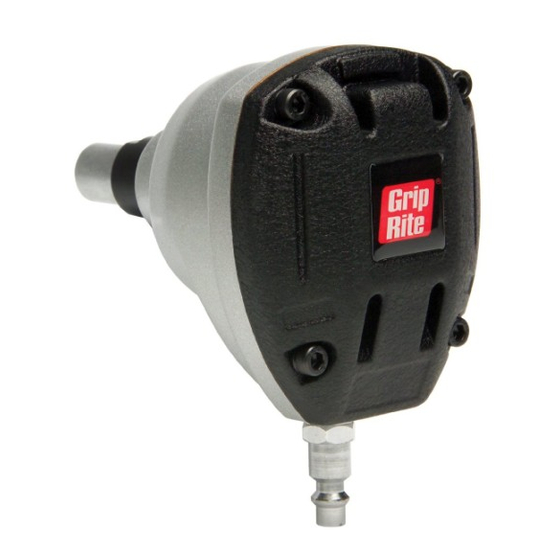

- Page 1 OPERATOR’S MANUAL AND PARTS LIST MODEL GRTPN600 PALM NAILER Tough as nails Distributed By www.grip-rite.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS SPECIFICATIONS TABLE OF CONTENTS -------------------------------- 2 SPECIFICATIONS --------------------------------------- 3 MODEL GRTPN600 SAFETY ---------------------------------------------------- 4 FASTENER LENGTH 2’ - 6” (51 MM - 153 MM) TOOL PARTS --------------------------------------------- 6 FASTENER HEAD DIA. 7/16” (11 mm) PARTS DESCRIPTION --------------------------------- 7... -
Page 3: Safety
SAFETY SAFETY SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS WEAR SAFETY GLASSES USE THE CORRECT FASTENERS FOR THE APPLICATION. Always wear safety glasses with side shields that meet ANSI Using the wrong fasteners can cause the workpiece to split and allow the Z87.1 requirements when operating the tool. Make sure all fastener to fly free. -
Page 4: Tool Parts
DESCRIPTION DESCRIPTION PART DESCRIPTIONS TOOL PARTS Nail Guide - Narrow profile design permits accurate nail placement. Tool Body - Contains nail driver parts and acts as a handgrip. Tool Cap - Covers nail driver assembly. Cap Screw - Secures cap to tool body Air Coupling - Quick-disconnect male coupling allows quick connection to air hose. -
Page 5: Operation
OPERATION OPERATION LOADING FASTENERS OPERATION 1. Hold the tool securely using LOADING INSTRUCTIONS the housing as a handgrip. Do WARNING not depress tool nose until tool is in driving position and you are ready to drive a nail. The model GRTPN Palm Nailer is automatically actuated when the nail in the nose is pressed against the work surface. - Page 6 GRTPN400 PARTS SCHEMATIC GRTPN400 PARTS LIST Item# Part # Description Q’ty GRTN3470 Guide Box GRTN3480 PU Seal GRTN3490 Guide Bushing GRTN3500 Spring GRTN3510 Plug GRTN3520 Gun Body GRTN3530 Gasket GRTN3540 Bumper GRTN3550 O-Ring GRTN3560 Driver GRTN3570 Piston GRTN3580 O-Ring GRTN3590 Head Valve Piston GRTN3600 Cylinder...
-
Page 7: Maintenance
MAINTENANCE TROUBLESHOOTING TOOL TROUBLESHOOTING MAINTENANCE DANGER DANGER Always disconnect tool from air supply before performing any service on Always disconnect tool from air supply before performing any service on tool. Correcting a problem while the tool is pressurized may result in tool. -
Page 8: Warranty
Should any mechanical problems develop during the life of your Pneumatic nailers, staplers & compressors marketed under the equipment the following options are available for service and parts: GRIP RITE brand are warranted to be free from defects in work- manship & materials (except rubber o-rings, bumpers, seals, driver •... - Page 9 USE GENUINE GRIP-RITE® FASTENERS FOR BEST PERFORMANCE www.grip-rite.com GRTPN6000MAN...
