Handle Assembly - Kenmore 116.30412 Owner's Manual

Hide thumbs

Advertisement

Table of Contents
Electrical
Shock Hazard
Do not plug into the electrical sup-
ply until the assembly
is complete.
Failure to do so could result in elec-
trical shock or injury.
Before assembling
vacuum, check the
PACKING LIST on the cover of the separate
Repair Parts List. Use this list to verify that
you have received all the components
of
your new Kenmore vacuum,
Remove the tape located betow the dust
cover/filter cover on the motor case_
Tape
Attach
stretch hose
end to noz-
zle as
shown°

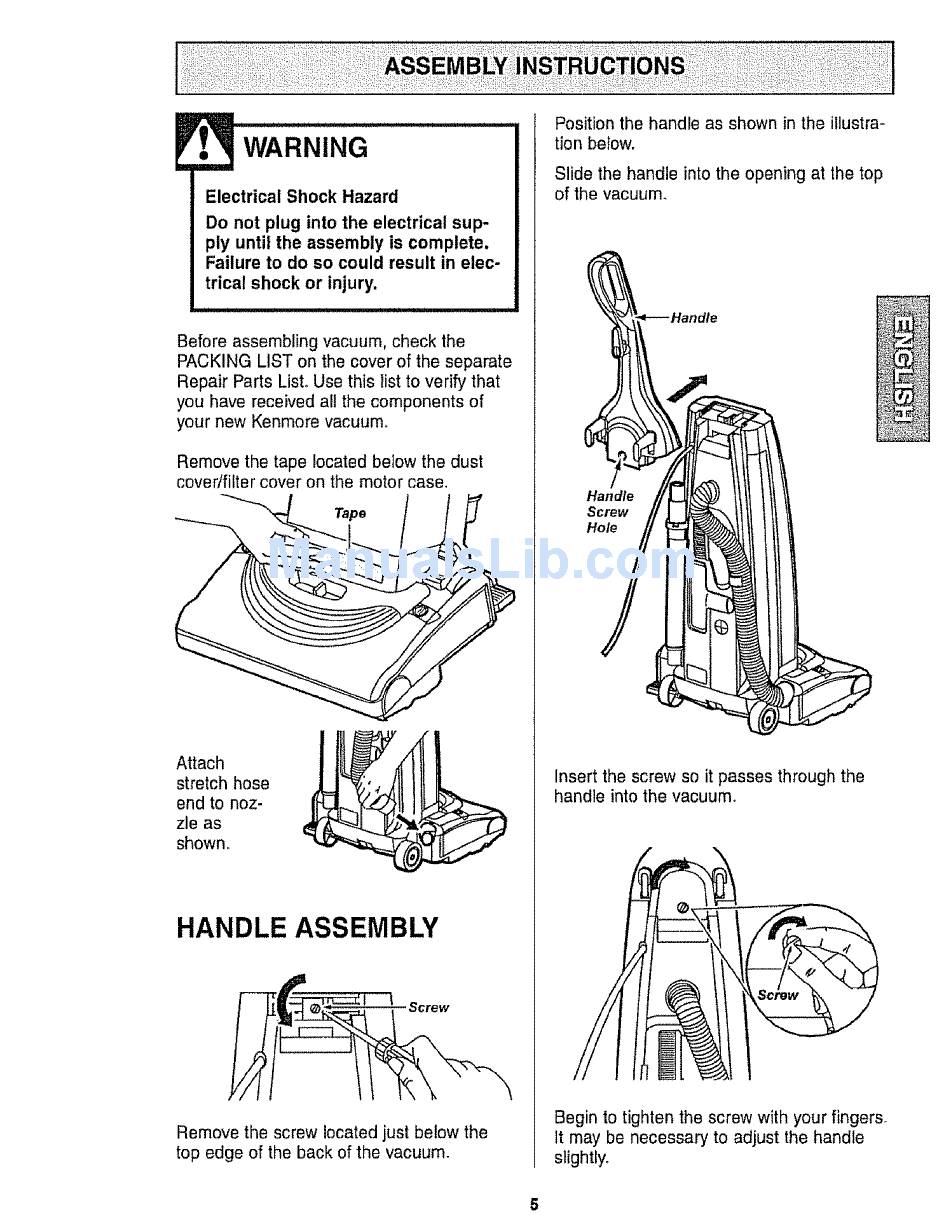

HANDLE ASSEMBLY
Remove the screw located just below the
top edge of the back of the vacuum_
Position the handle as shown in the illustrm
tion below.
Slide the handle into the opening at the top
of the vacuum_
Handle
Screw
Hole
Insert the screw so it passes through the
handle into the vacuum°
Begin to tighten the screw with your fingers.
It may be necessary
to adjust the handle
slightly.
