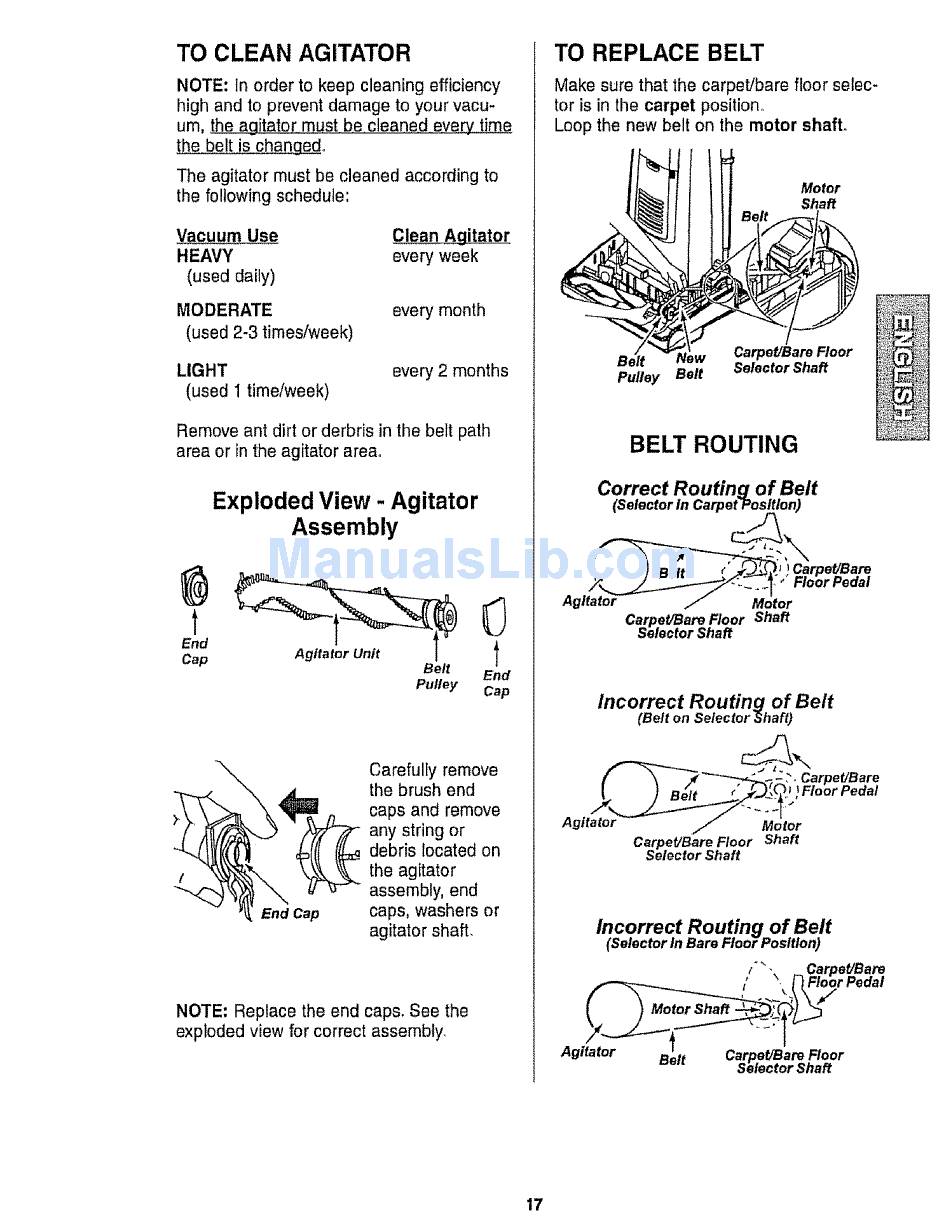

TO CLEAN AGITATOR
NOTE: In order to keep cleaning
efficiency
high and to prevent damage
to your vacu-
um, the agitator must be cleaned every time
the belt is chan eo__dd,
The agitator must be cleaned according to
the following schedule:
Vacuum Use
HEAVY
(used daily)
MODERATE
(used 2-3 times/week)
Clean Agitator
every week
every month
LIGHT
(used 1 time/week)
every 2 months
Remove ant dirt or derbris in the belt path
area or in the agitator area.
End
Cap
Exploded View - Agitator
Assembly
Agitator
Unit
I
Belt
End
Pulley
Cap
\
End Cap
Carefully
remove
the brush end
caps and remove
any string or
debris located on
the agitator
assembly, end
caps. washers or
agitator shaft,
NOTE: Replace the end caps. See the
exploded view for correct assembly,
TO REPLACE BELT
Make sure that the carpet/bare
floor selec-
tor is in the carpet position,
Loop the new belt on the motor
shaft.
,f
Belt
_w
Pulley
Belt
I
Motor
Shaft
Carpet/Bare Floor
Selector Shaft
BELT ROUTING
Correct Routing of Belt
(Selector In Carpet Posltlon)
Agl__!:
_ Floor Pedal
Carpet/Bare Floor Shaft
Selector Shaft
Incorrect
Routing
of Belt
(Belt on Selector Shaft)
" Carpet/Bare
iFloor Pedal
Agitator
Motor
Carpet/Bare
Floor
Shaft
Selector
Shaft
Incorrect Routingof
Belt
(Selector m uare Floor e'osttlon)
/ _._
Carpet!Bare
_'
, ['} Floor Pedal
Agitator
Belt
Carpet/Bare Floor
Selector Shaft
17
