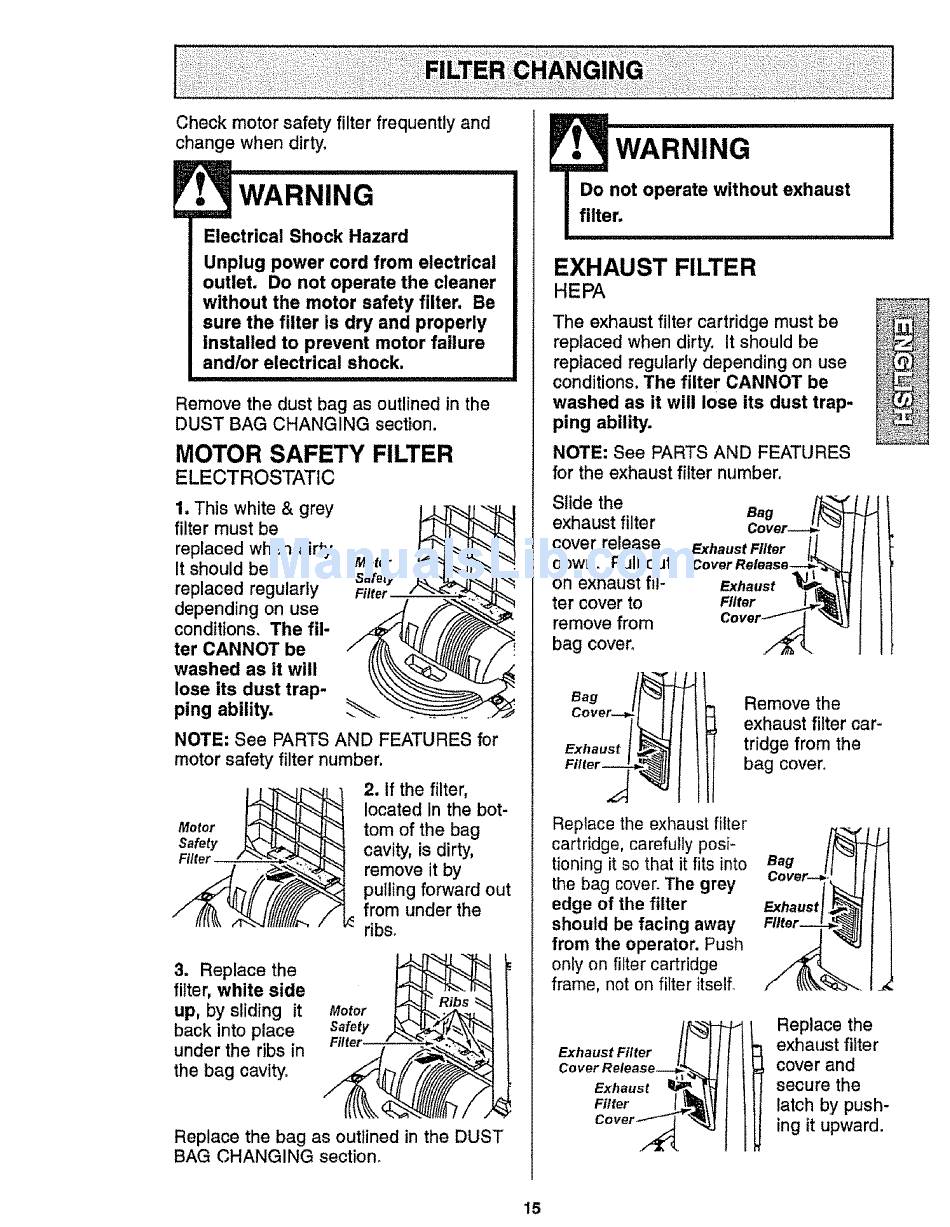

Check motor safety filter frequently and
change when dirty.
WARNING
Electrical Shock Hazard
Unplug power cord from electrical
outlet. Do not operate the cleaner
without the motor safety filter. Be
sure the filter is dry and properly
installed to prevent motor failure
and/or electrical shock.
Remove the dust bag as outlined in the
DUST BAG CHANGING section.
MOTOR SAFETY FILTER
ELECTROSTATIC
1. This white & grey
filter must be
replaced when dirty.
It should be
replaced regularly
depending on use
conditions, The fil-
ter CANNOT be
washed as it will
lose its dust trap-
ping ability.
Motor
safety
Filter
" "_
NOTE: See PARTS AND FEATURES for
motor safety filter number.
Filter_
z -,.-._ _
I
2. If the filter,
located in the bot-
tom of the bag
cavity, is dirty,
remove it by
pulling forward out
from under the
ribs,
3. Replace
the
filter, white side
up, by sliding
it
back into place
under the ribs in
the bag cavity=
Motor
Safety
Replace
the bag as outlined
in the DUST
BAG CHANGING
section,
WARNING
EXHAUST FILTER
HEPA
The exhaust filter cartridge must be
replaced when dirty, It should be
replaced regularly depending on use
conditions. The filter CANNOT be
washed as it will lose its dust trap-
ping ability.
NOTE: See PARTS AND FEATURES
for the exhaust filter number°
Slide the
exhaust filter
cover
release
down_ Pull out
on exhaust fil-
ter cover to
remove from
bag cover,
Bag
Cover---_
"_
Exhaust Filter
/ !
Cover Release--_" _
Exhaust
Filter
Cover /
Bag
Exhaust
Remove
the
exhaust
filter car-
tridge from the
bag cover.
Replace the exhaust filter
cartridge,
carefully posi-
tioning it so that it fits into
the bag cover. The grey
edge of the filter
should
be facing
away
from the operator.
Push
only on filter cartridge
frame, not on filter itself.
/rot
Exhaust
Filter
H
} J
Cover
"
Exhaust
_
cover._,
_"_4J
Cover--€,-"
I 1
Exhaust[
__
Replace the
exhaust filter
cover and
secure the
latch by push-
ing it upward.
