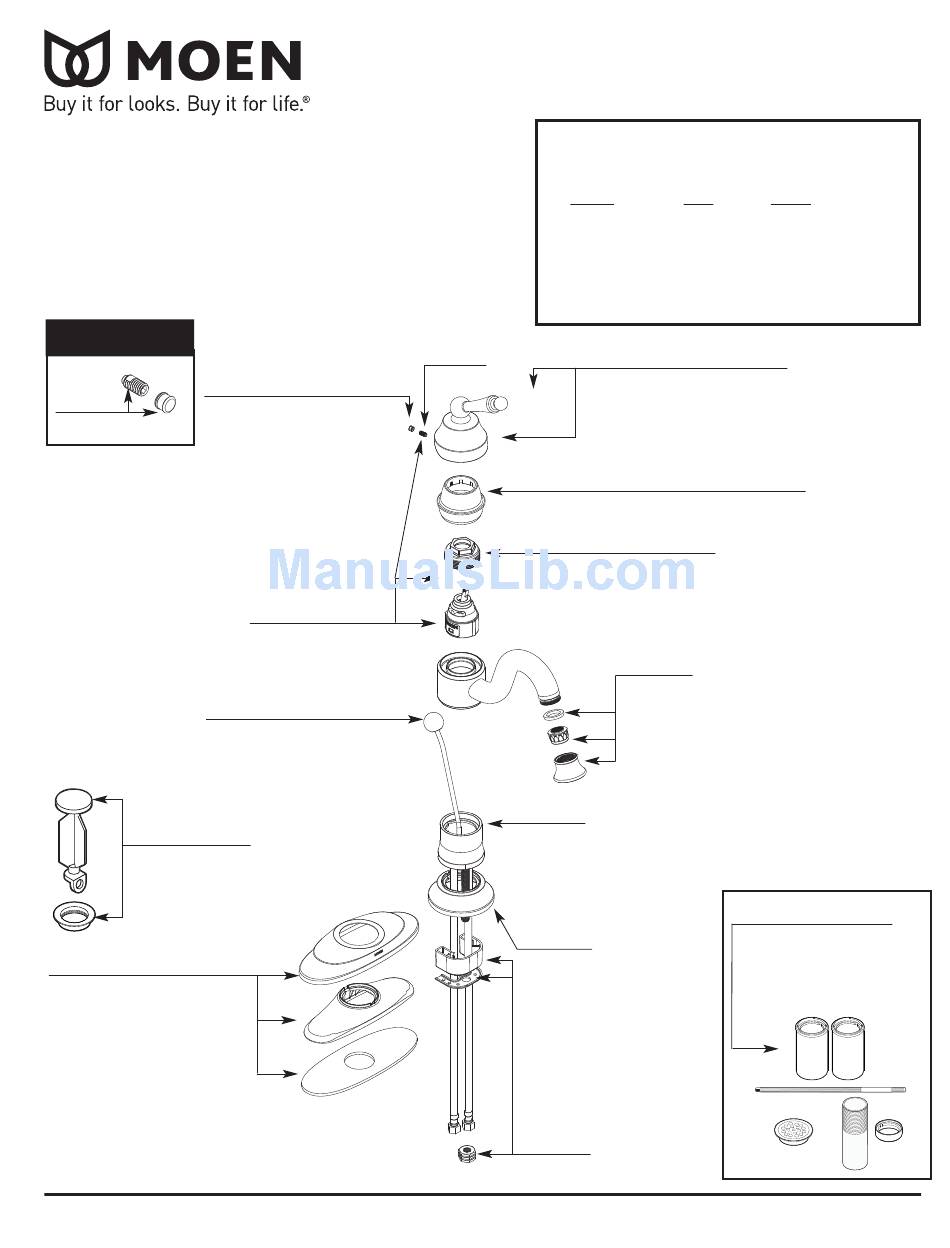

Moen Waterhill S411BN Illustrated Parts List

There is more than 1 version of this model.
Page down to identify the version you have.
n Order by Part Number
HANDLE PLUG BUTTON
PRIOR TO 1/2011
Plug Button
Plug
Button Kit
152859
137403
152859CSL
152859WR
152859NL
152859ORB Oil Rubbed Bronze

Lift Rod Kit

116619
116619BN
116619WR
116619NL
116619ORB Oil Rubbed Bronze
Pop-Up Plug & Seat
10709 Chrome
10709BN Brushed Nickel
10709NL Nickel
10709ORB Oil Rubbed Bronze
10709WR Wrought Iron

Deck Plate

116622 Chrome
116622BN Brushed Nickel
116622WR Wrought Iron
116622NL Nickel
116622ORB Oil Rubbed Bronze
Rev. 3/11
Chrome
Brushed Nickel
Wrought Iron
Nickel
Cartridge, Cartridge Nut
and Set Screw
1255
Chrome
Brushed Nickel
Wrought Iron
Nickel
I l l u s t r a t e d P a r t s

One-Handle Lavatory Faucet

MODEL
S411
S411BN
S411WR
S411NL
S411ORB
Set Screw
155023
Cartridge Nut
Note: Must change nut with cartridge
144266
Spout Hub
116620 Chrome
116620BN Brushed Nickel
116620WR Wrought Iron
116620NL Nickel
116620ORB Oil Rubbed Bronze
Escutcheon
116627 Chrome
116627BN Brushed Nickel
116627WR Wrought Iron
116627NL Nickel
116627ORB Oil Rubbed Bronze

Hardware Kit

146190
TO ORDER PARTS CALL: 1-800-BUY-MOEN
WATERHILL™
TYPE FINISH
Lever Chrome
Lever Brushed Nickel
Lever Wrought Iron
Lever Nickel
Lever Oil Rubbed Bronze
Handle Kit
146188 Chrome
146188BN Brushed Nickel
146188WR Wrought Iron
146188NL Nickel
146188ORB Oil Rubbed Bronze

Handle Dome

146189 Chrome
146189BN Brushed Nickel
146189WR Wrought Iron
146189NL Nickel
146189ORB Oil Rubbed Bronze
Aerator Kit
(1.5 gpm)
101029 Chrome
101029BN Brushed Nickel
101029WR Wrought Iron
101029NL Nickel
101029ORB Oil Rubbed Bronze
Vessel Extension Kit
Not Included with Faucet
S115
S115BN
S115WR
S115NL
S115ORB
www.moen.com
Chrome
Brushed Nickel
Wrought Iron
Nickel
Oil Rubbed Bronze
